• Model NO.：LF6040
• Structure Type：Gantry Type
• Laser Classification：Solid Laser
• Laser Technology：Laser Vapor Cutting
• Working Area：600*400mm
• Transport Package：Wooden Boxes
• Specification：working size: 600*400mm
• Trademark：Lansen
• Origin：China
• HS Code：8456110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. LF6040 Structure Type Gantry Type Laser Classification Solid Laser Laser Technology Laser Vapor Cutting Working Area 600*400mm Transport Package Wooden Boxes Specification working size: 600*400mm Trademark Lansen Origin China HS Code 8456110090 Production Capacity 300sets/Month

Product Description

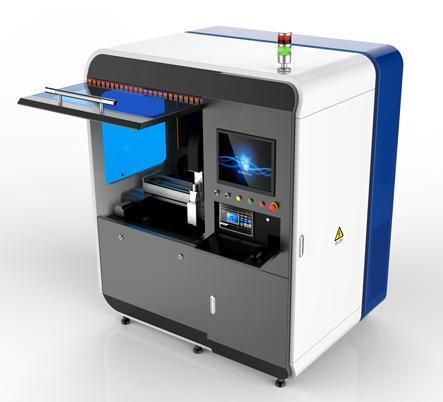

1000W Mini 6040 Raycus source Metal Fiber Laser Cutting Machine


Features:

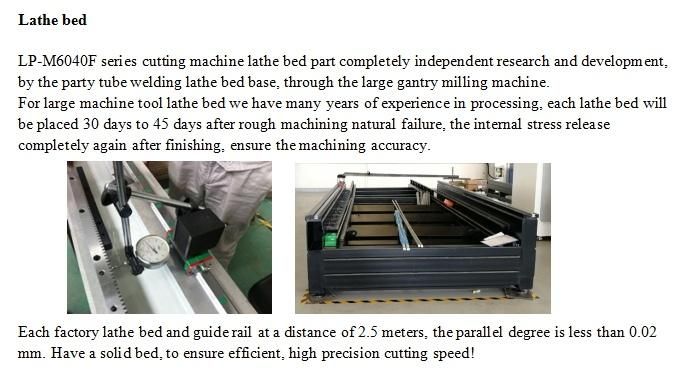

LP-M6040F series cutting machine lathe bed part completely independent research and development, by the party tube welding lathe bed base, through the large gantry milling machine.
For large machine tool lathe bed we have many years of experience in processing, each lathe bed will be placed 30 days to 45 days after rough machining natural failure, the internal stress release completely again after finishing, ensure the machining accuracy.


Widely used in glasses, electronics, appliances and other precision machinery, hardware, microelectronics industry.

Parameters:

Equipment	Fiber Laser Cutting machine
Model	LF6040
Laser Power	500W/750W/1000W/1500w
Max Speed	60m/min

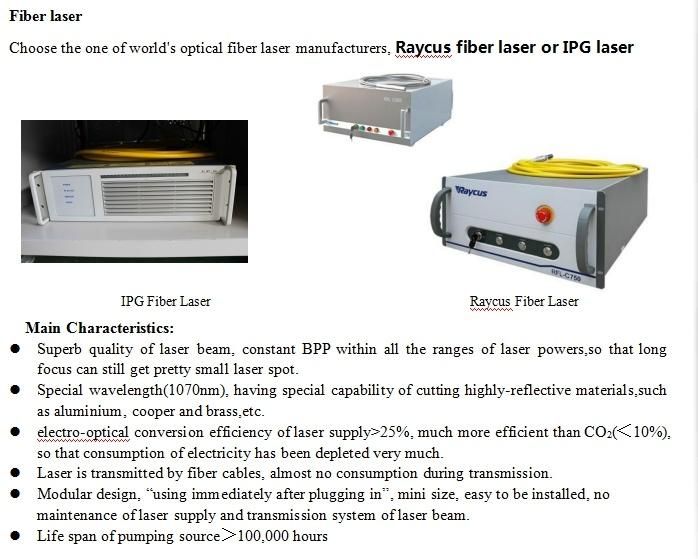

WaveLength	1060 nm
Minimum Cutting Line Width	0.015mm
Rated Out power	50--500W /50-750W /50-1000W
Repeat positioning accuracy (X,Y)	≤±0.015mm
Table Repeat positioning accuracy	≤±0.015mm
Max load weight	100KG
Work size	600*400mm,
Equipment Power	6--10KW
Water Chiller	1kw
Voltage	220±10%
Red dot pointer	With
Assistant gas	Air, O2, N2

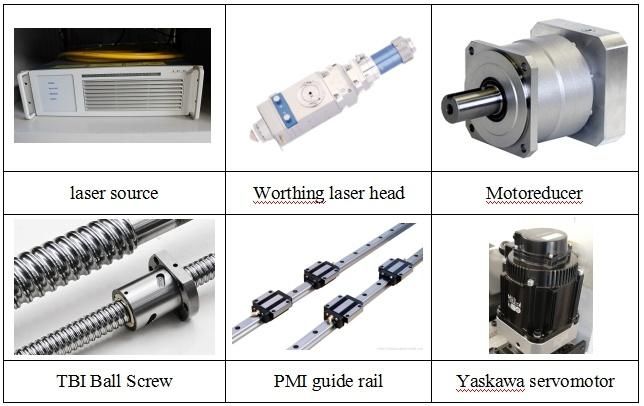

 Machine details:




Warranty:1. InstallationAfter the machine reach the buyer's site,the engineers from the seller are responsible for machine installation and commissioning by using the special tools under the help of the buyer. And then start training the workers. Tickets, hotel and food charge need to afford by buyers
2. Training

• The common protection knowledge of laser safety
• The basic principle of laser module and the structure of laser cutting machine
• The operation skills of fiber laser cutting machine
• Equipment operation and the application notice
• Skills of equipment daily maintenance,laser module adjustment and spare parts replacement.
• Training time is about 5 to 10 days.

3. After sales service     · 2 year warranty for the whole machine     · 2 years warranty for the fiber laser source     · Life-long maintenance    · In the warranty period,if it break down or some parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free,the parts need to be replaced will be provided from seller for free(Except the Consumable parts).     · After the warranty period expired,the buyer only need to pay the actual maintenance cost.     · Lansen will pay a return visit all customers for several times one year,and will provide technical support service anytime, and also provide spare parts anytime the buyer want.      · After sales service response time: quick response within 8 working hours, after receive the repair call, our after sales engineer will reply as soon as possible.  About us:
