1000W 1500W CNC Metal Fiber Laser Cutting Machine for Metal/Stainless Steel/Copper/Aluminum
Jinan Huaxia Machinery Equipment Co., Ltd.- After-sales Service：Includes
- Warranty：3 Years
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
Base Info
- Model NO.：HXF3015
- Structure Type：Desktop
- Laser Classification：Fiber Laser
- Laser Technology：Laser Cutting
- Laser Power：1000W 1500W 2000W
- Laser Head：Shanghai Empower
- Control System：China Cypcut
- Motor and Drive：Japan Yaskawa 850W
- Reducer：Japan Shimpo
- Pneumatic Parts：Korea
- Water Chiller：Cw6200
- Transport Package：Plywood Case After Packed by Wrapping Film
- Specification：1500*3000mm
- Trademark：HuaXia
- Origin：China
- HS Code：8456110090
- Production Capacity：30 Sets,Month
Description
9000*5000MM

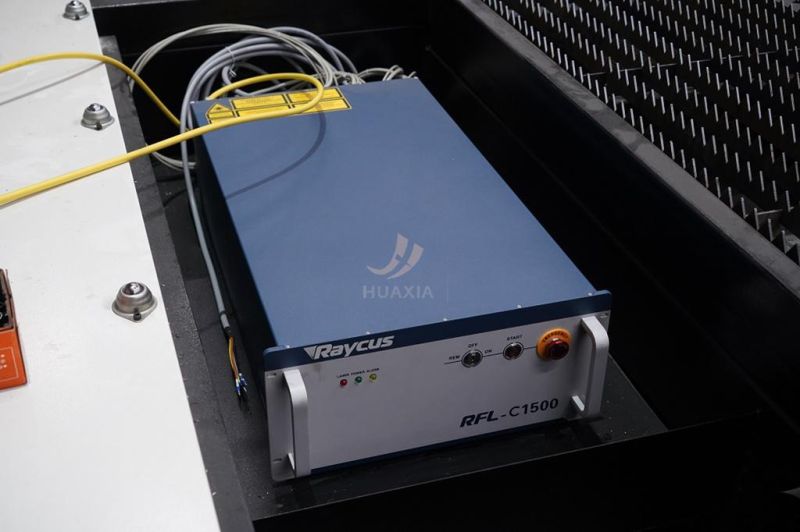

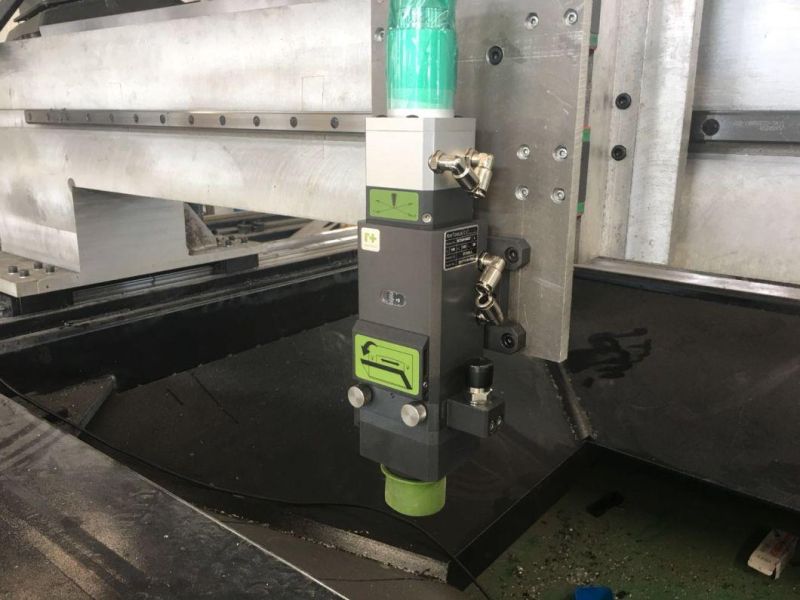

Fiber Laser Source, used IPG, Raycus or MAX laser, with better performance, ultra-low noise, high stability and ultra-long lifetime for 100000 hours.Raytools Fiber Laser Cutting Head with anti-crash function, good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system can protect good cutting qualiy and longer the life of lens.

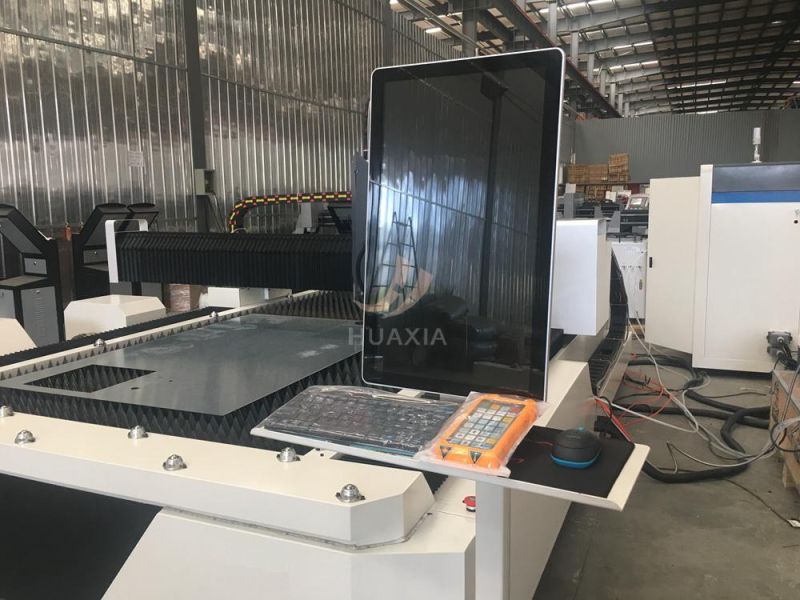

Control panel, you can design the patterns you want here. Or you can import patterns via USB flash drive.

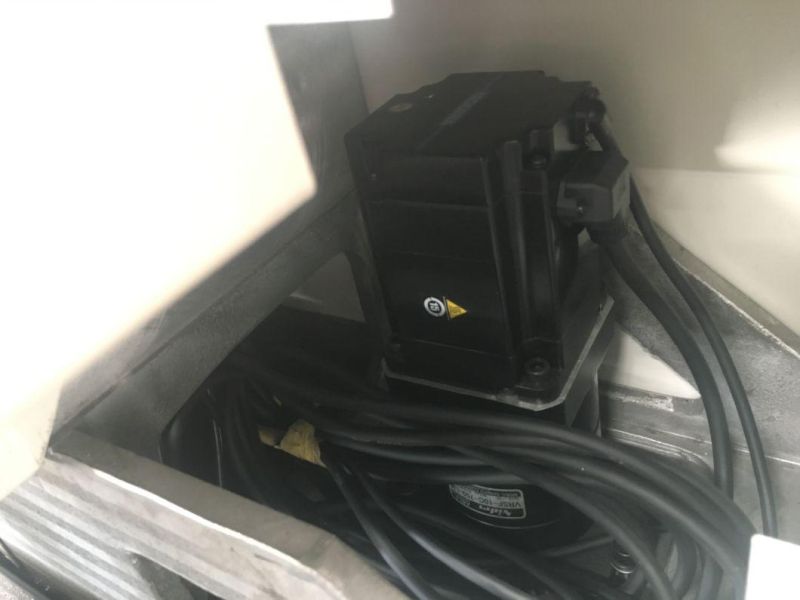

Equip with Cypcut or NC-Studio (Weihong) control system, Chinese top brands. Integrated special function module for laser cutting control, powerful, good man-machine interface and easy operation.Servo Motor Brand:Japan Yaskawa Servo Motor and Driver

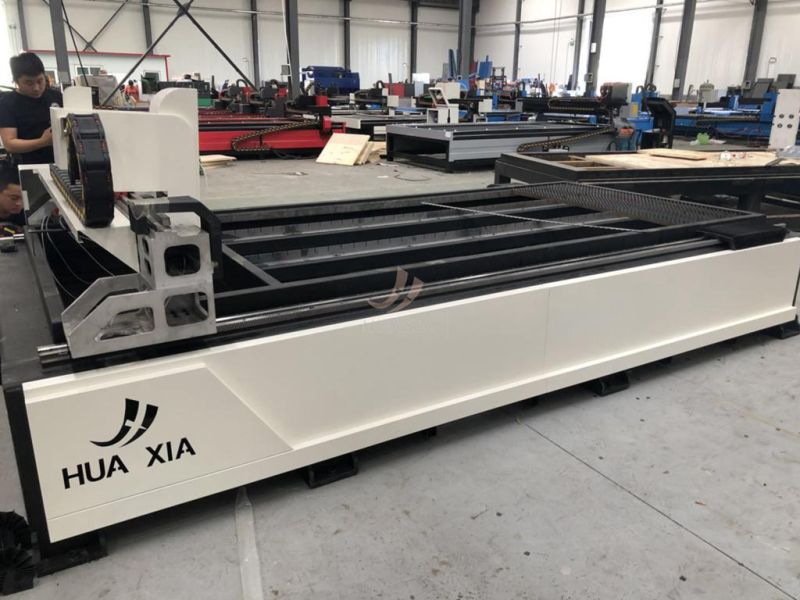

Sturdy plate-welding and tempered heavy machine body, for cutting metal sheets.

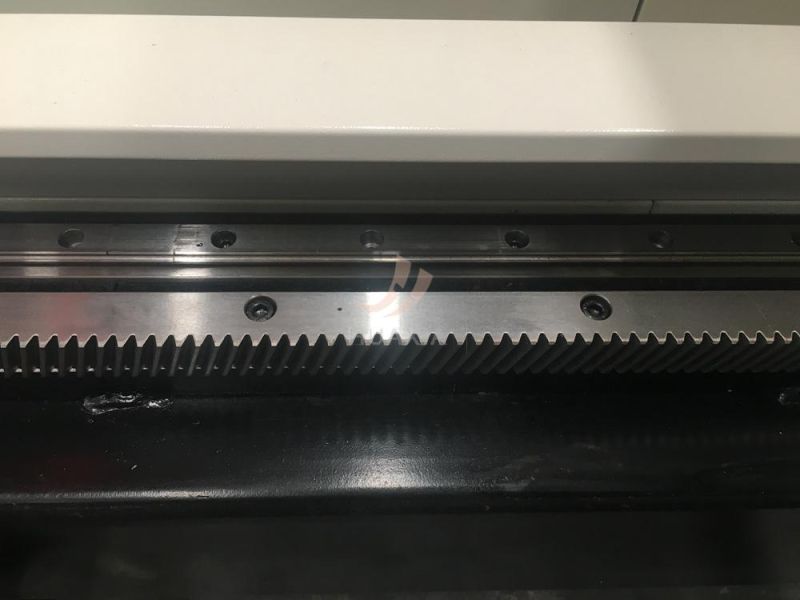

Gantry: Aluminum alloy die pressure casting, watering integrated beam. Has the advantages of light and stable structure, energy saving, light weight, small inertia and good dynamic performance.Imported high performance reducer, gear and rack.

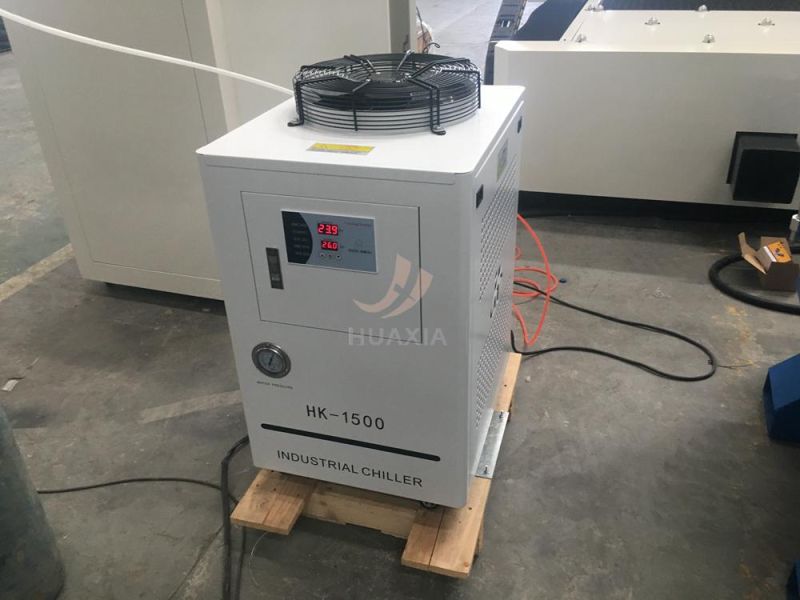

Water Chiller, dual-temperature, cooling for laser source and laser head.
Using high-pressure electrostatic spray treatment, the appearance is elegant and unique, and durable.
The control system adopts liquid crystal Chinese and English conversion computer controller, fully automatic control, simple and intuitive operation.
With automatic fault diagnosis function, the fault point is directly displayed on the screen, prompting the user to process quickly.
Fiber Laser Source, used IPG, Raycus or MAX laser, with better performance, ultra-low noise, high stability and ultra-long lifetime for 100000 hours.Raytools Fiber Laser Cutting Head with anti-crash function, good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system can protect good cutting qualiy and longer the life of lens.Control panel, you can design the patterns you want here. Or you can import patterns via USB flash drive.Equip with Cypcut or NC-Studio (Weihong) control system, Chinese top brands. Integrated special function module for laser cutting control, powerful, good man-machine interface and easy operation.Servo Motor Brand:Japan Yaskawa Servo Motor and Driver
- Real-time auto-gain tuning
- Manual and auto notch filters
- Manual and auto damping filters
- Setup software with motion simulation
- New structure
- innovative core
- high-precision encoder
- Complies with European safety standards
- Low interference
Sturdy plate-welding and tempered heavy machine body, for cutting metal sheets. Gantry: Aluminum alloy die pressure casting, watering integrated beam. Has the advantages of light and stable structure, energy saving, light weight, small inertia and good dynamic performance.Imported high performance reducer, gear and rack.
Water Chiller, dual-temperature, cooling for laser source and laser head. Using high-pressure electrostatic spray treatment, the appearance is elegant and unique, and durable.
The control system adopts liquid crystal Chinese and English conversion computer controller, fully automatic control, simple and intuitive operation.
With automatic fault diagnosis function, the fault point is directly displayed on the screen, prompting the user to process quickly.
Application area

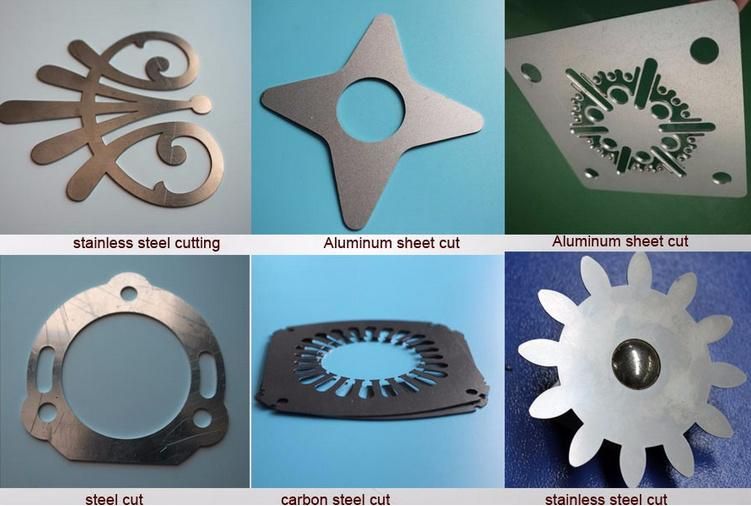

Widely used for :sheet metal cutting, pipe (needs to add another tube cutting device):stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum steel, manganese, all kinds of alloy plate,rapid processing and so on.
Widely used in: Electrical power, auto parts, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising decoration, car decoration, sheet metal chassis cabinets, hardware, lighting, display equipment, precision parts, all kinds of metal cutting industry etc.
