• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：71*51*71cm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 71*51*71cm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

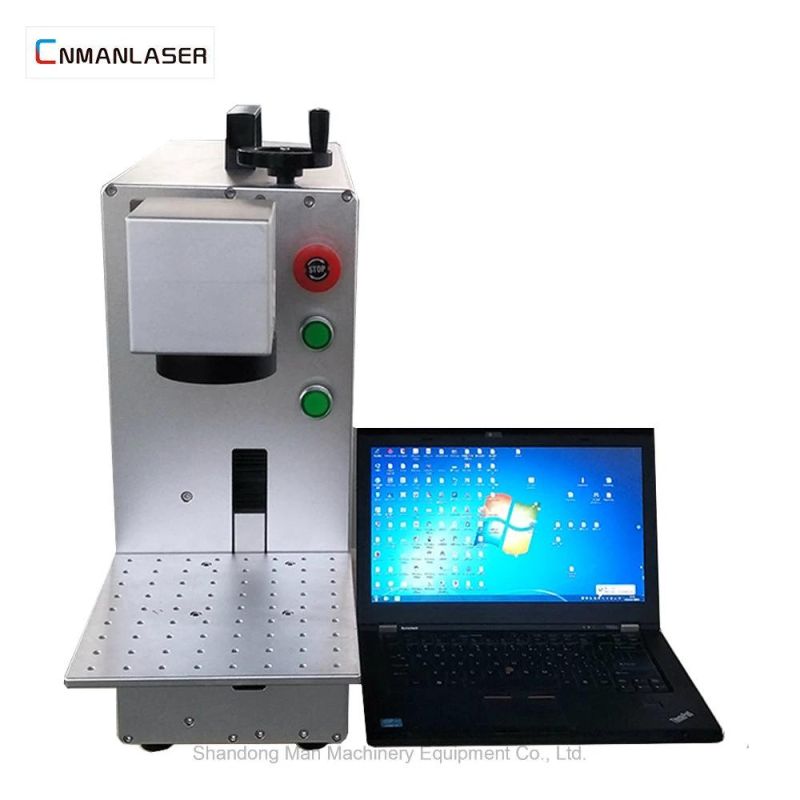

Portable medical equipment  Laser Marking Machine With Win10 Computer

Production :


Focus Finder System:

two extra focus pointers will show the exactly focus, which helps the operator to find the focus very easily, and thus enhance the working efficiency.

Original Raycus Laser Generator:

Raycus is the best laser generator in China. It can ensure that the working hour is 100,000h.

Compact Design:

Super lightweight, you can put it whereever you want to.

Technical Parameter :


Laser	From China
Laser Capacity	10w 20w 30w 50w
Laser wave length	1064nm
Optical quality	M2<1.5
Laser repetition frequency	≤100KHZ
Standard marking area(mm)	110*110mm
Optional marking area(mm)	50*50/100*100/150*150
Marking depth	≤1.2mm
Engraving speed	≤12000mm/s
Marking Speed	600-1000 character/min
Min line width	0.01mm
Min character	0.05mm
Repeated accuracy	±0.001
Operating environment	Clean, without dust or less dust
Total power	≤500W
Power supply	AC220±10%,50HZ,10A
Cooling way	Air cooling
Working temperature	0~45ºC
Working humidity	5~95%

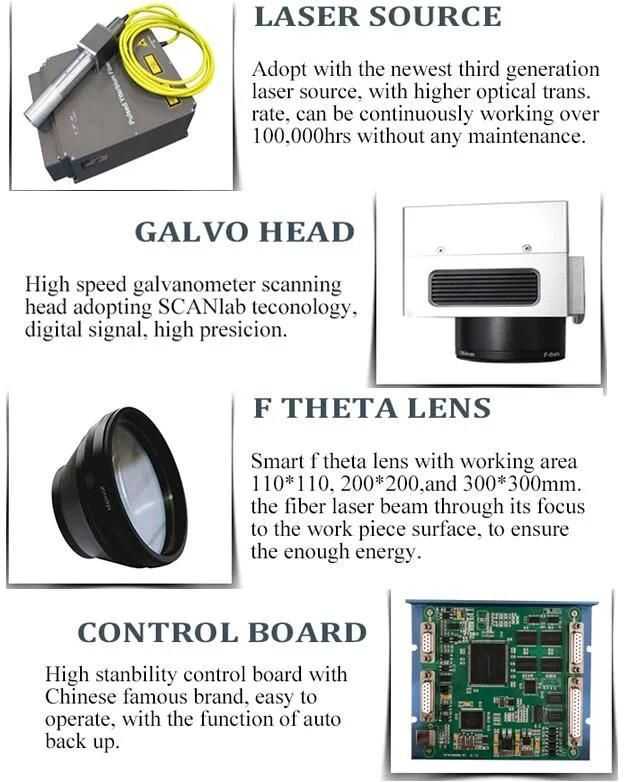

The Details Images :

What you can get when you buy our machine:

1.Personal compurter (computer system and machine software already installed)

2.Laser source already installed;

3.2D worktable

4.Tool box (including allen wrench, foot switch, backup buttons, power wire, user manual, U-disk, marking reference data paper)

5.Machine is plug and play.

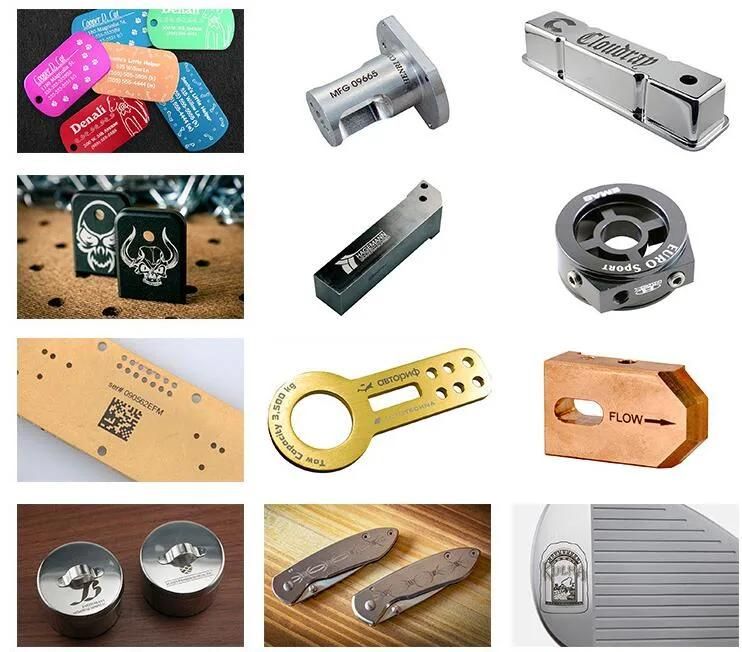

Sample Show :

Stainless Marking

(Mark and Engrave black color and white color on Stainless Steel, Aluminu, Zinc, Gold, Silver... All the metals you use)

 Coated Metals Marking

(Metals or Non-metals with coating surface, use the fiber marking machine, you can mark the pattern by remove the coating)

 ABS Plastic Seals Marking

(You can use the fiber marking machine mark on ABS, Plastic seals locks or other products)

Cigarette Lighter Marking

(You can use the fiber marking machine mark on cigarette lighter or other products similar)

 Bearings Marking

(You can mark on bearings with logos and numbers, it also can mark serial number easy)

 Mobile Phone Case Marking

(Use the Fiber Marking Machine engrave on the phone case, mobile phone case, watch, IPAD case.)

 Ring Marking

(Only need to add one Rotary, you can use the fiber marking machine mark on the Rings.

You can mark letters, lover's name, and beautiful shapes too)

 Aluminum Measuring Tools Marking

(Accurate marking scale on the tools, marking clearly and will not blur over time)



Packaing & Shipping :

Inside Packing

Use professional Stretch Film to cover the whole lathe

Stretch film package with foam protection in each corner.

Outside Packing

Standard export wooden cases and pylwood cases

Save space as much as possible for container loading.

Transport

We support shipping, air, land and express

You can choose the most suitable way of transport


Services :

Training Service

Our technician is available to your factory and offer training of how to use our machines.

As well, you may send your technician to our company to learn how to operate machines.

Quality Guarantee

We arrange final test before shipment. We run the machine without material for a few days,

and then cut materials for test. After making sure machine is the best performance, then ship out the machine.

Operating guide

Explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.

Machine maintenance&Warranty

Explain the maintenance of machine parts to extend product life and save the energy consumption

The whole set of machine warranty period is 3 years. (lens ,laser tube ,mirrors is 3 months)

If you have other question about our machines, just contact me freely.

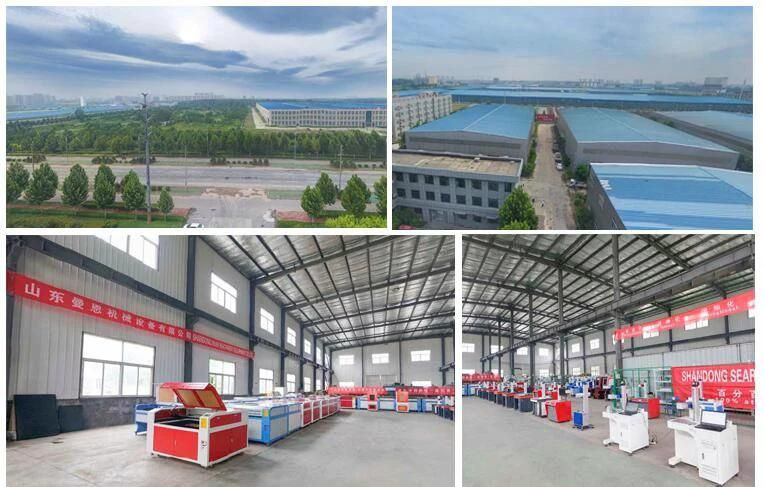

About US  :



Shandong.Man machinery Equipment Co.,Ltd. is a high-tech enterprise , we are specializing in producing,developing

and selling laser marking machine,laser engraving machine,laser cutting machine,etc.

It is Chinese industrial laser processing equipment pioneer ,domestic well-known marking equipment manufacturer.

And,with rich experiences.

we also have obtained huge success in international market ,the mainly foreign markets are United States, Germany, Spain,

Russia, Singapore, Indonesia...more than 30 countries and regions .

Till now, a lot of customers all over the world have visited us.
