• Model NO.：PEDB-200
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Power：10W, 20W, 30W, 50W, 100W
• Marking Area：Standard 110*110mm, Optional 175*175mm, 300*300mm
• Automatic：Yes
• Lifetime：8-10 Years
• Consumables：No
• Operation Humidity：10-95
• Storage Temperature：-10~60ºC
• Marking Format：Graphics, Text, Bar Codes, Qr Code, Serial Number
• Fiber Length：1.5m
• Facular Diameter：7-9mm
• Transport Package：Professional International Wood Craftcase
• Specification：mini portable size
• Trademark：Perfect Laser
• Origin：Hubei
• Production Capacity：50000 Per Year

Basic Info.

Model NO. PEDB-200 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Power 10W, 20W, 30W, 50W, 100W Marking Area Standard 110*110mm, Optional 175*175mm, 300*300mm Automatic Yes Lifetime 8-10 Years Consumables No Operation Humidity 10-95 Storage Temperature -10~60ºC Marking Format Graphics, Text, Bar Codes, Qr Code, Serial Number Fiber Length 1.5m Facular Diameter 7-9mm Transport Package Professional International Wood Craftcase Specification mini portable size Trademark Perfect Laser Origin Hubei Production Capacity 50000 Per Year

Product Description

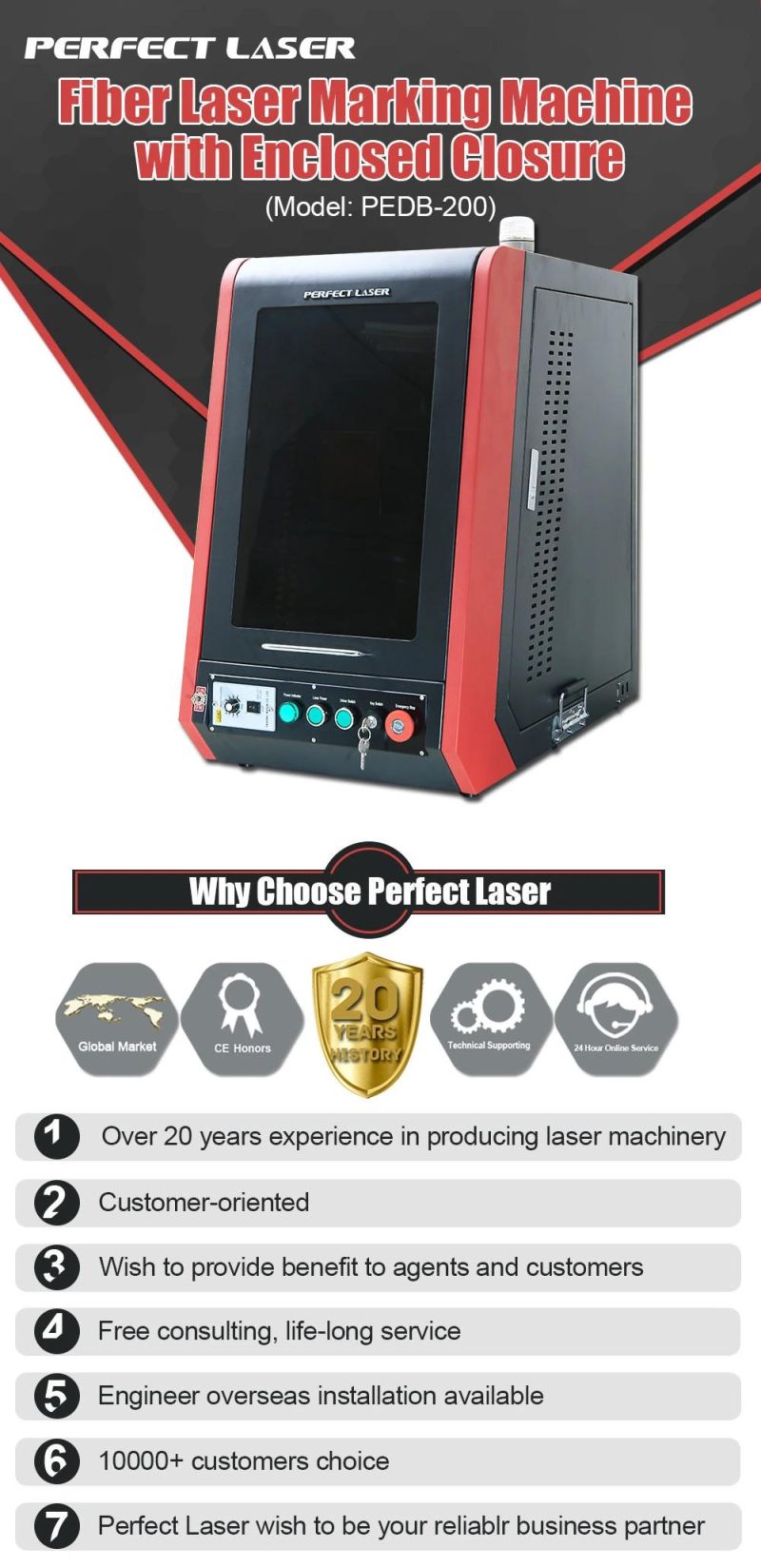

10W 20W Enclosed Fiber Laser Engraving Marking Machines
_{(Model: PEDB-200)
Contact: Emily}

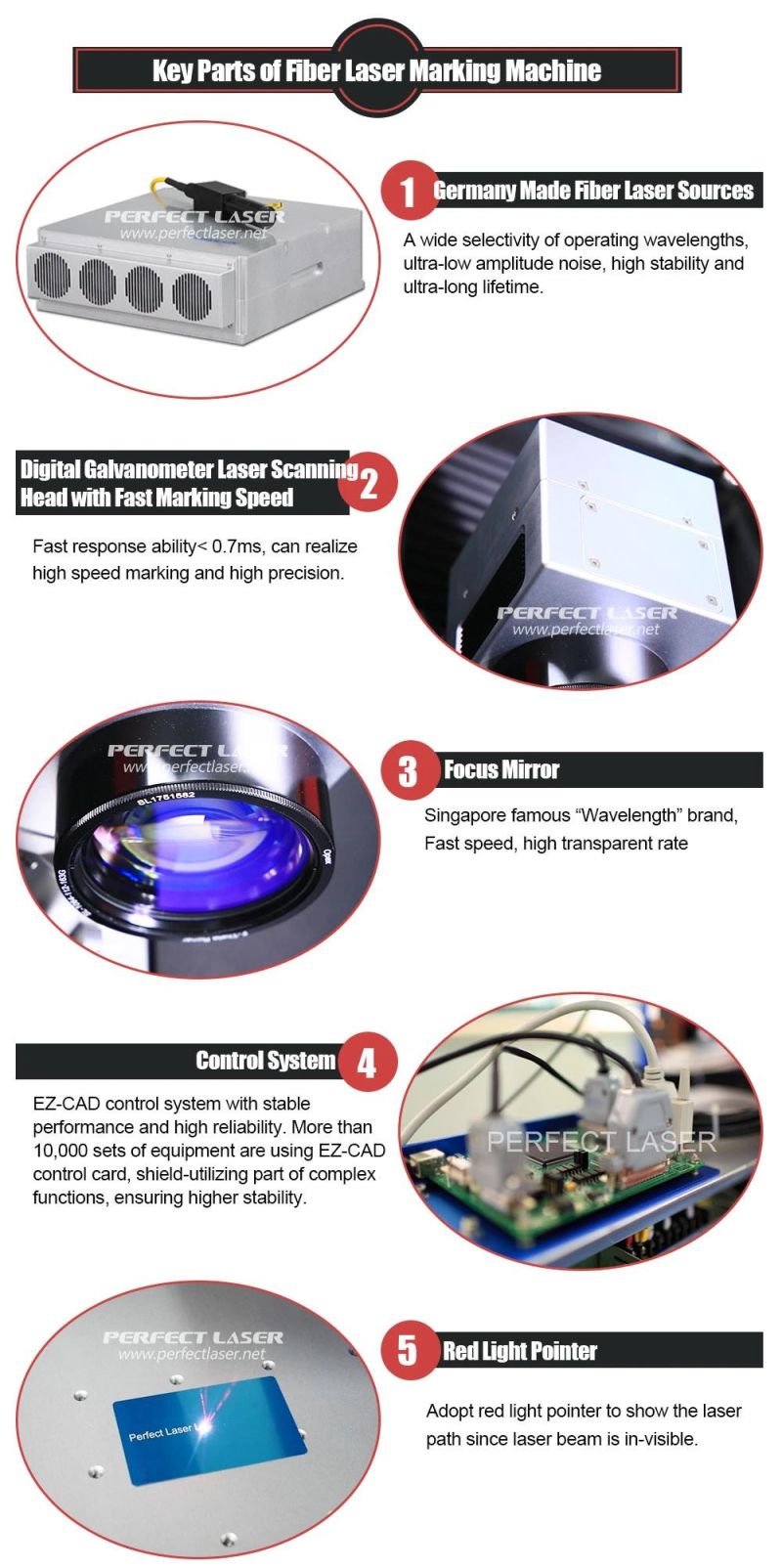

 Perfect Laser has innovated out the first-class marking technology, it can work on sculptured surface without defocus. 10w 20w Enclosed Fiber Laser Engraving Marking Machines adopts German IPG fiber laser technology while maintaining the excellent beam quality, 3d laser marking machine using the front focus technology, dynamic focus, so that after the Introduction10w 20w fiber laser marking machines have a cover-sealed structure. During work, the enclosed fiber laser marking machine's flog will be kept in the box body without emission to outside.
Environmental, friendly and healthy. It is special designed for the European market, which has high demands for working environment.

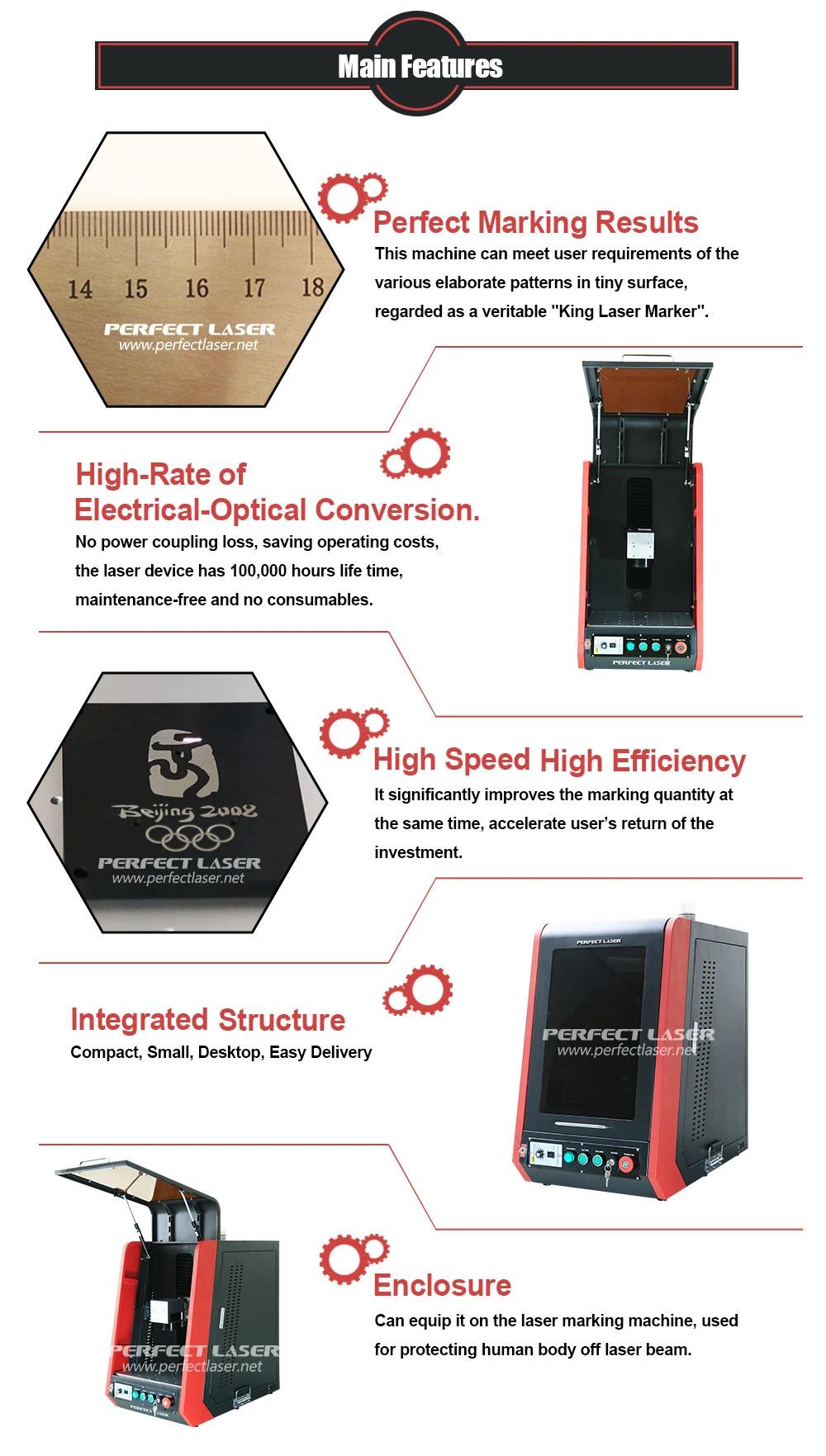

1. Low operation cost, free maintenance for over 10 years
2. Marking speed: he enclosed 20w fiber laser marking machine uses a high-quality imported laser scanning equipment, speed up to 7000mm / s.
3. High Precision: 10w 20w fiber laser marking machines' repositioning accuracy of up to 0.002mm.
4. High-Rate of Electrical-Optical Conversion for the enclosed fiber laser marking machine: The efficiency of 10w 20w fiber laser marking machines optic-electrical converting is up to 70%.
5. High Reliability: MTBF(Mean Time Between Failures) >100,000 hours.
6. Integrated and Compact: Compact, Small, Desktop, Easy delivery
7. Easy Operating: English User Manual, VCD training video, software sending together with the 10w 20w fiber laser marking machines and 24 hours online service.
8. Air Cooling: 10w 20w fiber laser engraving machines adopt air cooling, which has an excellent cooling effect than the other cooling method.



This kind of enclosed fiber laser marking machine mainly marked in areas for smoothness, finesse demanding, such as electronic products, metalware, watches, jewelry, IC, plastic buttons and other graphics surfaces.
The effect of the 10w 20w fiber laser marker on Bitmap marking is particularly outstanding.

Item	PEDB-200
Laser power	20W / 30W / 50W / 100W
Central wavelength	1064±4nm
Polarization	Random
Single pulse power	0.8~1.0mJ
Beam quality	<1.7m2
Facular diameter	7~9mm
Power stability	<5%
Frequency adjusting range adjustable range	20~80kHz
Pulse breadth	80~140ns
Pulse adjusting range	5~100%
operating voltage	100~240VAC
Fiber Length	1.5m
Cooling mode	forced air
Operation temperature	0~35ºC
Operation humidity	10~95
Storage temperature	-10~60ºC
Marking Format	Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number,etc.

Company information
We, Perfect Laser, As a 24 years history industrial equipment manufacture in laser field, 13 year Golden Supplier in Alibaba, with CE/ISO/FDA, we aim to make high-quality products, and also our products have been exported to more than 180 different countries and areas.
