• Model NO.：LFCO2
• Laser Classification：Gaseous Laser
• Engraving Method：Vector Engraving
• Transport Package：Wooden Box
• Specification：60X50X40cm
• Trademark：CYCJET
• Origin：Shanghai
• HS Code：8443393100
• Production Capacity：300unis,Month

Basic Info.

Model NO. LFCO2 Laser Classification Gaseous Laser Engraving Method Vector Engraving Transport Package Wooden Box Specification 60X50X40cm Trademark CYCJET Origin Shanghai HS Code 8443393100 Production Capacity 300unis/Month

Product Description

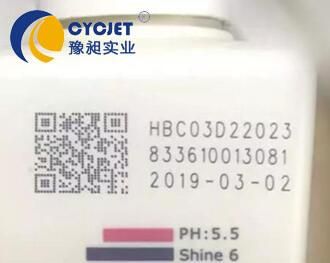

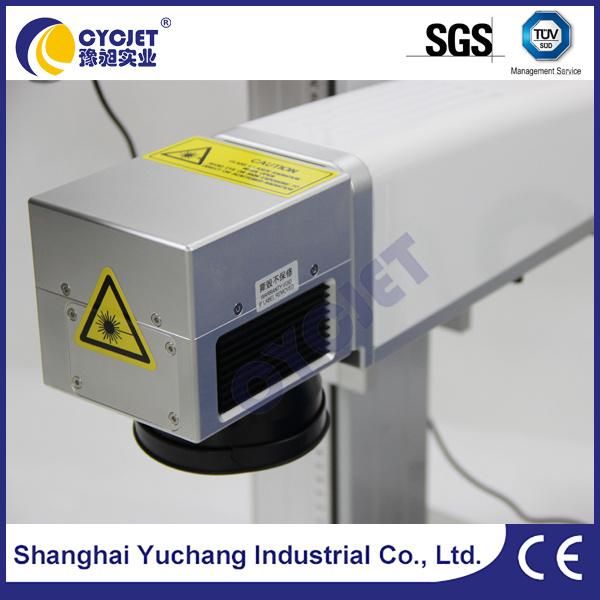

CYCJET LFCO2 Laser marking machine for product Two-dimensional code traceability


Characters:

Laser oscillation in the fiber optical wave, low dissipation, good stability and is not affected by external dust gas and mechanical looseness, the output of a laser beam is stable.
100000 hours of zero- maintenance.
Processing speed is 2 to 3 times the traditional laser marking machine.
Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption (800 w) or less, use cost.
Integrated design, small size (there are a whole cabinet and portable optional).
Environmental adaptation ability strong can be in vibration, shock, dust, humidity environment continuous work, easy to implement with optical fiber coupling, which can realize remote work.
Bar code, qr code, graphics, text rules and irregular marking serial number, etc.
Software running on WINDOWS platform, Chinese/English interface, can be compatible with AUTOCAD, CORELDRAW, PHOTOSHOP software, such as PLT, PCW, DXF, BMP, etc, but also can be used directly SHX, ttf font.

Application Scope:

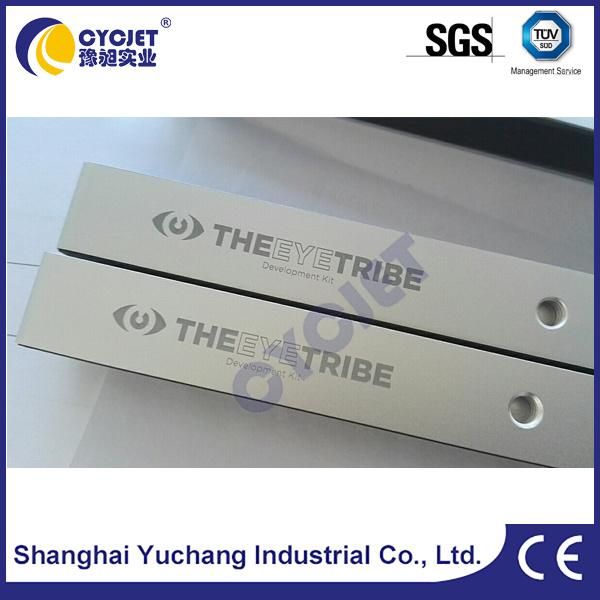

Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.

Parameters:
Output Power: 30W
Beam quality M2: <2
Laser wavelength: 1064 nm
Air cooling
Pulse frequency: 20 KHZ - 100 KHZ
Marking range:
110 mm x 110 mm (can be customized)
MarkingSpeed:7000mm/s
Marking Depth: ≤0.3mm
Marking Line Width: 0.01-0.2mm (based on difference material).
Min character Size: 0.015mm.
Repeat accuracy: + / - 0.003 mm
Marking area locating: Red-light locating system.
Power supply:
AC 100-260 v 50/60 hz
Power: ≤800W
