• Model NO.：F6
• Standard Component：Standard Component
• Type：Glass CO2 Laser Tube
• Transport Package：Carton
• Specification：1800*340*350mm
• Trademark：EFR
• Origin：China
• HS Code：8515809090
• Production Capacity：10000 Sets Per Month
• Package size per unit product：180.00cm * 45.00cm * 45.00cm
• Gross weight per unit product：36.000kg
• Lead Time：10 days (1 - 1 Sets) 15 days (2 - 10 Sets) 20 days (11 - 50 Sets) To be negotiated ( > 50 Sets)

ModelInput Current (A)Max. Operating Current (mA)Max. Current in Long-Term OperationService LifeMatched EFR Power SupplyStarting VoltageF0822mA22mA and below20mA and below6000 hours (Operating current ≤ 20mA)T6014KVF022mA22mA and below20mA and below6000 hours (Operating current ≤ 20mA)T6016KVF228mA28mA and below25mA and below6000 hours (Operating current ≤ 25mA)ES80, F8019KVF430mA30mA and below28mA and below6000 hours (Operating current ≤ 28mA)ES100, F10024KVF630mA30mA and below28mA and below6000 hours (Operating current ≤ 28mA)ES150, F15028KVF830mA30mA and below28mA and below6000 hours (Operating current ≤ 28mA)ES150, F15030KVF1030mA30mA and below28mA and below6000 hours (Operating current ≤ 28mA)ES150, F15030KVThe above current should be in accordance with actual currents displayed on the ammeter, which is in a series connection with the cathode.
If used incorrectly for long period in over-current conditions, the CO2 laser tube 's negative electrode will change color, and the service life significantly decreased.

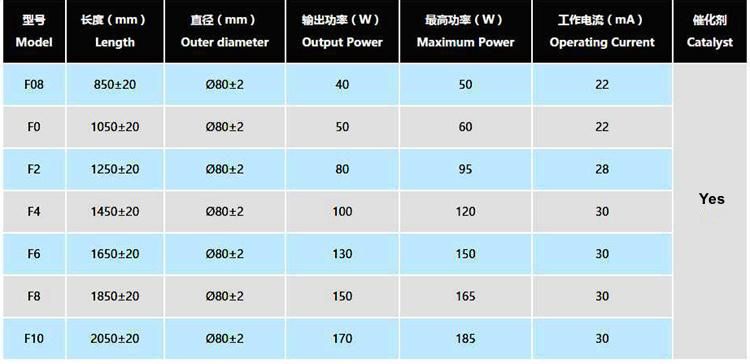

4. Technical Parmeters



5. Cleaning Tips: When cleaning the window of carbon dioxide laser tube, please do not use cotton swabs or other wipes as they will significantly affect out power.

The following methods are provided for cleaning the window:
4.1 When the lens is stained, turn off the laser tube.
4.2 Use an air dust blower to blow away dust and dirt on the lens.
4.3 Use a syringe to spray ethanol on the lens.
4.4 After the ethanol evaporates, turn the laser tube back on.
4.5 If the above method do not work effectively, professionals are required, who will use a cotton swab dipped in ethanol to clean the lens in a rotating fashion away from the center, outwards to the edge.


6. Special Notice:
5.1 Do not use acetone to clean the glass.
5.2 Do not move the two fastening screws on both ends of laser tube. Otherwise, the output power will decrease, and the laser tube will be scraped.
5.3 When testing the light spot on organic glass, please keep the organic glass 300mm away from the window.

7. Safety:
At the CO2 glass laser device generates invisible light, please wear eye protection gear when operating. A safety sign for high voltage is marked on the positive pole.

8. Storage and Transportation Requirement:
When storing and transporting the co2 laser tube, please drain the cooling liquid and cover the tubes ends with dustproof plastic bags. For storage, the required environmental temperature is 2-40 ºC and the humidity range from 10-60%.
Adhesive tapes and sponges should be used to fix the laser tubes and prevent sliding during transport. A 70mm sponge should be use at the end of the window, and a 50mm sponge should be at the end of the reflecting mirror fully.

9. Related Laser Machine Parts

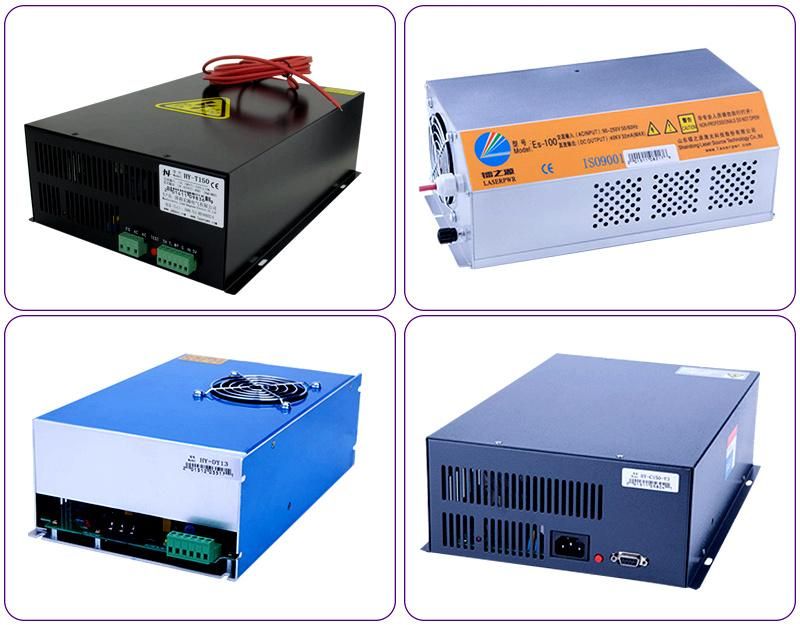

9.1 Power Supply

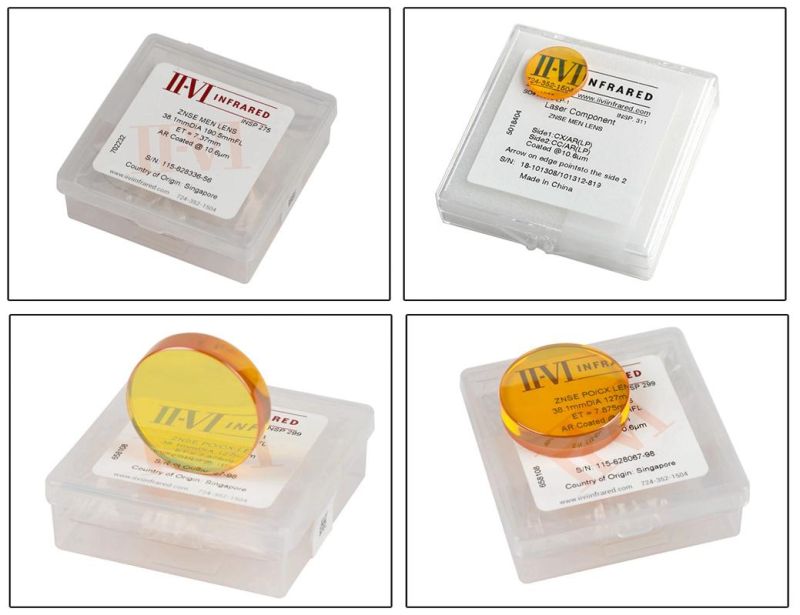

9.2 Focus Lens

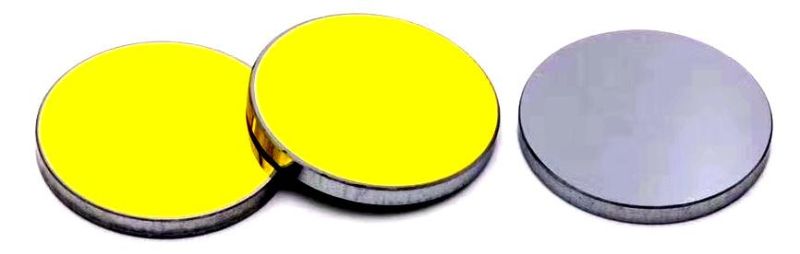

9.3 Reflective Mirrors

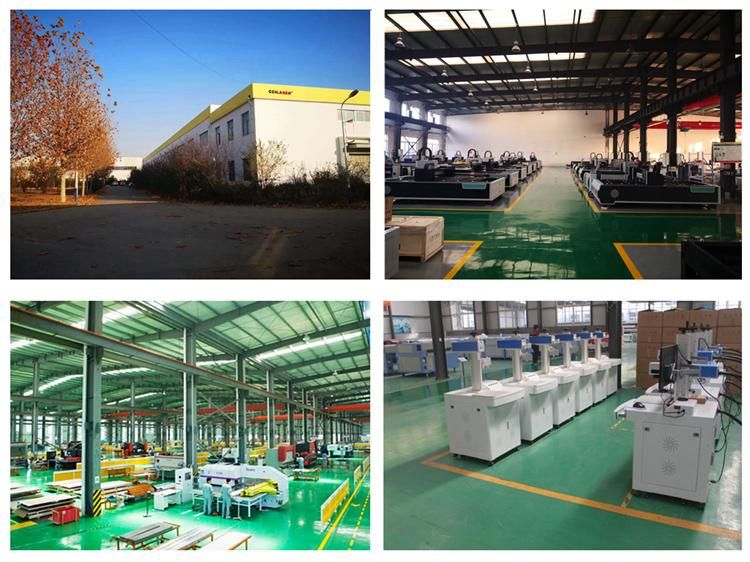

10. Company Introduction
CCILASER is headquartered in Jinan City, China. It is a world-renowned laser equipment company and a high tech enterprises integrating R&D, production and sales.

We are adhering to the tenet of "Quality first, customer first" and continues to grow. Main products include fiber laser cutting machine, plasma cutting machine, laser marking machine, laser engraving machine, laser welding machine and laser cleaning machine and etc.

Our company has passed ISO and CE international quality management system certificates, and has obtained FDA certification for the US market. We have our independent export rights.Machines are exported to more than 50 countries and regions.

Wish cooperating with you to create a better future!

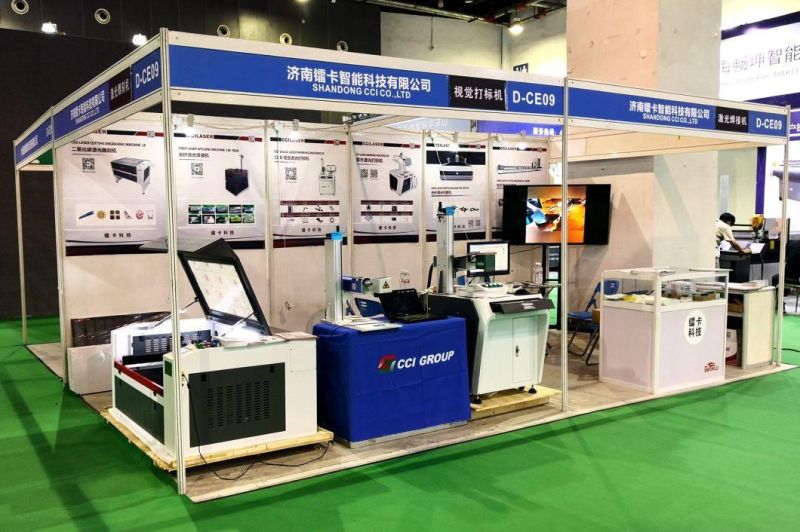

11. Exhibition Show

12. FAQ

A. Question: What kind of our company is CCILASER?

Re: CCI is laser marking machines, laser welding machines, laser marking machines manufacturing expert since year 2002.

B. Question: How is co2 laser tube guarantee?

Re: b1. co2 laser tube warrenty period is 10 months after BL time;

b2.12 hours technical support feedback;

b3. Own machining factory, which can control the spare parts quality at high quality;

b4.  Own accessories warehouse and user can enjoy the agent price.

C.Question: How is delivery time?

Re: We can delivery the machines within 7 days if we have the machines in stock.

The common machine fabricating time is 15-25 days and CNC machine fabricating time is about 25-50 days.If you have customized products, the delivery time will be given after confirmation.

D. Question: How is payment?

Re: 50% of amount as deposit and the balance should be paid by T/T or LC at sight before seller delivery the machines to loading port.

E.Question: How is our package?

Re: Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.

F. Question: Why is price higher than other supplier?

Re: f1. We have our own machining factory and the high quality technical quality is our aim;

f2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;

f3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;

f4. Our warrenty period is 24 months after BL time. It can support the new comer client going well in the beginning time.
