CO2 Laser Marking Machine for Metals, Pipes, Plastics, and Rubber
Wuhan Label Laser Science & Technology Co., Ltd.- Laser Visibility:Invisible
- Applicable Material:Nonmetal
- Cooling System:Air Cooling
- Technical Class:Continuous Wave Laser
- Laser Wavelength:CO2 Laser
- Laser Classification:Gaseous Laser
Base Info
- Model NO.:LBCO2-500
- Type:CO2 Laser Marking Machine
- Marking Method:Scanning Marking
- Model No.:Lbco2-500
- Marking Speed:0-7000mm,S
- Marking Depth:0-0.5mm
- Control Software:Ezcad
- Marking Area:110*110mm, 200*200mm, 300*300mm
- Transport Package:Wooden Case
- Specification:30W 60W
- Trademark:Label Laser
- Origin:China
- HS Code:8456110090
- Production Capacity:300 Sets Per Month
Description
Basic Info.
Model NO. LBCO2-500 Type CO2 Laser Marking Machine Marking Method Scanning Marking Model No. Lbco2-500 Marking Speed 0-7000mm/S Marking Depth 0-0.5mm Control Software Ezcad Marking Area 110*110mm, 200*200mm, 300*300mm Transport Package Wooden Case Specification 30W 60W Trademark Label Laser Origin China HS Code 8456110090 Production Capacity 300 Sets Per MonthProduct Description
CO2 laser marking machine for metals, pipes, plastics, and rubberProduct features:
1. Automatic and delicate marking on the plastic label, or engraving on wood, acrylic,
other non metal products.
2. 100,000 hours long working life,ultra-low running cost and power consumption.
3.Durable and reliable, can work for long time continuously.
4. Support Windows XP/2000, Window 7, 8, 10, JCZ EZCAD marking software. Easy to learn and operate.
Product details:
Technical Parameter:
Laser Wavelength | 10.64μm |
Laser Mode | TEM00 |
Output Power | 30W, 60W |
Model | LBCO2-500 |
Working medium | Co2 |
Marking Area | 110*110mm, 200*200mm, 300*300mm |
Marking Depth | 0.02-1mm(depand on processed material and procedure, can be adjusted) |
Marking Speed | ≤7000mm/s |
Marking Content | English letter, charater, figure and any graphic |
Marking Function | Falt surface, arc with small curvature, mark can be filled |
Min. Line Width | ≥0.1mm |
Total Power | ≤1KW |
Cooling Mode | Air cooling |
Temperature of Operation Environment | 0ºC~40ºC, better for 10ºC~35ºC |
Power Input | 220V ( ±10%)22V / 50Hz( ±5%) single phase |
Machine Dimension | 610*760*1427mm |
Optional | Other customized Automation |

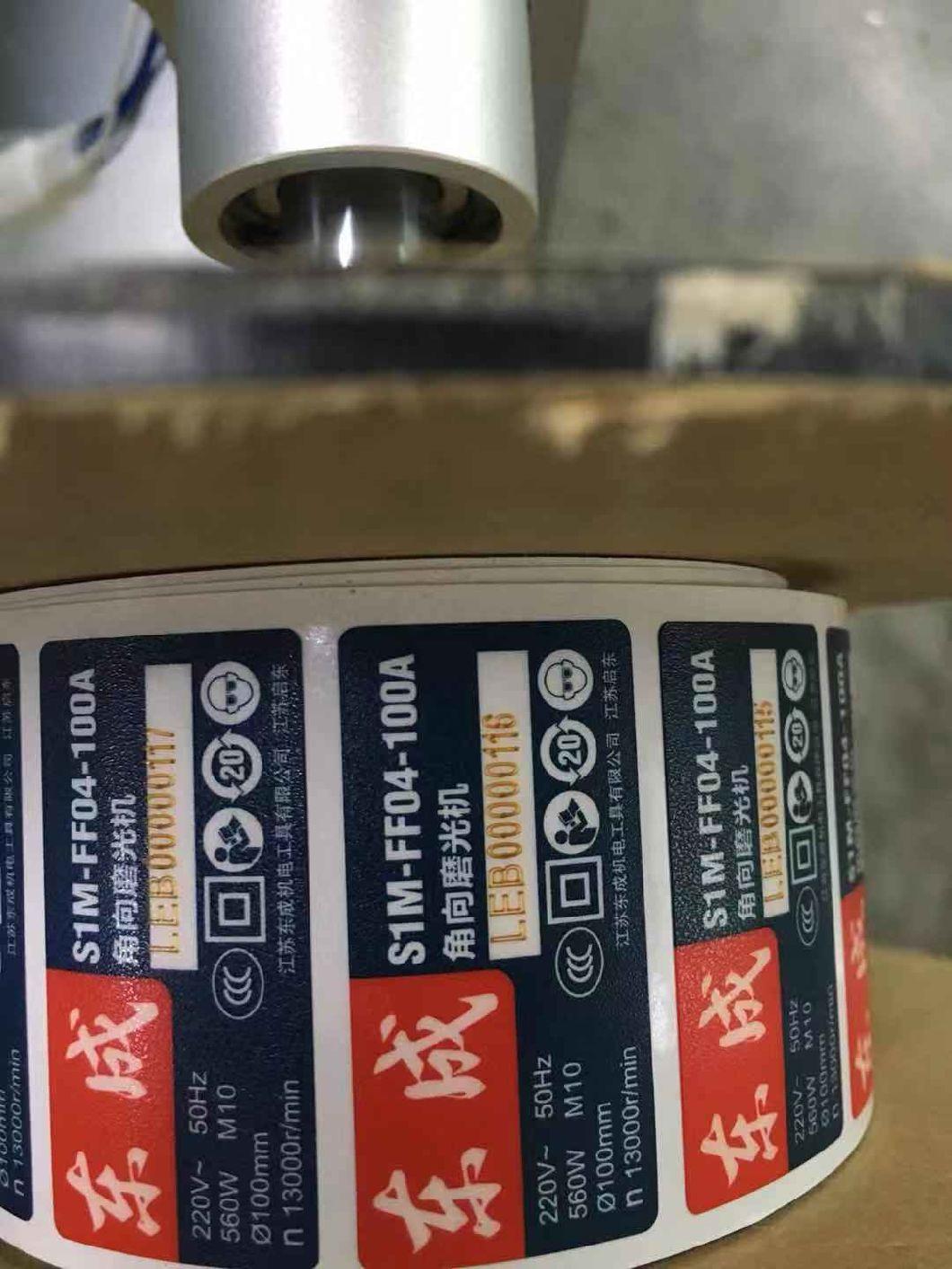

Marked Samples:
Applicable field
Industries: PVC, PET, PP plastic labels, capacitances, inductors, IC, printed circuit boards, electrical cards, Instruments, control panels, ect. Buttons, cosmetics,food and beverage packaging, stationery, crafts, etc.
Packing Detail:
Company Profile
Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, laser welding machine, laser cleaning machine for customers since 2000.
With over 18 years development,Label Laser has accumulated rich technical and design experience for industrial marking system, a large number of successful cases and well-know customers in industries of machinery, automotive, iron and steel, petroleum, petrochemical, aviation, electronic products, tools, instrument, apparatus, etc.
Why choose us
A. More than 18 years laser marking, welding, cleaning, processing, manufacturing, research and design rich experience.
B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.
FAQ
Q1: What type of the machine suitable for us?
Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.
Q2: If we do not know how to use the machine,can you teach us?
Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.
Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Q4: How about the warranty time?
Our CO2 laser marking machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.

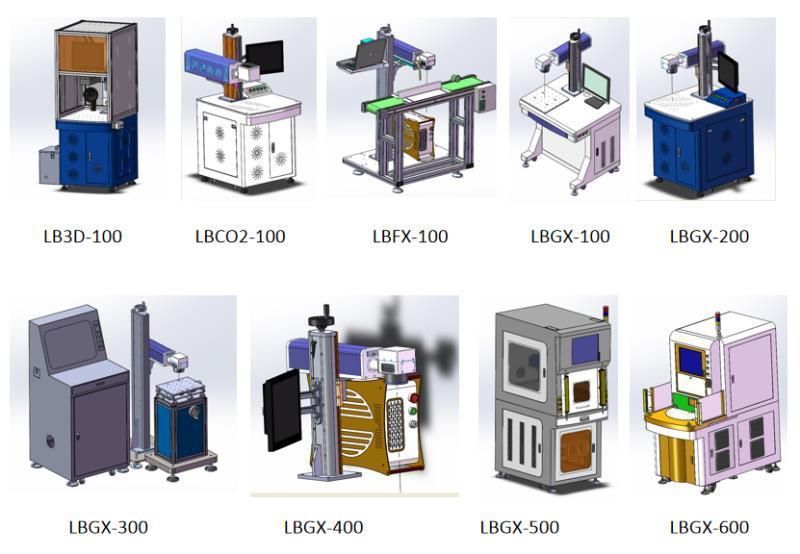

More Products
