• Model NO.：MT-RF100D
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Speed：≤8000mm,S
• Repetition Precision：0.01mm
• Power Source：AC110V,220V± 10%, 50,60Hz
• Min.Line Width：0.01mm
• Transport Package：Wooden Box
• Trademark：Mactron
• Origin：Guangdong
• Production Capacity：200sets,Month

Basic Info.

Model NO. MT-RF100D Type CO2 Laser Marking Machine Marking Method Scanning Marking Marking Speed ≤8000mm/S Repetition Precision 0.01mm Power Source AC110V/220V± 10%, 50/60Hz Min.Line Width 0.01mm Transport Package Wooden Box Trademark Mactron Origin Guangdong Production Capacity 200sets/Month

Product Description

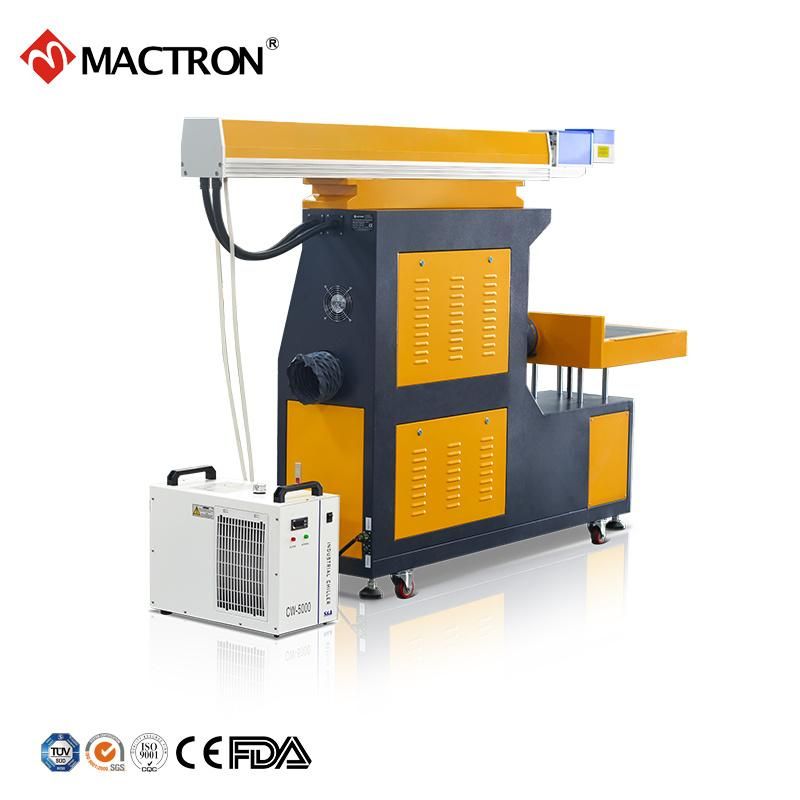

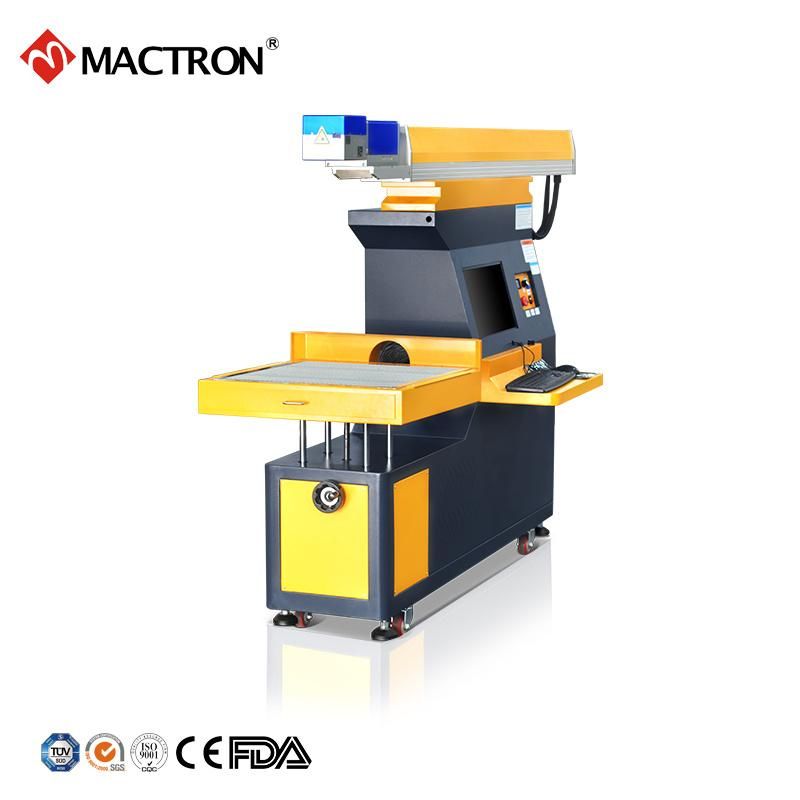

High Quality CO2 Laser Engraving Machine with 3-Axis Galvo for Plastic

Product Description

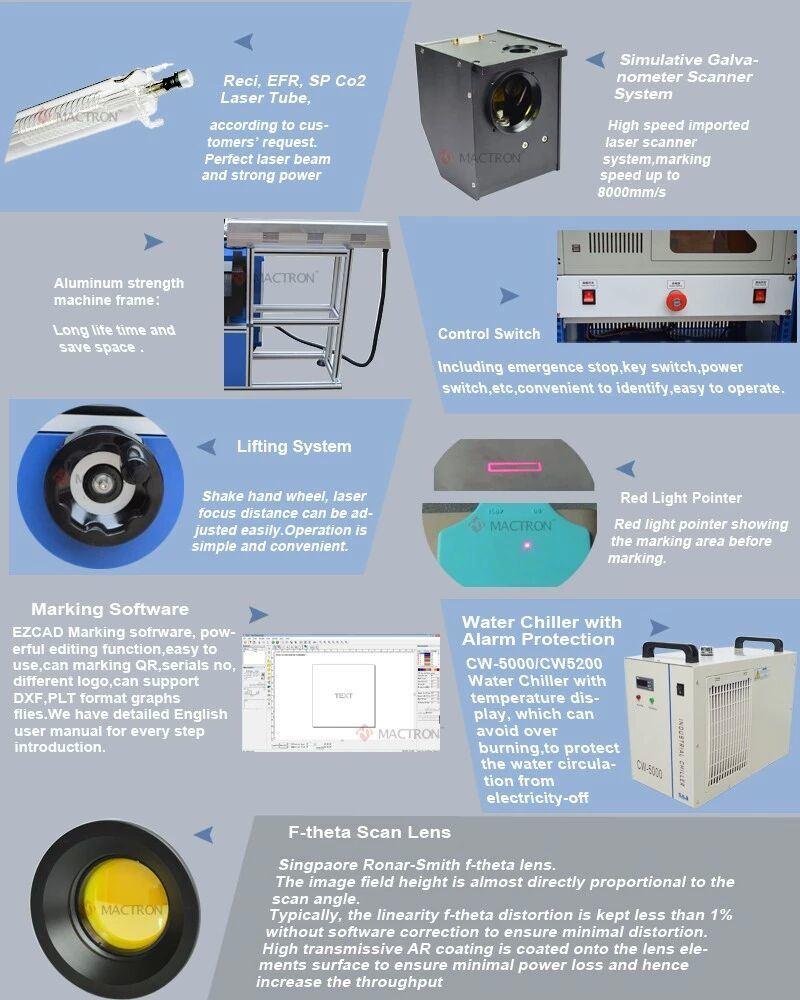

Co2 3 Axis Dynamic Focusing Laser Marking Engraving Machine is equipped with RF laser tube imported from America. The RF Co2 Laser can work in large power with high frequency and long operating life. It has 100W and 150W two power options.

Equipped with hi-tech dynamic focusing scanning mirror and control card, the 3 Axis Dynamic Laser Machine system is excellent in the aspects of algorithm optimization, high speed of marking and cutting, and other powerful functions. It is specially designed for the laser scanning with a tiny light spot, large working range, and high flexibility.
Furthermore, this 3 Axis Co2 laser marking equipment is characterized by high strength in use, compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, etc., which can ensure the stability of the system under long-hours working conditions.

Applicable Material:
Nonmetal material like leather, rubber, wood, bamboo product, organic glass, ceramics, plastic, marble, jade, crystal, cloth etc.
Applicable Industry:
CO2 3 Axis Dynamic Focusing Laser Marking Machine can be applied to leather carving, hollow-out leather, greeting cards marking, and wood products laser marking, and laser burning in jeans wear and other laser marking process of nonmetal.



Model	MT-RF100D/150D/300D
Laser Power	100W/150W/300W
Laser Type	RF CO2 Laser Generator Imported From U.S.A or Germany
Wavelength	10.6um
Processing Area	400*400MM,600*600MM(Standard)800*800MM/1000*1000MM, 1200*1200MM(Optional)
Marking Speed	≤8000mm/s
Marking Depth	≤2MM
Repetition Precision	0.01MM
Min.Line Width	0.01MM
Min.Character	0.2MM
Cooling Mode	Water Cooling
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Power Source	AC110V/220V± 10%, 50/60HZ
Gross Power	<6000W
Warranty	1 Year
Operating temperature	10ºC-35ºC
Humidity	5% to 85% (Free of Condensed Water )



sample



FAQ
1.Q:What are the primary products of your company?
A: Our primary products include laser engraving machine, laser marking machine, laser cutting machine, laser welding machine, and laser spare parts.

2.Q: How can you guarantee that I have a good sale on this product?
A: We offer professional technology and after-sale service.

3.Q: How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience. At the same time, you can send us the sample for testing.

4.Q:Which countries are your laser machinery sold to?
A: Our laser machine sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.

5.Q:What certificate has your company got?
A: All of our laser marking machine with CE, ISO, SGS

6.Q: How long is the delivery time?
A: The laser marking machine will be delivered to you within 1-2 weeks after the order is confirmed.

7.Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

8.Q: What's the package?
A: We have 3 layers package. For the outside,we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

9.Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 200 countries worldwide. So please don't worry, you will receive the parcel in good condition.
