Glass Protector Laser Cutting Machine

Jinan Vmade Cnc Machine Co., Ltd.
  • Warranty：3 Years
  • Application：Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Nonmetal
  • Structure Type：Desktop

Base Info

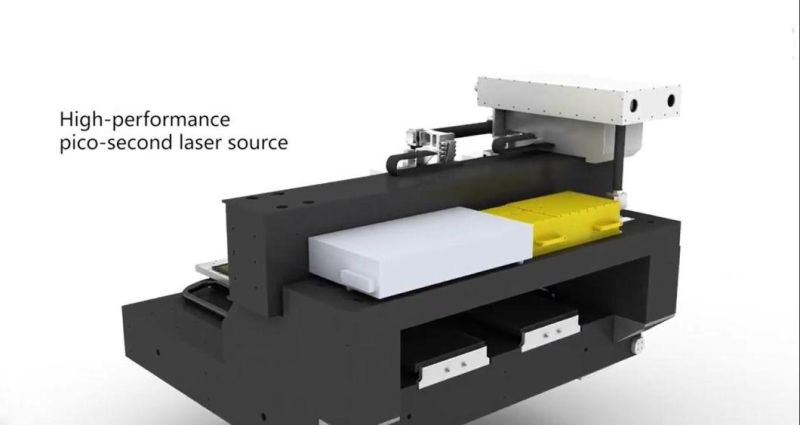

  • Laser Classification：Picosecond Laser
  • Transport Package：Fumigation Wooden Box

Description

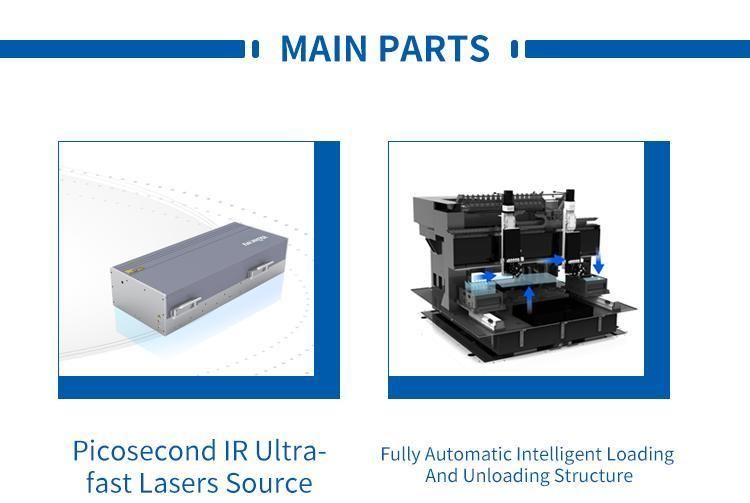

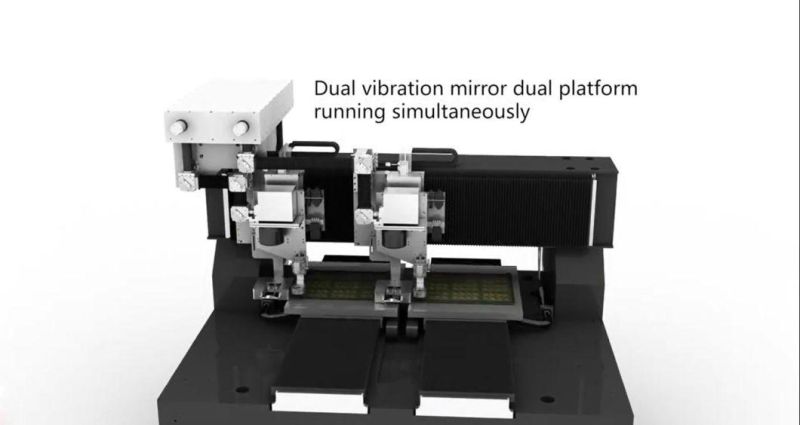

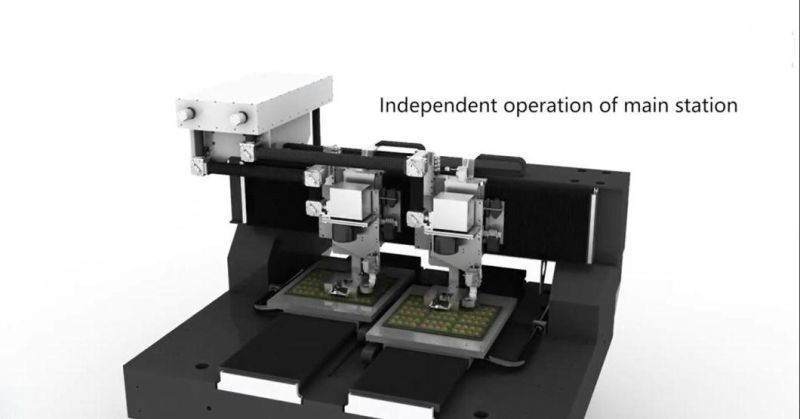

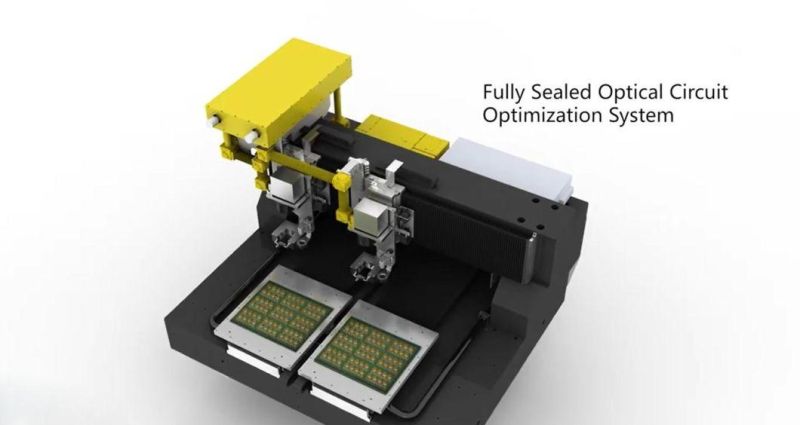

Machine modelBL6050Laser source power30W 50W 70WMachine structureX,Y,Z Marble TableMax. stroke600mm*500mm*100mmRe-positioning accuracy of motion platform±1umpositioning accuracy of motion platform±2umSupported filesDXF,PLT,DWGCCD Vision positioning accuracy±3umLaser source wavelength1064nmBeam qualityM²<1.3Minimum focus spot∅3umCooling typeConstant temperature water coolingProcessing speed0-500mm/s adjustableTwo tables fabrication saves loading and unloading time. The fabrication efficiency of the equipment can be improved effectively by the dual-manipulator asynchronous structure design.For the materials with simple cutting design, the fabrication capacity can be increased double time by the asynchronous loading and unloading structure. The whole set of equipment achieves non-human operation through the whole process, from glass picking up in the material frame, to the laser cutting and lowering down to the material frame after being cut, which can realize the non-human operation of the whole process.
Glass Protector Laser Cutting Machine
CCD intelligent camera auto positioning function, which identifies material location, identifies round shape,Cruciform shape and irregular MARK point precisely, improves fabrication accuracy. Adjustable fixture structure design, suitable for different types and sizes of products, increasing the versatility of products. High pressure vacuum pump adsorption device to ensure the positioning stability of the products.
