• Model NO.：MAN-30W
• Laser Classification：Color Logo Printing Machine
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Long-Term Average Power Instability：<5%
• Pulse Repetition Rate* kHz：20-80 kHz
• Wavelength：1064nm
• Marking Area：110*110mm,175*175mm,300*300mm
• Typical Beam Quality, M2：<1.8
• Operating Voltage：220V
• Emission Bandwidth (Fwhm)：<10 Nm
• Pulse Width(Fwhm)：100 Ns
• Location Precision：0.01mm
• Software：Ezcad
• Transport Package：Wooden Case
• Specification：Fiber Laser Marking Machine
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-30W Laser Classification Color Logo Printing Machine Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Long-Term Average Power Instability <5% Pulse Repetition Rate* kHz 20-80 kHz Wavelength 1064nm Marking Area 110*110mm/175*175mm/300*300mm Typical Beam Quality, M2 <1.8 Operating Voltage 220V Emission Bandwidth (Fwhm) <10 Nm Pulse Width(Fwhm) 100 Ns Location Precision 0.01mm Software Ezcad Transport Package Wooden Case Specification Fiber Laser Marking Machine Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

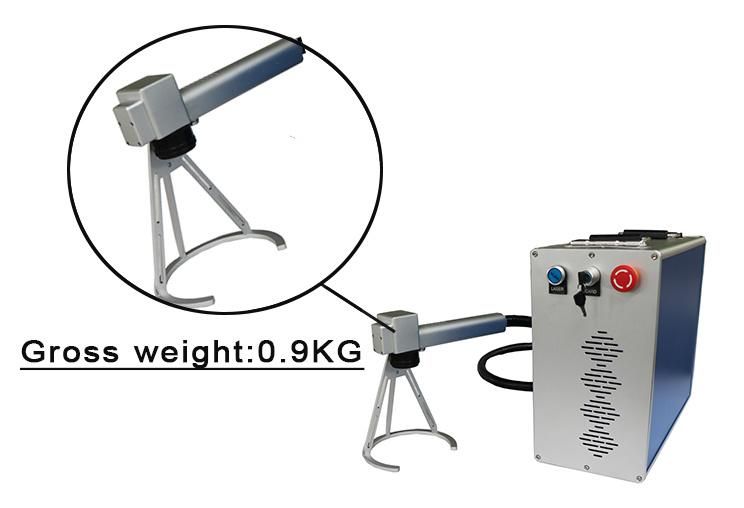

          Portable Hand Helded Metals 30W 50W Fiber Laser Marking Engraving Machine
(Model:MAN-30)








1.Germany Made Fiber Laser Sources>> A Wide Selectivity of Operating Wavelengths, Ultra-Low Amplitude Noise, High Stability and Ultra-Long Lifetime

2. Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.

3. Focus Mirror>> Singapore famous "Wavelength" brand, Fast speed, high transparent rate

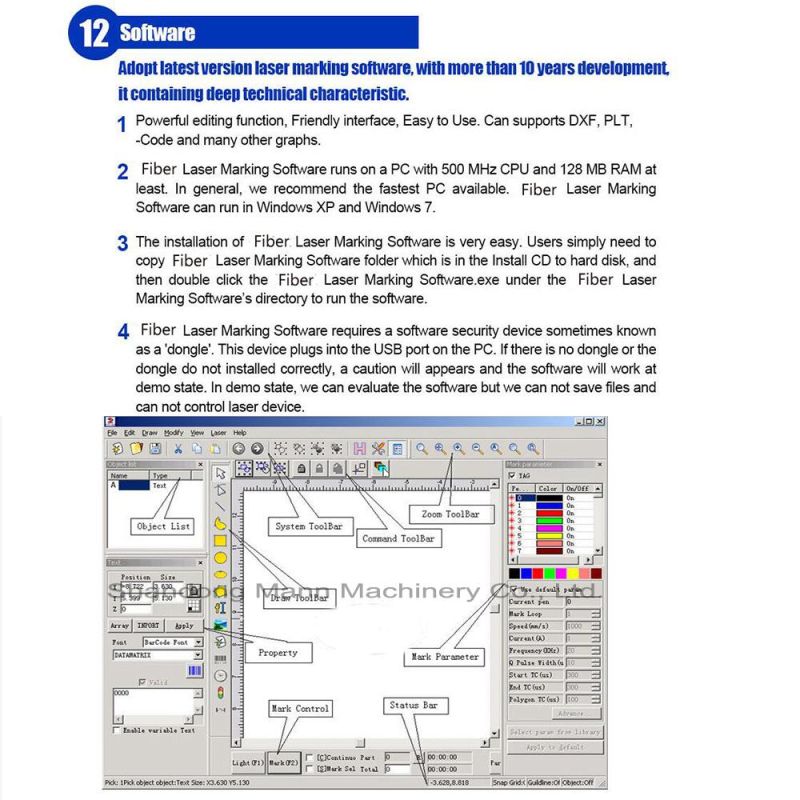

4. Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.

5. Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.

6. 3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.

7. Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.

8. Portable Handle>>Easy to held the machine by hand.

9. Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.

10. Key Switch>> Using key swith to control the power of the machine.

11. Main Switch>> It is designed as a easy button, safe and efficient.





Used in garment accessories, medicine packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries. It can carve metal and many kinds of non-metallic materials. It is more suitable for processing products with high precision and precision.

 Applied to electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses, clocks, jewelry, automotive accessories, plastic keys, building materials, PVC pipes, medical devices and other industries.

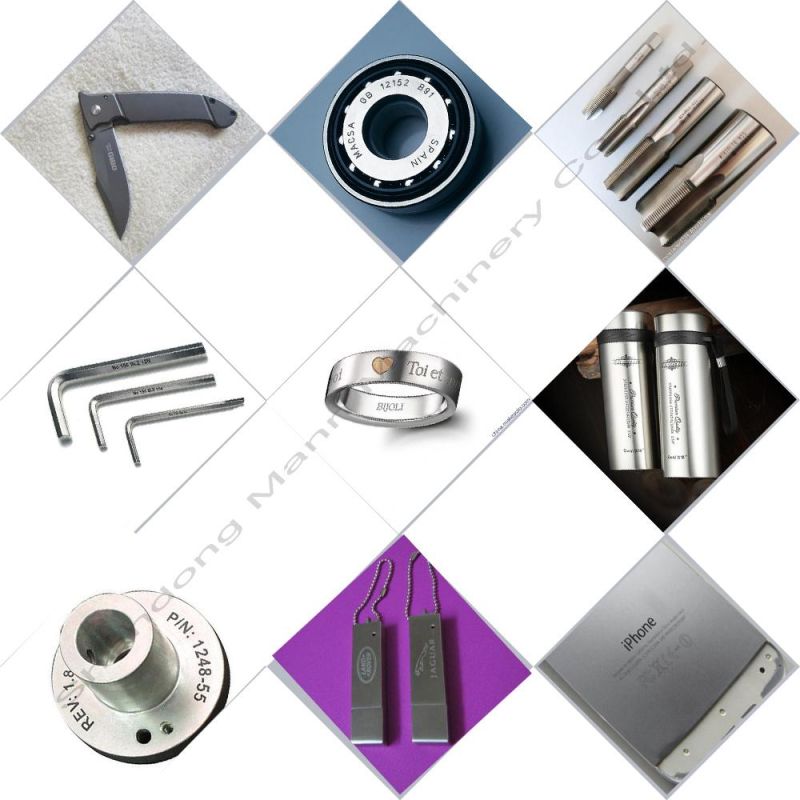

 Include: ordinary metals and alloys (all metals such as iron, copper, aluminium, magnesium and zinc), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are acceptable), special surface treatment (Phosphating, aluminium anodizing, electroplating surface), ABS materials (household appliances, daily necessities), inks (light transmission keys, printing products), epoxy. Resin (encapsulation and insulation of electronic components).



Model	MAN-20
Laser Type	hand held Laser Marker
Laser Wavelength	1064um
Marking Area	110×110mm / or Customized
Marking Speed	250 Characters / Second
Minimal Character Size	0.25mm
Minimal Line Width	0.015mm
Power Supply	380V / 50Hz
Cooling Method	Air Cooling
Repetition Rate	0~50KHz
Bitmap Format	BMP, JPG, PNG, TIF, PCX, TGA, ICO, PNG, GIF, PLT, etc.,
Power Consumption	0.5 kw
