• Model NO.：MT-R,U,F
• Rotary Clamp Diameter：20-300mm
• Cutting Precision：0-36000mm,Min
• Cutting Depth：≤0.3mm
• Beam Quality：<1.2m2
• Laser Pulse Frequency：20-200kHz
• Gross Power：<1250W
• Min.Line Width：0.15-0.3mm
• Location Precision：0.015mm
• Power Source：AC110V,220V± 10%, 50,60Hz
• Safety Protection Class：IP54
• Working Environment：Clean, Free of Dust
• Transport Package：Standard Export Wooden Box
• Trademark：MACTRON
• Origin：Guangdong, China
• Production Capacity：200sets,Month

Basic Info.

Model NO. MT-R/U/F Rotary Clamp Diameter 20-300mm Cutting Precision 0-36000mm/Min Cutting Depth ≤0.3mm Beam Quality <1.2m2 Laser Pulse Frequency 20-200kHz Gross Power <1250W Min.Line Width 0.15-0.3mm Location Precision 0.015mm Power Source AC110V/220V± 10%, 50/60Hz Safety Protection Class IP54 Working Environment Clean, Free of Dust Transport Package Standard Export Wooden Box Trademark MACTRON Origin Guangdong, China Production Capacity 200sets/Month

Product Description

Product Description

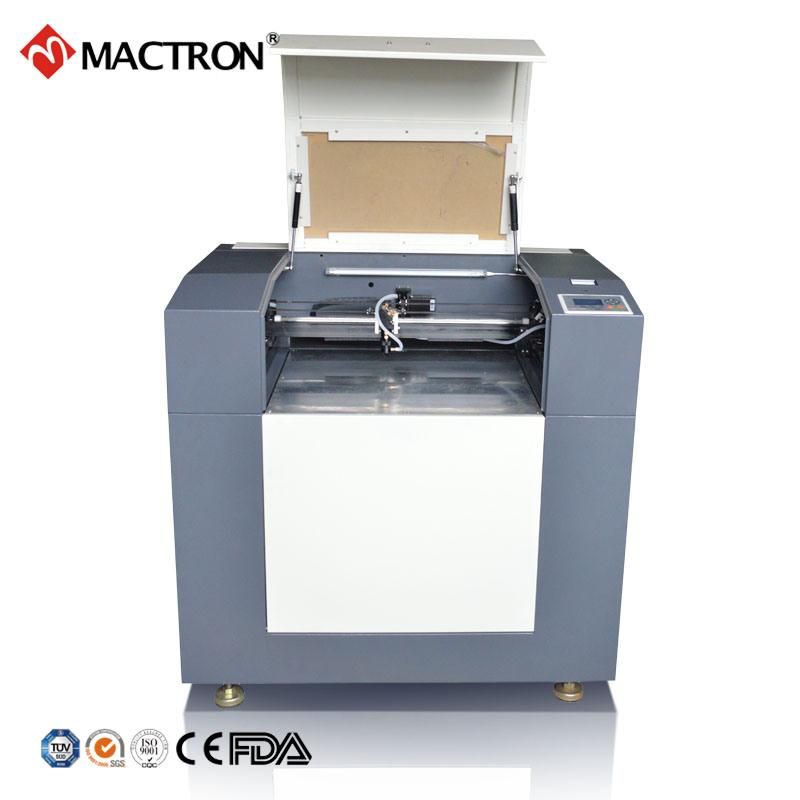

The series is equipped with rotary apparatus, auto focusing system and automatic up-down working table. Because of being controlled by computer software automatic, it can not only engrave on the surface of products, but also cave on cylinders with vivid designs. The compatibility of the system is very high. It is applied for engraving and cutting in the fields of advertisement, decoration, crafts and gifts, stamp mode industries. For example, acrylic, double-colored board, plywood, MDF, rubber, plastics etc.




Parameters

Mode	MT-640U
Laser Type	CO2 Glass Laser Tube/(RF Metal CO2 Laser Tube Optional)
Peak Laser Power	70W/80W/100W
Wavelength	10.6um
Cutting Precision	0-36000mm/min
Cutting Depth	≤0.3mm
Cutting Speed	0-64000mm/min
Cooling Mode	Water Cooling and Protection System
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	10ºC-40ºC
Warranty	1 Year
Beam Quality	<1.2M2
Laser Pulse Frequency	20-200Khz
Humidity	5% to 85% (No Condensed )
Gross Power	<1250W
Min.Line Width	0.15-0.3mm
Location Precision	0.015mm
Power source	AC110V/220V± 10%, 50/60HZ
Processing Area	600*400mm
Working Environment	Clean, Free of Dust
Safety Protection Class	Ip54
Laser Generator Safety Class	IV

Product Sample

Applicable Material:
Rubber, plastic, organic glass, cloth, leather, wool fabric, ceramic tile, crystal,jade, bamboo product, wooden product and other nonmetal materials.

Applicable Industry:
This series of machine is suitable for models , handicrafts, bamboo and wood products, advertising decoration, architectural decoration, packaging and printing, paper products and other industries.
