Die Making Laser Cutting Machine
WORTHY TALL INDUSTRY CO., LIMITED- Application：Food Machinery, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry, Die Board Making Industry
- Cooling System：Water Cooling
- Technical Class：CO2 Laser
- Applicable Material：Nonmetal
- Structure Type：Gantry Type
- Laser Classification：Gaseous Laser
Base Info
- Model NO.：WT-LC1500
- Laser Technology：Laser Control Fault Cutting
- Packing Size：15 Cube
- Effective Cutting Size：1250*2500mm( Other Size Can Be Optional)
- Laser Power：1000W to 3000W
- Cutting Thickness：10-30mm Die Board Wood
- Main Application：Die Board Cutting for Wood Industry
- Laser Type：High Power CO2 Laser
- CO2 Laser Brand：Wt Own Brand and Technology
- Lubrication System：Auto Lubrication
- Max Positioning Speed：30m,Min
- Die Board Pointing Accuracy：0.01mm
- Cutting Precision：0.01mm
- Cutting Gap：0.45mm, .053mm, 0.71mm, 1.07mm, 1.42mm
- Service：English Engineer Overseas
- Usage：Die Makers, Box Manufacturing Plants and Paper Ind
- Warranty：One Year
- Transport Package：Plywood Packing
- Specification：8500x5500x1800mm
- Trademark：WT
- Origin：Dongguan City China Prc
- HS Code：8456110090
- Production Capacity：1000
Description
3, Auxiliary Parts Added by Customers 4, Whole Machine Structure
Attached:
1. Characters Of Flat And Rotate Die Laser Cutting Machine:

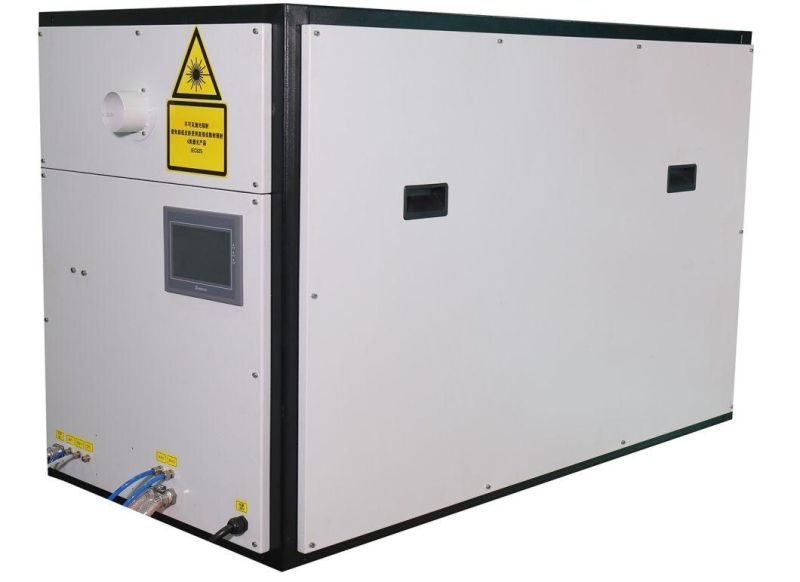

1,Self Develop Laser Source And Machine Structure The whole machine is stable and reliable.
2,10 years of professional experience in the production of large laser equipment, providing sound technology, timely service and long-term protection.
3,Using a unique hybrid laser gas and standby mode, the cost is 2/3 of similar products, energy saving.
4,Machine adopts high-strength structural steel, and use quenching to stress process, to ensure long-term operation without distortion.

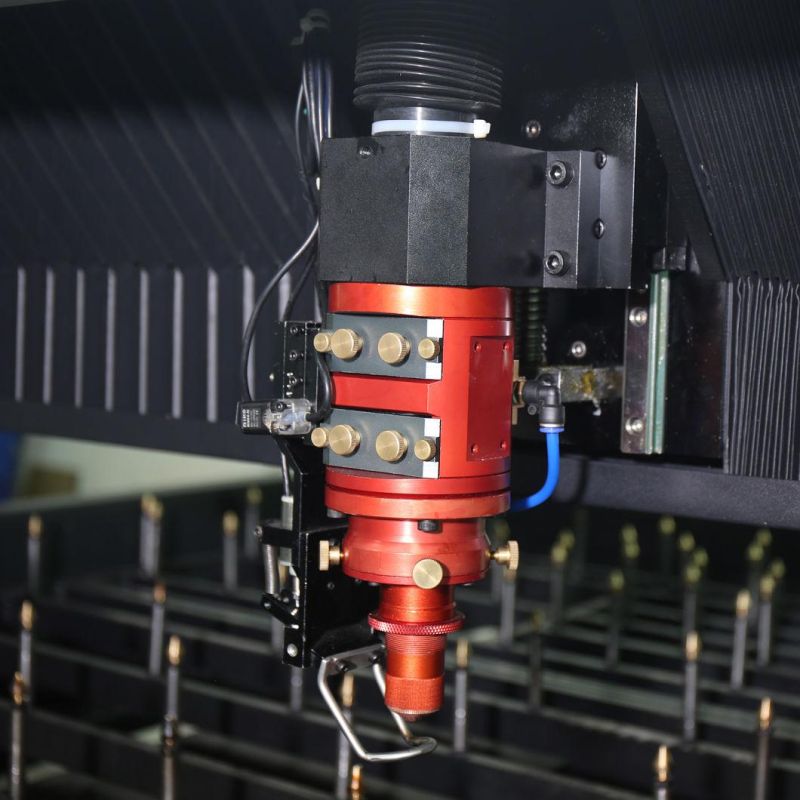

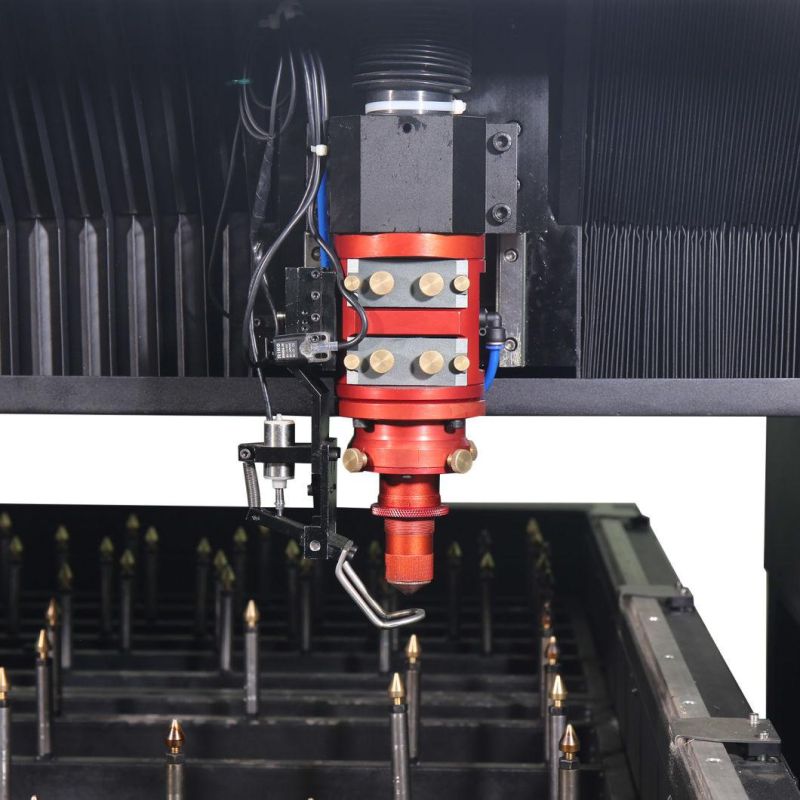

5,Laser cutting head with induction servo system to ensure that the cutting gap is not affected by the uneven plate; cutting process can change the width of the cutting gap (servo adjustment system) without stop the machine.
6,Laser cutting head with anti-collision function.
7,Up to three different width cuts can be cut on the same die board.
8,Unique centralized dust removal device, so that the smoke generated during cutting, dust emissions are timely and effective removed, to make the processing environment cleaner.
9,Machine with pneumatic tightening function, the cutting plate will not move.

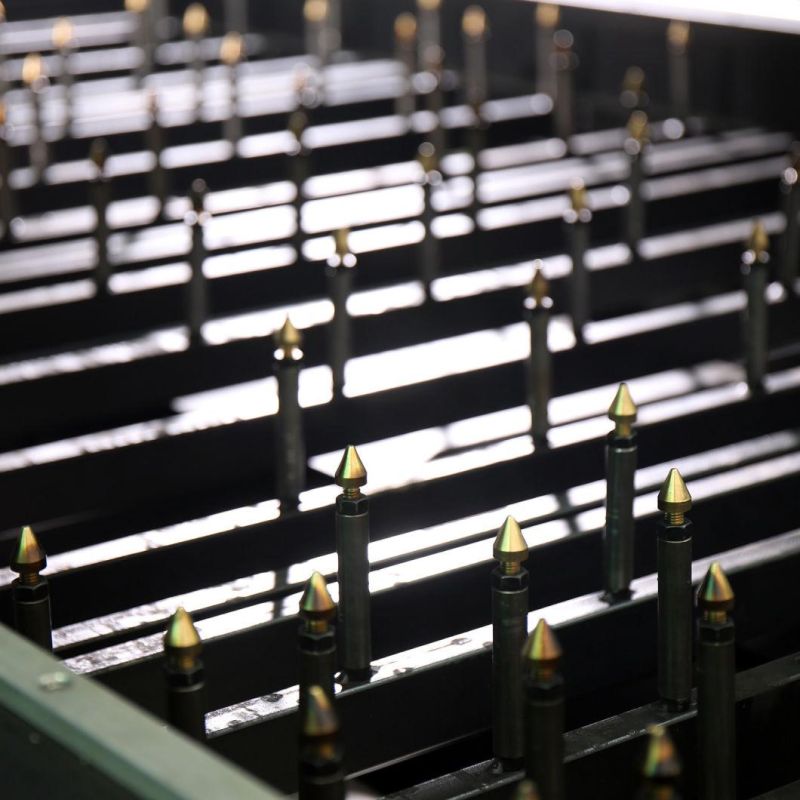

10,The machine with the cutting board input function, so easy to load the board, The cutting board will not be scratched platform thimble wood.
11,The CNC system without any restrictions from the WINDOWS version. Using network cable to connect equipment, will not happen files lost, computer virus infection or board card system can not find the hardware .
12,Rotate Die Machine Use Eccentric shaft structure design. The shaft will not be directly burned when laser is cutting, to ensure long-term high-intensity operation without deformation. to avoid the same kind of coaxial products from other factory burning defects long-term defects.
13,Rotate Die support part of the rail can be freely sliding, as required, to ensure cutting accuracy.
14,Rotate And Flat machine use of split (two machine using a separate system), Machine works more stable and reliable.

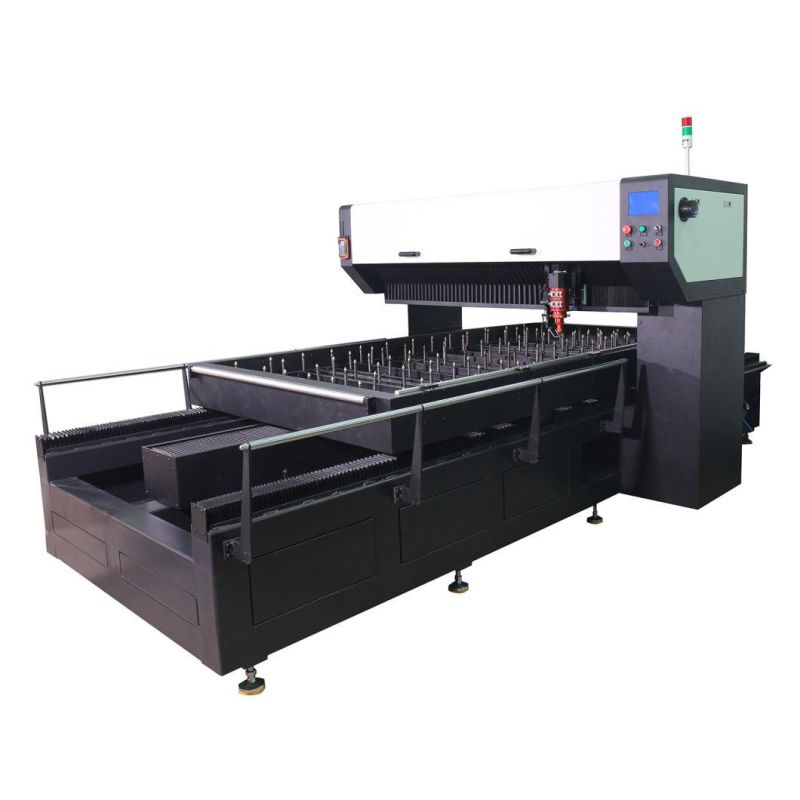

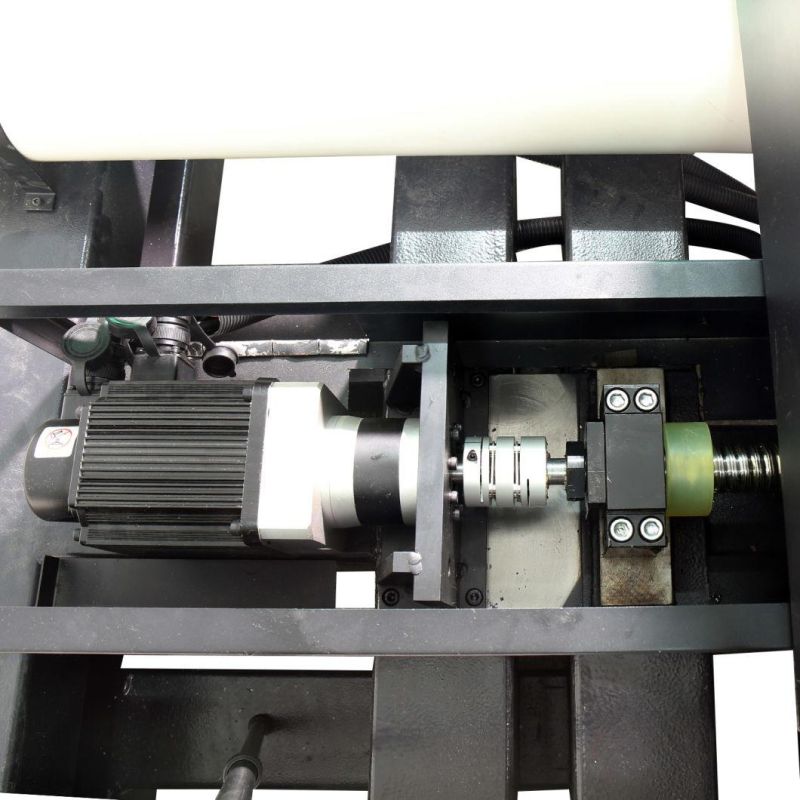

2. Pictures of Flat and rotate Laser Cutting Machine:
