• Model NO.：30w
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Speed：>7000mm,S
• Min.Line Width：0.11mm
• Min.Character Size：0.15mm
• Marking Area：110*110mm,175*175mm,300*300mm
• Wavelength：1064nm
• Application Material：Metal
• Warranty：3 Years
• Transport Package：Wooden Case
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. 30w Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Speed >7000mm/S Min.Line Width 0.11mm Min.Character Size 0.15mm Marking Area 110*110mm/175*175mm/300*300mm Wavelength 1064nm Application Material Metal Warranty 3 Years Transport Package Wooden Case Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

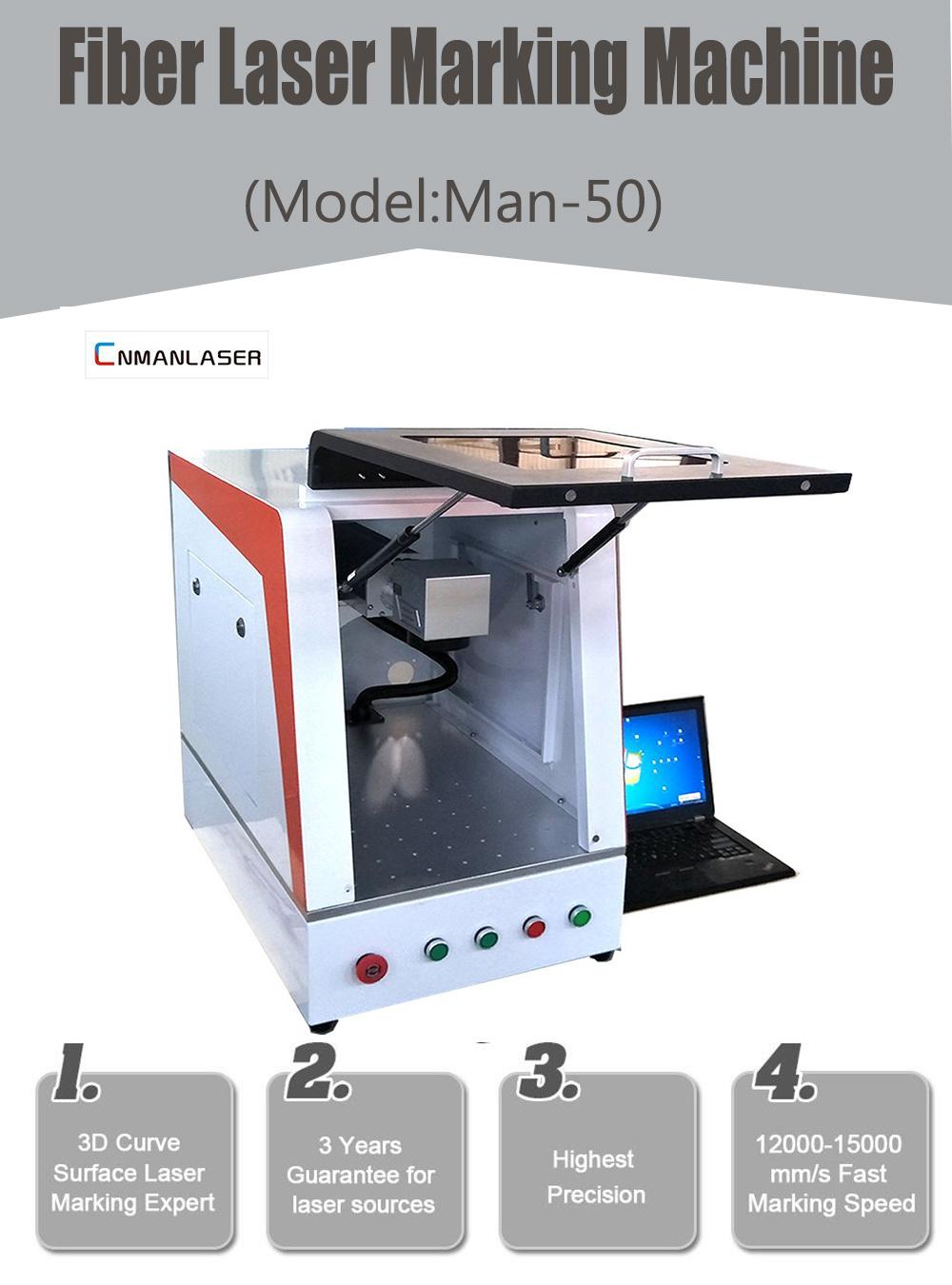

30W  high speed Fiber Laser Marking Machine for Code Logo Date

(Model:Man-50)



Model	MAN-50
Laser Type	Laser Marking machine
Laser Wavelength	1064um
Marking Area	110×110mm / or Customized
Marking Speed	250 Characters / Second
Minimal Character Size	0.25mm
Minimal Line Width	0.015mm
Power Supply	380V / 50Hz
Cooling Method	Air Cooling
Repetition Rate	0~50KHz
Bitmap Format	BMP, JPG, PNG, TIF, PCX, TGA, ICO, PNG, GIF, PLT, etc.,
Power Consumption	0.5 kw

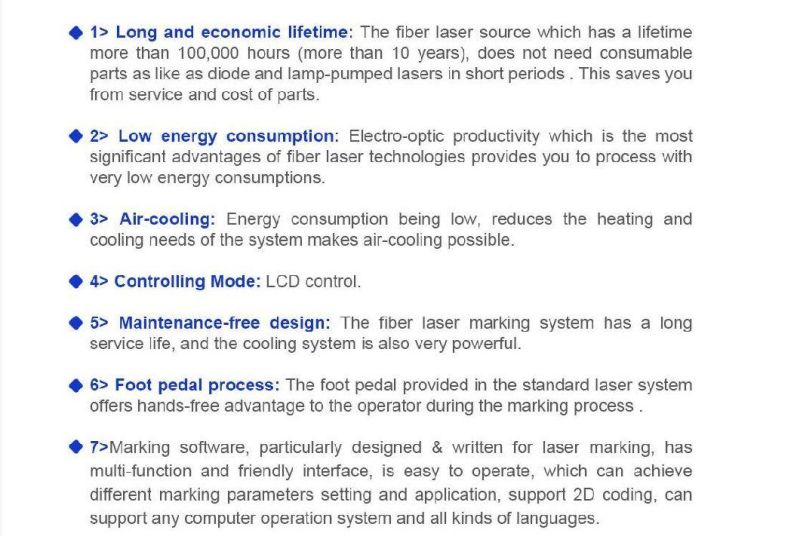

1. Best Marking Effect: The laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.

2. Deep Marking:  Laser Fiber Laser Marking Machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.

3. Higher Accuracy: Fiber laser can reach unto 0.001mm precision, while diode only 0.01mm.

4.10 Years Long lifetime: We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100, 000 hours, so the machine can be used for 8-10 years.

5. No consumables: Fiber laser machine can be used for 8-10 years without any consumables.

6. No need to adjust the laser path.
7. Free of Maintenance.
8. Use Integrated Air Cooling.
9. Low Power Consumption: Low cost, only 0.5kw/hour.
10. Small and compact: The volume of  Laser Fiber Laser Marking Machine is small, only 0.15 M3.

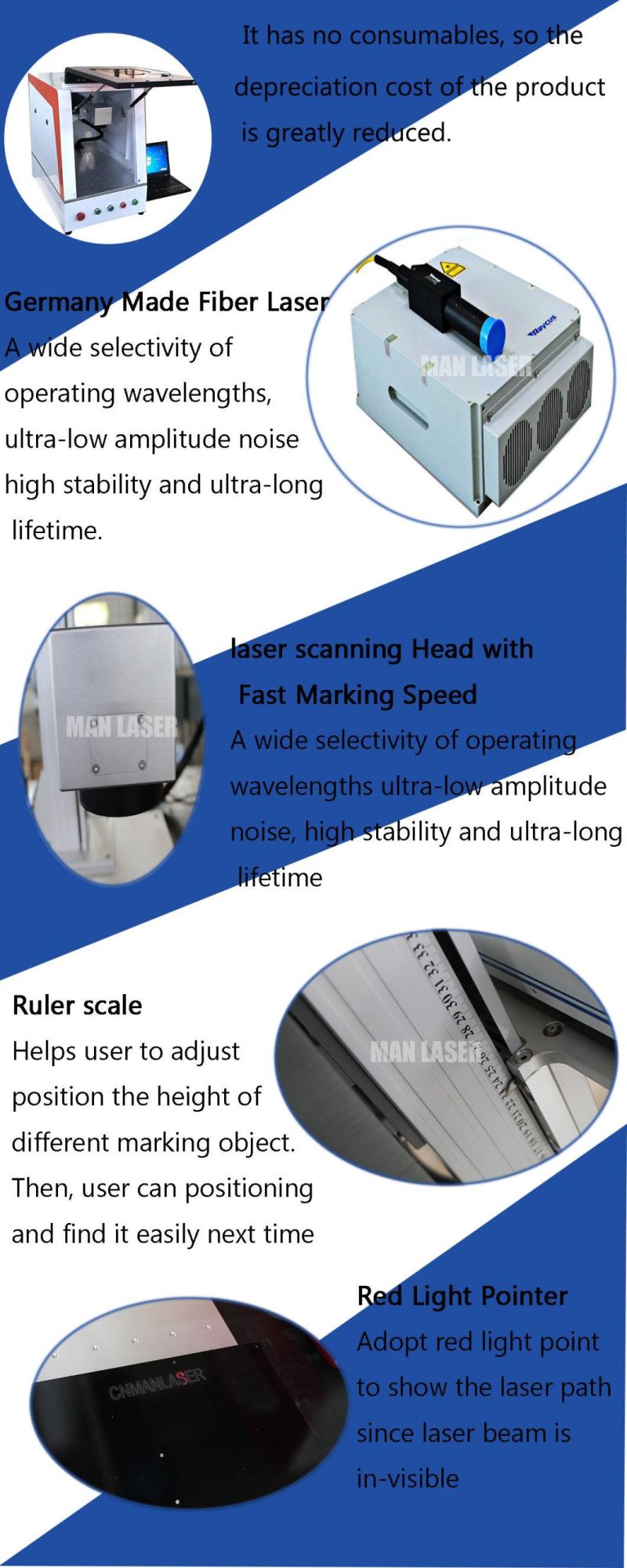

1.Germany Made Fiber Laser Sources>> A Wide Selectivity of Operating Wavelengths, Ultra-Low Amplitude Noise, High Stability and Ultra-Long Lifetime

2. Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.

3. Focus Mirror>> Singapore famous "Wavelength" brand, Fast speed, high transparent rate

4. Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.

5. Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.

6. 3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.

7. Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.

8. Portable Handle>>Easy to held the machine by hand.

9. Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.

10. Key Switch>> Using key swith to control the power of the machine.

11. Main Switch>> It is designed as a easy button, safe and efficient.

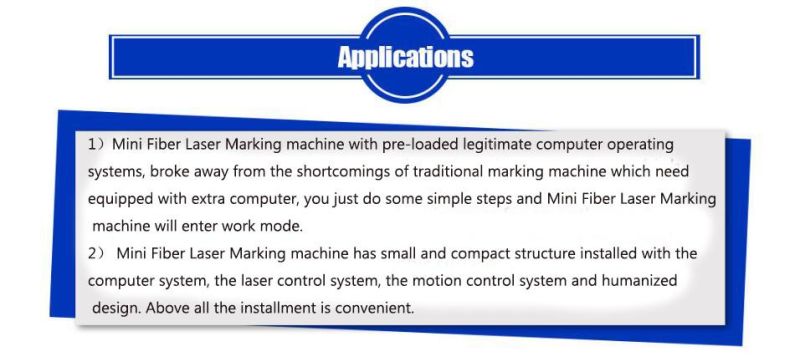

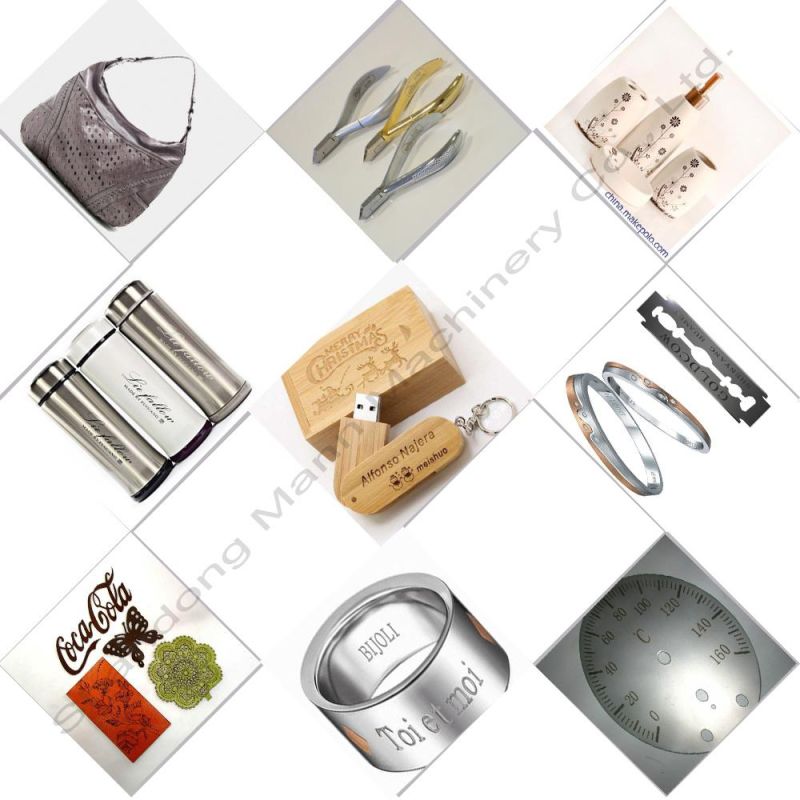

  This type mini fiber laser marker is suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts,Plastic& Paper Materials, the Electron, Hardware which with high request for depth, smooth,accuracy such as horologe, Mould, bitmap marking etc.




1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)

2) Free Training Factory:You can send operator to  Laser factory for free training.Laser will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)

3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.

Quality Guarantee and After-sales Services
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;
Operational marking software backup;
Quick supplement of key componentsUU with reasonable price.
Life-long after-sales service & consulting service to user.
