• Model NO.：LSM30F
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Fiber Laser：Raycus
• Comtrol System：Jcz
• Operation System：Microsoft Windows 7. 8. 10 System
• Power Supply：220V,60Hz,8A(110V,60Hz,15A Can Choose)
• Control Software：Ezcad
• Features：Color Marking on Stainless
• Transport Package：Plywood Boxes
• Specification：780*680*510mm
• Trademark：Lansen
• Origin：China
• HS Code：8456110090

Basic Info.

Model NO. LSM30F Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Fiber Laser Raycus Comtrol System Jcz Operation System Microsoft Windows 7. 8. 10 System Power Supply 220V/60Hz/8A(110V/60Hz/15A Can Choose) Control Software Ezcad Features Color Marking on Stainless Transport Package Plywood Boxes Specification 780*680*510mm Trademark Lansen Origin China HS Code 8456110090

Product Description

Mini 30W Handhold Fiber Laser Maker for Tyre Fibre Printer
Lansen Laser is the world famous fiber laser marking machine manufacturers and suppliers, recently launched a new laser marking machine: Handheld Fiber Laser Marking Machine .

This type of laser marking machine can remove the original fixed bracket and make handheld marking, the laser marking machine mini structure and handheld design can meet a variety of production needs, the laser marking machine is compact and mini size, small footprint, marking speed is twice as the same type of laser. Adopting high quality fiber laser, the core components of the life length up to 20,000-100,000 hours or more, no need of consuming materials
 Parameters:

Laser Source	Fiber Laser
Output Power	20w/30w/50w/100w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110x 110mm/ 200x 200mm(optional)/300*300mm(optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220V / Single-Phase Circuit / 50/60Hz /4A

 Features:

1. Fiber laser, Basic model, high speed galvo scanner; IPG laser and Chinese Brand laser for option.
2. Maintenance Free, save equipment and worker cost;
3. Imported Galvonometer, Higher precision,faster speed;
4. Higher photoelectric conversion efficiency,  Low power consumption;
5. Red light preview, more accurate and reduce positioning time;
6. Laptop with Powerful marking software;
7. User friendly software interface, easy operation;
8. Set and deal different layers graphic separately;
9. Support PLT,PCX,AL,DXF, BMP,JPG formats file;
10. Compatible AutoCAD,CorelDraw,Photoshop etc software, Automatic serialization,date coding letter, symbol, pattern, figure, image, bar code, 2D code  auto  arrangement and amendment.

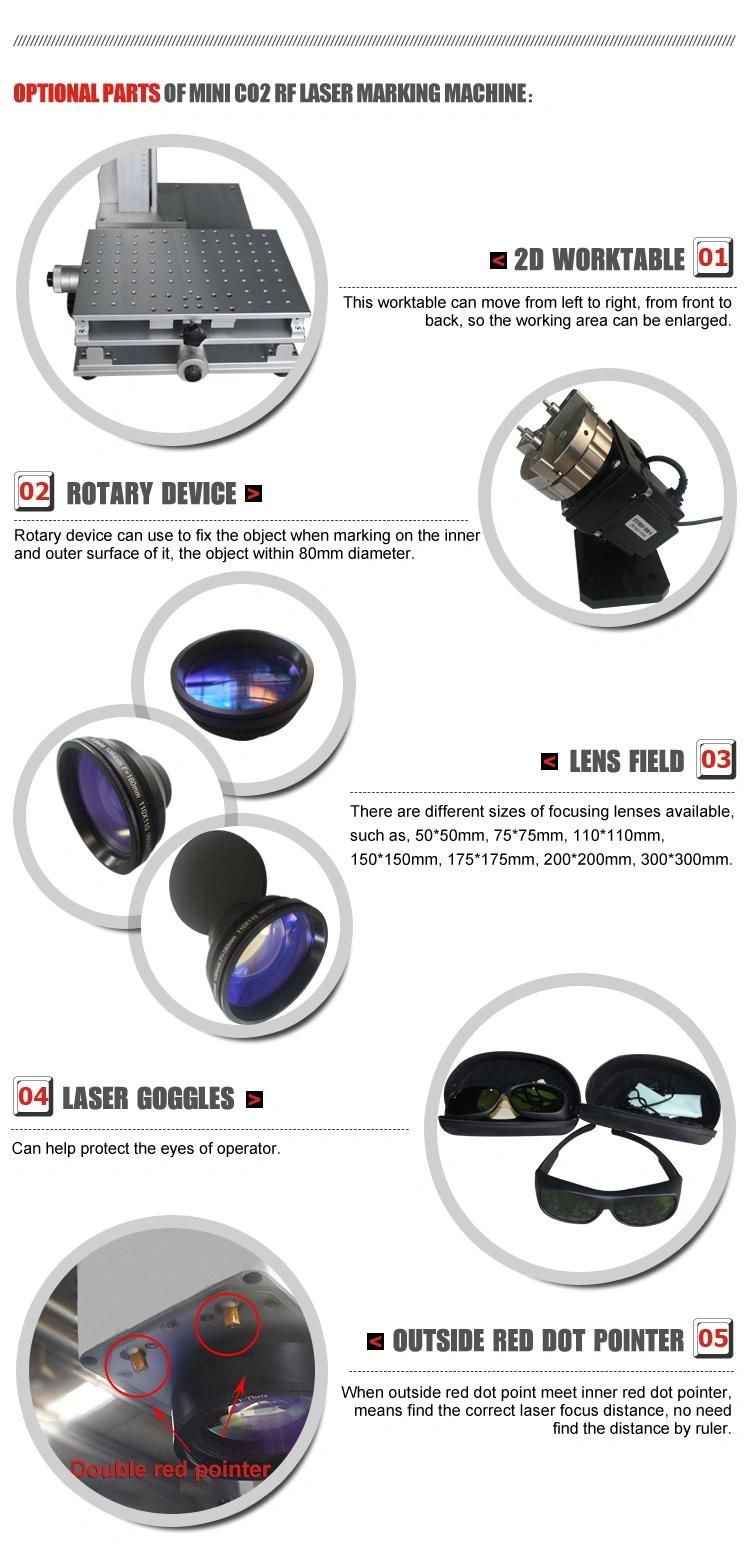

Machine details:







Applications:


Aplicable Industries:
1. Electrical Engineering and Electrical part and component
2. Mobile (Cover, battery, keyboard, Phone Case)
3. Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4. Building materials,PVC pipe
5. Car motor car spare part, Instrument and meters and cutting tool
6. Plastic case,aviation and aerospace,
7. Product,hardware fitting and accessory,sanitary appliance
8. Food and beverage ,Medicine package and medical instrument,solar Pv industry
Applicable Materials:
1.Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
2.Alloy and metal oxides: Anodized Aluminum
3.Some non-metallic materials & Special surface treatment:
   silicon wafer, Poly,urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.



Warranty:

1. 24 Months for Machine
2.  Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.
3.  Lifely and fast technical guide and solution within 24hours by email and web camera.
