Aluminum Metal Window Frame Wobble Head Laser Welding Machine 2000W
JINAN XINTIAN TECHNOLOGY CO., LTD.- After-sales Service：Online Service
- Warranty：2 Years Warranty
- Application：Biomedicine, Electronic Industry, Automotive Industry, Manufacturing Industry
- Technical Class：Continuous Wave Laser
- Control：Automatic
- Power Density：Deep Fusion Welding
Base Info
- Model NO.：XTW2000
- Laser Classification：Optical Fiber Laser
- Type：Optical Fiber Transmission Laser Welding Machine
- Laser Source：Raycus Max Ipg
- Welding Head：Qilin Hanwei Double Wobble
- Chiller：Built-in
- Touch Screen：Yes
- Control System Language：8 Language Optional, English French
- Auto Wire Feeder：Yes
- Consumables：Protective Lens and Nozzles
- Protective Glasses：Yes
- 1kw and 1.5kw Power Required：220V,Single Phase
- 2kw Power Required：380V
- Fiber Optical Length：8m
- Auxiliary Gas：N2,Argon
- Spot Size：Spot Diameter Is Adjustable, From 0.2 to 5mm.
- Spot Mode：6 Spot Mode Optional
- Welidng Gun Weight：1kg
- Transport Package：Plywood
- Specification：143*82*135cmx280kg
- Origin：China
- HS Code：8515809090
Description

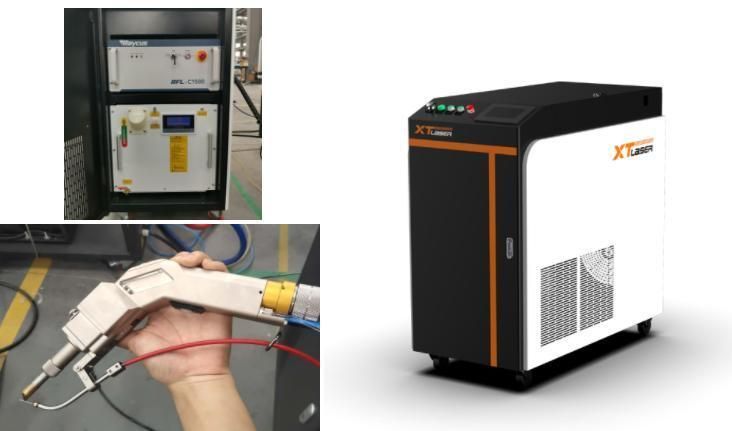

Overview

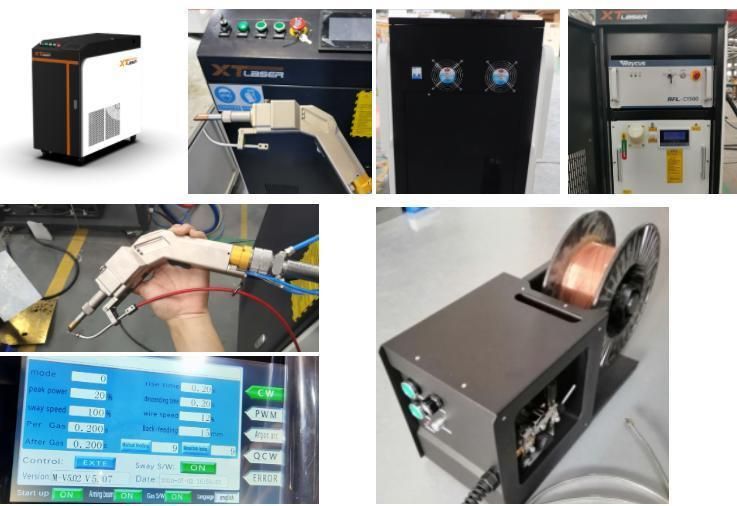

Machine photo Material Max welding dept No. Machine power 1kw 1.5kw 2kw 1 Stainless Steel ≤2mm ≤3mm ≤5mm 2 Mild Steel/ Iron ≤3mm ≤4mm ≤6mm 3 Aluminum/ brass ≤2mm ≤3mm ≤4mm

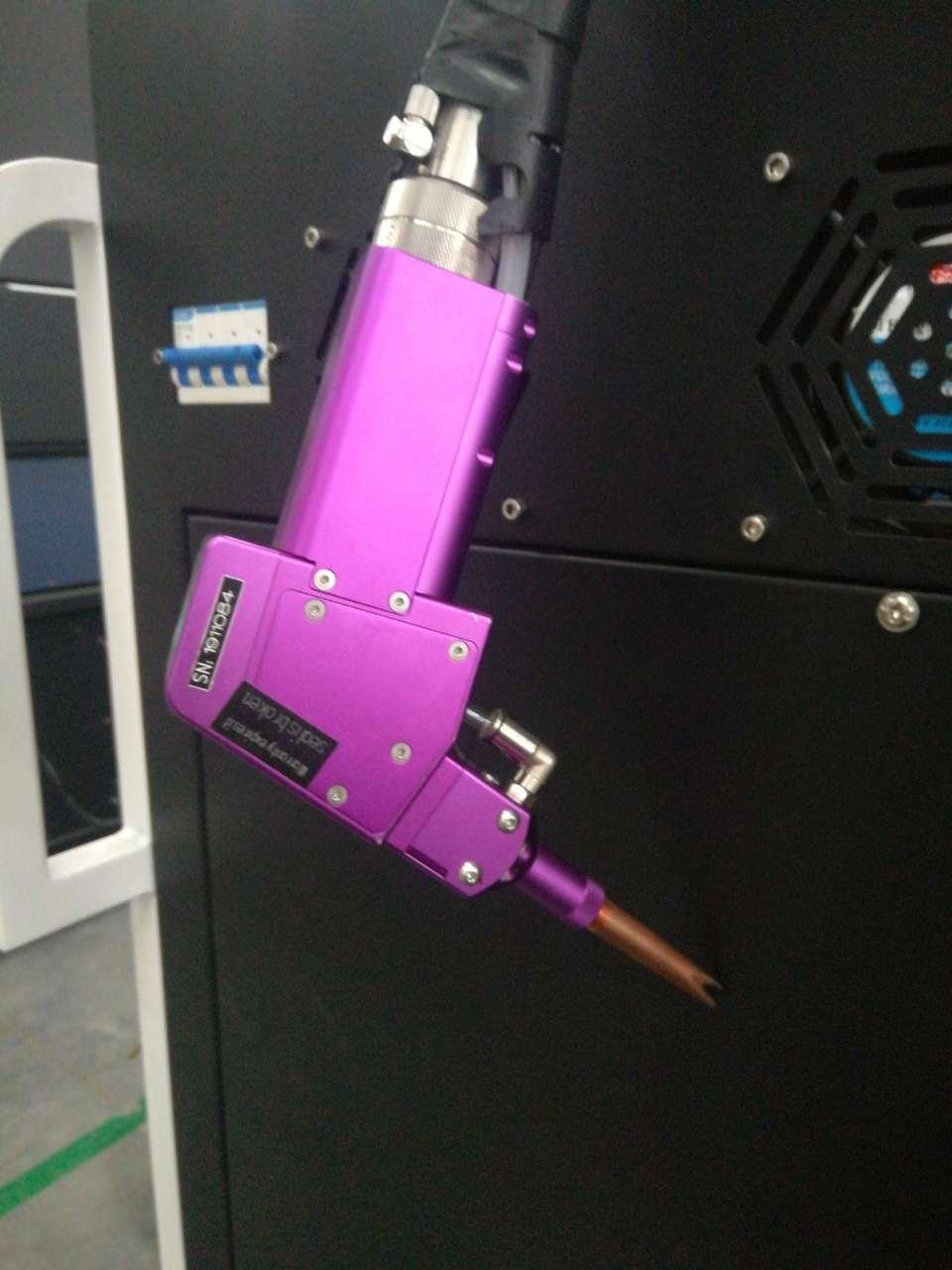

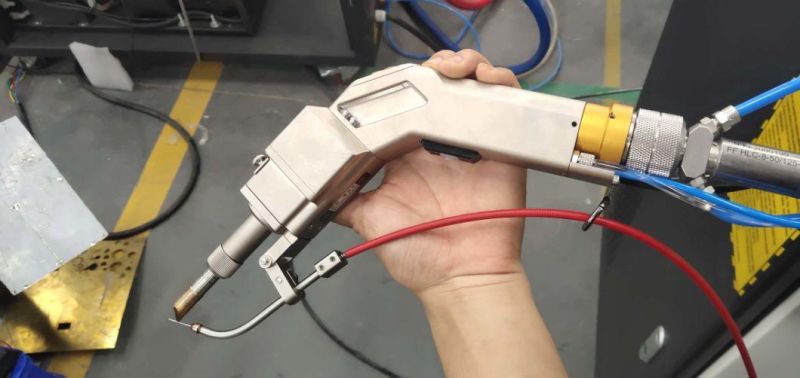

Welding head is double wobble type.
6 spot mode optional: Spot; line;"O",double"O";triangle;"8"type
spot diameter is adjustable, from 0.2 to 5mm.
Brand is optional.
For 1kw 1.5kw, Hanwei and Qilin brand.
For 2kw,Hanwei brand.

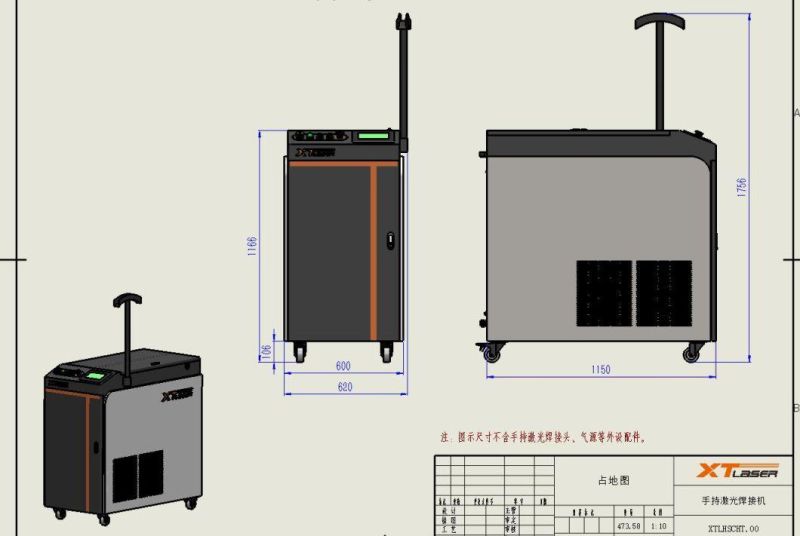

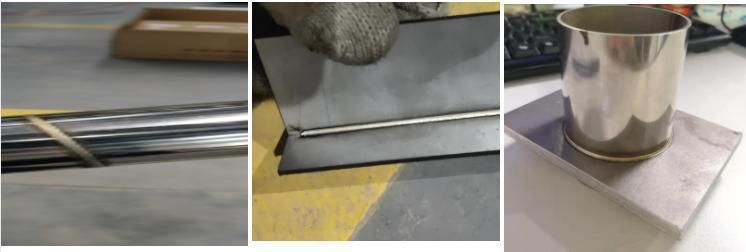

Working videos Machine size (L*W*H):115*62*117cm xt laser handheld welding https://youtu.be/2Yy3vZt8y2Q Stainless steel welding https://youtu.be/2Auwmeq0q8I Brass welding https://youtu.be/2kc1ijc4rJI stainless steel welding https://youtu.be/fXO8B_MmjXQ
Net Weight:260kg
Package size:143*82*135cm/71*35*48cm
Gross Weight:280kg/48kg
Package type:Ply-wood case;
