• Model NO.：MFP-70W
• Transport Package：Carton
• Specification：345*267*120mm
• Trademark：MAX LASER
• Origin：China
• HS Code：9013809000
• Production Capacity：1000 Sets Per Month
• Package size per unit product：60.00cm * 40.00cm * 30.00cm
• Gross weight per unit product：20.000kg
• Lead Time：7 days (1 - 1 Sets) 15 days (2 - 5 Sets) 25 days (6 - 10 Sets) To be negotiated ( > 10 Sets)

Marking EffectsMark on Aluminum OxideMark on Stainless  Steel     Mark on Plastic


1. Feature:
MFP Q-switch series pulsed fiber laser is designed based on Q-switch oscillator and MOPA. The laser is transmitted by fiber and isolator, and is controlled through a 25-pin interface. The Q-switched pulse fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc.
Main features:
1.1 Narrow light pulse, high peak power, wide repetition frequency range
1.2 High reliability, long service life
1.3 There will be no shadows and virtual disconnection in special material processing
1.4 Universal 25-pin interface


2. Application Advantage:2.1 Excellent Single Pulse EnergyHigher single pulse energy makes our laser applicable to more types of materials and applications2.2 New Compact and Rugged Design>40% reduction in volume Higher flexibility when integrated into system
2.3 Wide Application Even with Highly Reflective MaterialHigh performance isolator effectively reduces reflection damage to the laser source Smoothly marking on aluminum, copper and brass etc
2.4 High Level Vertical IntegrationAll key components are designed and produced in house Strict quality control, high consistency and reliability

3. Main Technical Parameters

No.	Model	MFP-70W
1	Average output power rate	More than 70W
2	Central Emission Wavelength	1064 ± 5 nm
3	Output Power Stability	≤ 3 %
4	Max. pulse energy	1.45 mJ
5	Repetition frequency adjustment range	50-170 kHz
6	Pulse Width	100~140 ns
7	Beam Quality	1.3-1.8
8	Supply DC Voltage (VDC)	24 VDC
9	Beam Diameter	6-8mm
10	Beam Ellipticity	>90%
11	Fiber Laser	3m
12	Operating Temperature	+10 to +42ºC
13	Storage Temperature	-10 to +60ºC
14	Humidity	10 to 95%
15	Polarization Oritentation	Random
16	Output Power Tuning Range	0-100%
17	Dimension	345*267*120mm
18	Weight	12 kg
19	Cooling Method	Air Cooling

4. Related Products
4.1 Galvanometer Scanner: SINO-GALVO

4.2 Field Lens: WAVELENTH

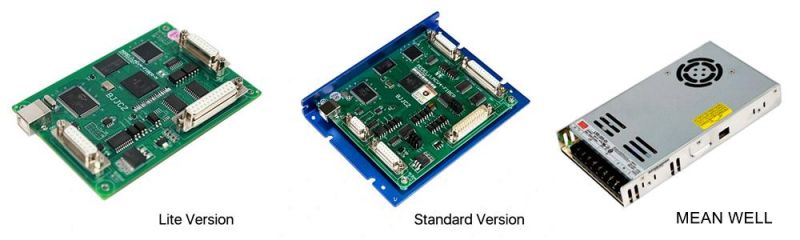

4.3 Marking Card/ Power Supply: BJJCZ/ MEAN WELL

4.4 Rotary Device (If need)
5. Company Introduction
CCILASER is headquartered in Jinan City, China. It is a world-renowned laser equipment company and a high tech enterprises integrating R&D, production and sales.

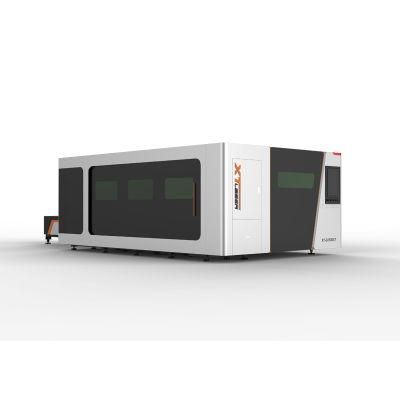

We are adhering to the tenet of "Quality first, customer first" and continues to grow. Main products include fiber laser cutting machine, plasma cutting machine, laser marking machine, laser engraving machine, laser welding machine and laser cleaning machine and etc.

Our company has passed ISO and CE international quality management system certificates, and has obtained FDA certification for the US market. We have our independent export rights.Machines are exported to more than 50 countries and regions.

Wish cooperating with you to create a better future!

8. FAQ

A. Question: What kind of our company is CCILASER?

Re: CCI is laser marking machines, laser welding machines, laser marking machines manufacturing expert since year 2002.

B. Question: How is MAX Laser Source guarantee?

Re: b1. MAX Laser Source warrenty period is 24 months after BL time;

b2.12 hours technical support feedback;

b3. Own machining factory, which can control the spare parts quality at high quality;

b4.  Own accessories warehouse and user can enjoy the agent price.

C.Question: How is delivery time?

Re: We can delivery the machines within 7 days if we have the machines in stock.

The common machine fabricating time is 15-25 days and CNC machine fabricating time is about 25-50 days.If you have customized products, the delivery time will be given after confirmation.

D. Question: How is payment?

Re: 50% of amount as deposit and the balance should be paid by T/T or LC at sight before seller delivery the machines to loading port.

E.Question: How is our package?

Re: Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.

F. Question: Why is price higher than other supplier?

Re: f1. We have our own machining factory and the high quality technical quality is our aim;

f2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;

f3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;

f4. Our warrenty period is 24 months after BL time. It can support the new comer client going well in the beginning time.
