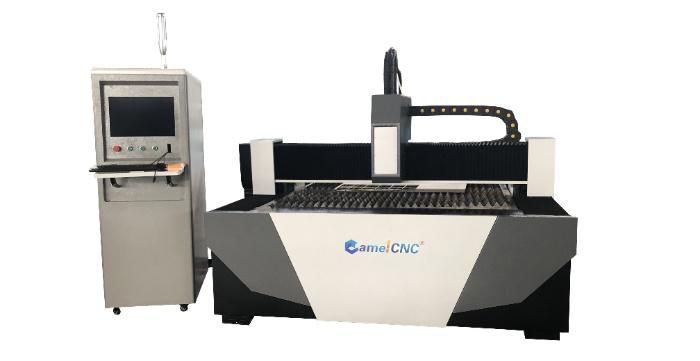

Ca-F1540 1000W 2000W 3000W 6000W Metal Sheet Fiber Laser Cutting Machine

Jinan Camel CNC Machinery Co., Ltd.

Warranty：2 Years
Application：Environmental Equipment, Agriculture Machinery, Automotive Industry, Advertising Industry

Base Info

Model NO.：CA-F1540
Cooling System：Water Cooling
Technical Class：Continuous Wave Laser
Applicable Material：Metal
Structure Type：Desktop
Laser Classification：Fiber Laser
Laser Technology：Laser Control Fault Cutting
Working Area：4000X1500mm
Laser Power：1500W
Laser Wavelength：1064nm
Application Materials：Metal
Max. Cutting Thickness：Ss:6-8mm,Ms:12-16mm,Aluminum:3mm
Gross Power：9kw
Positioning Accuracy：±0.03mm,M
Reposition Accuracy：±0.02mm
X/Y-Axis Maximum Simultaneous Positionin：140m,Min
U-Axis Max.Moving Speed：30m,Min
Rotary System：Optional
Transport Package：Plywood Case
Specification：3800*2280*1860mm
Trademark：Camel CNC
Origin：Shandong
Production Capacity：10000set,Month
Package size per unit product：380.00cm * 228.00cm * 186.00cm
Gross weight per unit product：3000.000kg

Description

Working voltage Three phase,380V,50/60HZ
Working size 1500*4000mm
Taiwan HIWIN Linear Guide Rail
X,Y Axis Japan FUJI 1000W Servo motor and Driver, Z axis 400w FUJI Servo motor with brake and driver, total 4 sets.
High speed TAIWAN YYC rack gear Transmission
Original CypCut control System
Raytool Adjust Laser head
MAX 1500W Fiber laser generator
Japan Shimpo reducer
10.HL1500 water chiller

ModelCA-F1540Working area4000x1500mmLaser Power1500WLaser Wavelength1064nmApplication MaterialsMetalMax. Cutting ThicknessSS:6-8MM,MS:12-16MM,Aluminum:3mmGross Power9KWPositioning Accuracy±0.03mm/mReposition Accuracy±0.02mmX/Y-axis Maximum Simultaneous Positioning Speed140m/minU-axis max.moving speed30m/minCooling ModelWater coolingRotary systemOptional Ca-F1540 1000W 2000W 3000W 6000W Metal Sheet Fiber Laser Cutting Machine

Ca-F1540 1000W 2000W 3000W 6000W Metal Sheet Fiber Laser Cutting Machine

Laser Cutting Machine Display

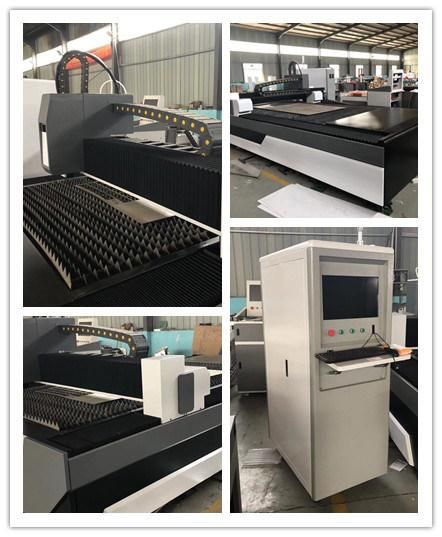

Details of laser cutter

Ca-F1540 1000W 2000W 3000W 6000W Metal Sheet Fiber Laser Cutting Machine

Sample Display

Ca-F1540 1000W 2000W 3000W 6000W Metal Sheet Fiber Laser Cutting Machine

Ca-F1540 1000W 2000W 3000W 6000W Metal Sheet Fiber Laser Cutting Machine

Ca-F1540 1000W 2000W 3000W 6000W Metal Sheet Fiber Laser Cutting Machine
