• Laser Technology：Laser Control Fault Cutting
• Name：Fiber Laser Cutting Machine
• Laser Power：500W,750W,1000W,2000W,3000W
• Fiber Laser Generator Type：Ipg,Raycus,Rofen
• Laser Wavelength：1064nm
• Fiber Laser Cutting Head：USA Lasermech
• Motors&Drivers：Japan Servo
• Guide Rails：Taiwan Hi-Win or PMI or Abba Square Guide
• Water Chiller：Teyu( S&a) or Doluyo or Hanli Brand
• Control System：Professional Laser Control System--Cypcut
• Power Consumption：12kw
• Transport Package：Standard Export Plywood Case
• Specification：1500x3000mm
• Trademark：STARMAcnc
• Origin：China
• HS Code：8456110090
• Production Capacity：50 Sets Per Month

Machine Model1500*3000mm or 1300*2500mmLaser power300W/500W/750W/1000W/2000W/3000W/5000WFiber laser Generator typeIPG/Raycus/RofenLaser wavelength1064nmLaser Beam quality<0.373mradWorking TableSawtoothFiber Laser cutting headUSA LasermechFocus lensUSA LasermechWorking life of fiber moduleMore than 100000 hoursMotors&DriversJapan servo motorGuide RailsTaiwan Hi-win square guideTransmit systemGear Rack and Taiwan Hi-win ball screwWater ChillerTEYU( S&A) or DOLUYO or HANLI brandControl systemProfessional laser control system--CypcutPosition typeRed DotCutting thickness≤10mm(stainless steel) ≤16mm(carbon steel)Max. Idle Running Speed1400mm/sCutting Speed300mm/sPosition Accuracy±0.05mm/mPosition Speed20m/minMin. Line Width±0.02mmPower Consumption≤12KWVoltage380V/50HZ or 380V/60HZ,3PH Auxiliary Gas for cuttingOxygen, Nitrogen, AirCompatible softwareAutocad, Coreldraw, etcGraphic formatNcWorking methodPC controlTotal power protection ratingIP54



Working principle:

It is mainly used for plate cutting into the required shape workpiece laser machine. Using a laser beam to the realization of thermal cutting equipment.

Laser cutting is a laser beam to the surface to the energy released when the workpiece melting and evaporation, to achieve the purpose of cutting and carving, has high precision, fast cutting, cutting pattern is not limited to restrictions, automatic typesetting save materials, incision smooth, low processing cost etc, gradually improve or replace the traditional cutting process equipment.

Characteristics/Advantage of our fiber laser cutting machine :
1.Stability and reliability of light path system and control system
2.Focused laser beam ensure that slim cutting kerf is only 0.15-0.2mm wide for perfect cutting effect.
3.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours
4.Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and
excellent cutting edge with little thermal deformation,smooth and aesthetic appearance
5.German high performance reducer,gear and rack;Taiwan Hi-win guide and ball screw.
Almost maintenance-free because without reflector,there is no need to adjust optical path
6. Specially used for cutting 0.5-12mm carbon steel,0.5-6mm stainless steel,galvanized steel,electrolytic zinc-coated steel sheet,silicon steel and other kinds of thin metal sheets

Applicable industries and materials:

The equipment is mainly  used cutting carbon steel,silicon steel,stainless steel,aluminum alloy,galvanized steel sheet,picking board,aluminum zinc plate,copper and many kinds of metal materials cutting and so on.

The equipment is mainly applied in sheet metal processing,aviation,spaceflight,electronics,electrical appliances,subway parts,automobile,machinery,precision components,ships,metallurgical equipment,elevator,household appliances,gifts and crafts,tool processing,adornment,advertising,metal foreign processing various manufacturing processing industries.

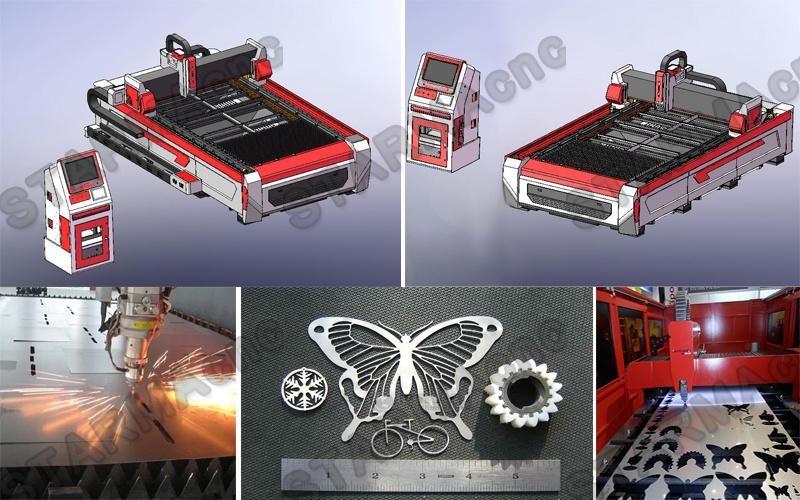

Samples:


500W 1000W 2000W 3000W 4000W 3015 CNC Fiber Laser Cutting Machine for Stainless

Packaging and delivery:

DeliveryWithin 7 working days for production, we will arrange delivery after received the total paymentPackingFirstly, Packed the machine with plastic sheet for clearing and damp proofing.
Secondly, Then put the machine in the plywood case for safety and clashing.
Thirdly, Transport the plywood case into the container.

Guarantee:
1.36 months guarantee of the whole machine
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the consumable parts at an agency price when you need replacement
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary

Payment terms:
T/T 30% payment for deposit, after the machine finished, we will take the testing videos for you to check the machine, after you satisfied the machine you pay the left 70% payment. Then we will delivery the machine.

After-sale service:
1. 24hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for machine (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life

Our fiber laser cutting machine workshop:



Our other type fiber laser cutting machine:


Company(OEM)production:

We are located in jinan City of China, a manufacturer of cnc router, cnc laser and plasma cutting machines.

STARMAcnc has over 58 employees and a factory with more than 10000 square meters. We has our own design and development department.At the same time created "STARMAcnc" brand.

Each product is strictly examined according to ISO9001 (QCS) and ISO14001 (EMS) standards before it is sent out of our factory. And up to CE &FDA &SGS certificate and win Alibaba good faith enterprise.STARMA persist on the mission of "supplying our customers with the best CNC&Laser equipments and solutions".

In us, TOP QUALITY&FIRST-RATE SERVICE IS OUR SOUL AND CULTURE! BELIEVE US AND CHOOSE US, YOU ARE RIGHT!


500W 1000W 2000W 3000W 4000W 3015 CNC Fiber Laser Cutting Machine for Stainless




FAQ :

Question 1:How long about the machine's guarantee ?
Answer :3 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or whatsapp, wechat around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
