• Model NO.：MAN-100w
• Laser Classification：Solid Laser
• Engraving Method：Lattice Engraving
• Laser Technology：Laser Control Fault Cutting
• Voltage：220V(±10%) 50Hz
• Cutting Speed：1-10000mm,Min
• Transport Package：Sea-Worthy Packing or Air-Worthy Packing
• Specification：4cbm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-100w Laser Classification Solid Laser Engraving Method Lattice Engraving Laser Technology Laser Control Fault Cutting Voltage 220V(±10%) 50Hz Cutting Speed 1-10000mm/Min Transport Package Sea-Worthy Packing or Air-Worthy Packing Specification 4cbm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

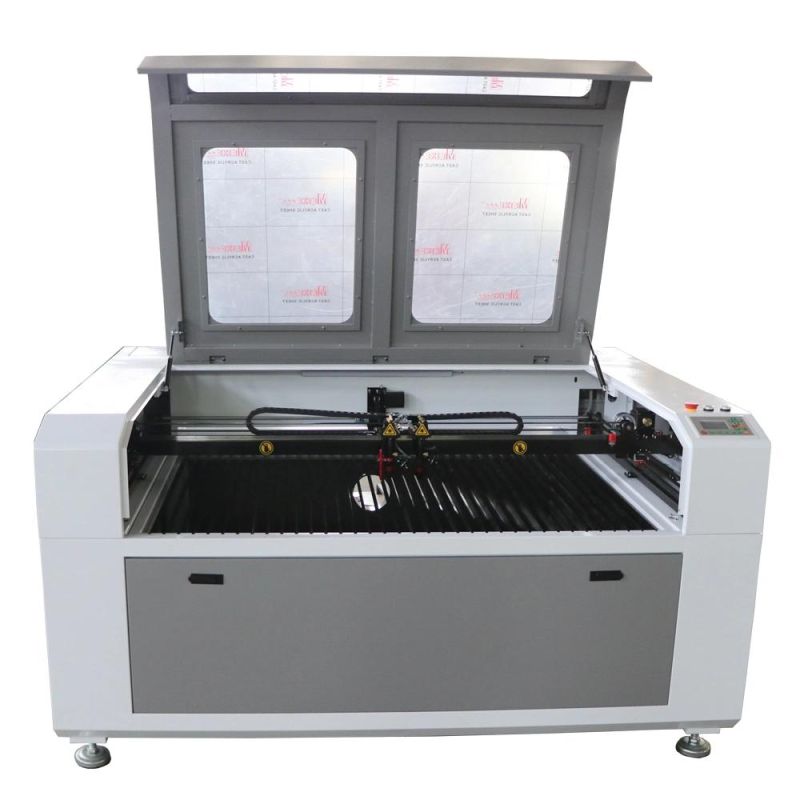

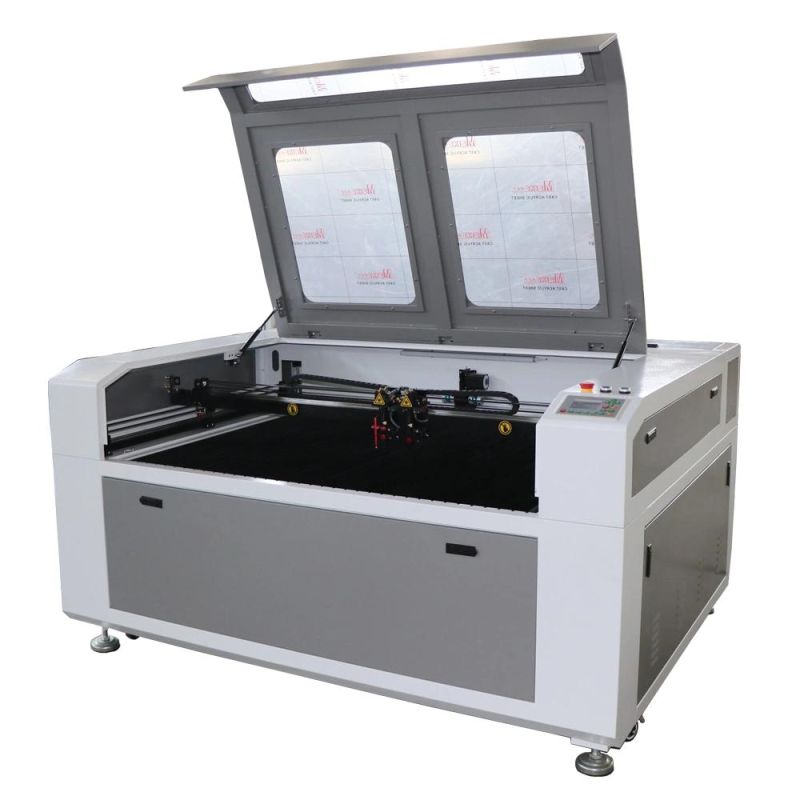

CO2 CNC Laser Engraving Cutting Machine for Acrylic/Wood/Lather/Cloth
MAN-100w




1.The laser machine both can engraving & cutting,and scanning functions,and more functions,widely uesed.
2.Adopt integrated,stable and reliable design framework.
3.All models adoptimported components,ensure the high accuracy,faster speed and longer using life.
4.According to process different materials,can optional knife strip stable,honeycomb table and flat table.
5.the materials can through the laser machine front and rear,materials lenths is unlimited.
6.LCD controlling panel support various languages and clear display,more convenient operation.
7.Combined with the sophisticated technique computer control,precision machinery,DSP digital control technology,USB data transmission and other high-tech.


Effective working area	1300*900mm

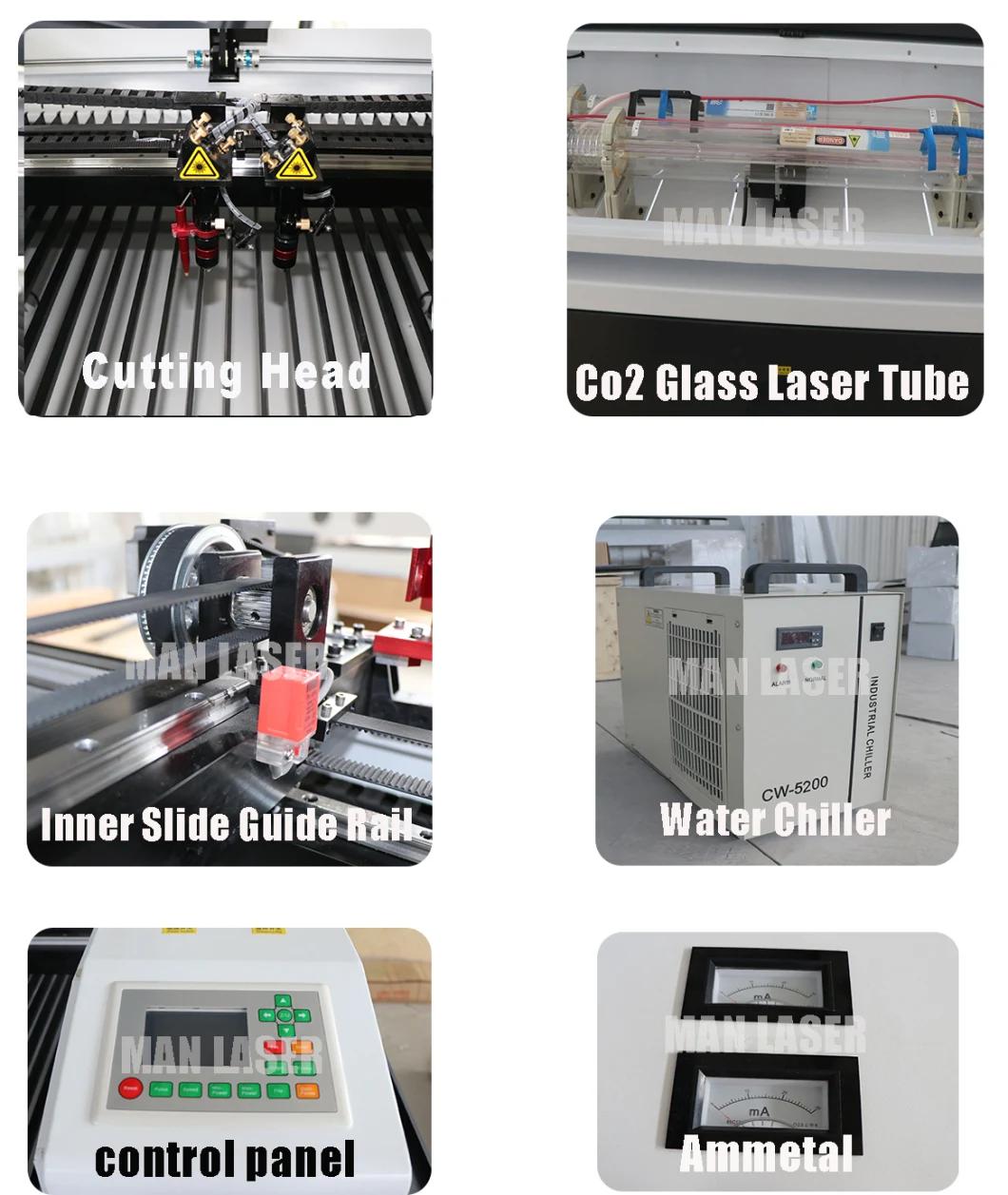

Laser Type	Co2 sealed-off laser tube
Laser tube power	Reci, Beijing (Rated power: 100W, max. Power: 120W)
Working table	Honey comb and knife strip, double working table
Lifting table	Automatic up and down
Driver mode	3 phases stepper motor and Driver
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa
Control software	RDWorks V8
Wifi connection	Yes
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5000 cooling
Water protection system	Yes
Focus	Automatic focus
Blow-off system	Air pump for the laser head Air blower for the machine
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 110V±10% 50/60Hz, single phase or AC 220V±10% 50/60Hz, single phase
Certificate	CE/ FDA/ SGS

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

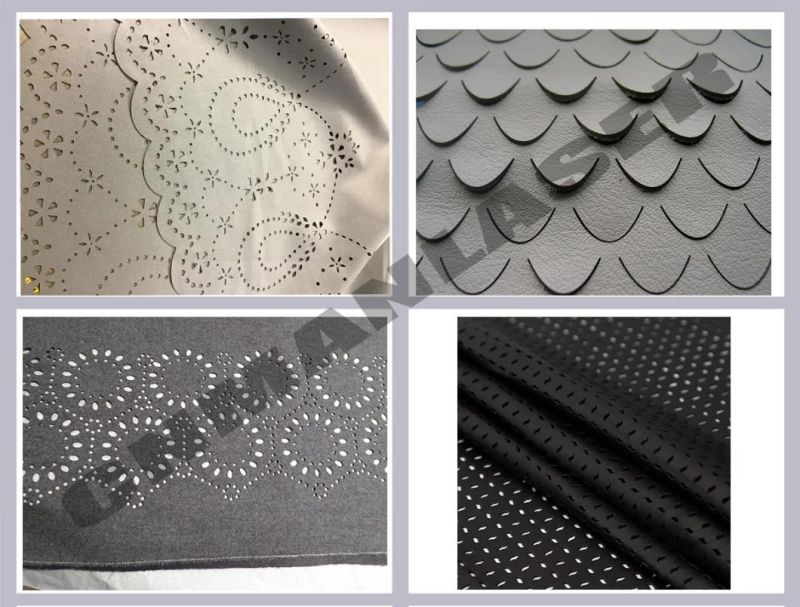

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.






1,How to choose a machine?

   Please let us know your request,then we can recommend the suitable machine for you .Such as:

   1.What kind of material will be cut or engraved? (For choosing suitable laser type.)
   2.What the thickness of your material?               (For choosing suitable laser power.)
  3.What is size for the process material?             (For choosing suitable working size.)

2,How to use it ?
We will send you the instruction manual  in English version  and CD video with machine.
If you still have some doubts, we can talk by telephone or skype. Our engineer also can face to face  to install or adjust machine if necessary.

3,If some problems happened  during warranty period ?
 We will supply free parts for this machine during the warranty period if machine have any problems without man-made reasons,
We also supply free after service forever.

4,How long is the delivery time?
 For standard machines, it would be 7-10 days;
For non-standard machines and customized machines according to client s specific requirements,it would be 15 to 30 days.
 It is our duty to help you offer some documents to client for customs clearance,like invoice,packing list,B/L,and other certificates,etc.

5, What is the price?
  As you know, the price is a little different according to the configuration and models.
