• Model NO.：LM1000
• Laser Power：1000W
• Fiber Cable L：10m
• Wavelength：1060nm
• Port Connect：Qbh
• Scann Speed：0-7000mm,S
• Transport Package：Plywood Box
• Specification：138*86*146cm
• Trademark：Laser Max
• Origin：China
• Production Capacity：600 Sets,Months

Basic Info.

Model NO. LM1000 Laser Power 1000W Fiber Cable L 10m Wavelength 1060nm Port Connect Qbh Scann Speed 0-7000mm/S Transport Package Plywood Box Specification 138*86*146cm Trademark Laser Max Origin China Production Capacity 600 Sets/Months

Product Description

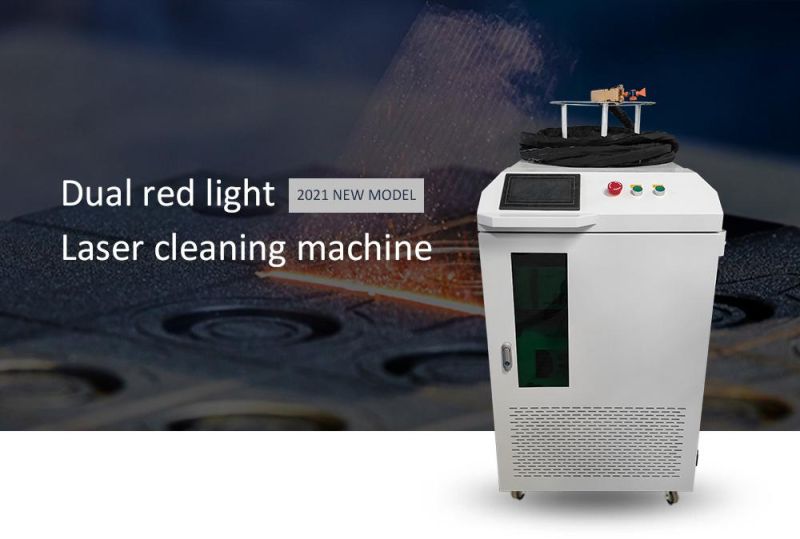

The laser cleaning machine produced by Laser Max Laser is a new generation of high-tech products for surface cleaning. It is very easy to install and operate.

The machine needs no chemical reagent, no medium, dust-free and water-free cleaning, with the advantages of automatic focus, crank surface cleaning and high surface cleanliness.Laser cleaning machine can remove the object surface resin, the paint, the oil pollution, Stains, dirt, rust, coatings, coatings and oxide coatings are widely used in the industry, covering ships, steam repairs, rubber molds, high-end machine tools, track and environmental protection.

Technical Parameters:


Laser source	JPT
Power	1000w
Fiber cable L	10M
Wavelength	1060nm
Port connect	QBH
Scann speed	0-7000mm/s
Focus length	400mm
Swing frequency	150KHZ
Adjustable format	0-55mm
Cleaning head weight	1.12kg

Features:

1. Fast and concentrated pulses with enormous power impact and gasification of residues on the surface;
2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;
3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.
4. Clean or remove the surface paint layer quickly and cleanly;
5. Accurate cleaning and paint removal effect;
6. No damage to the base material;

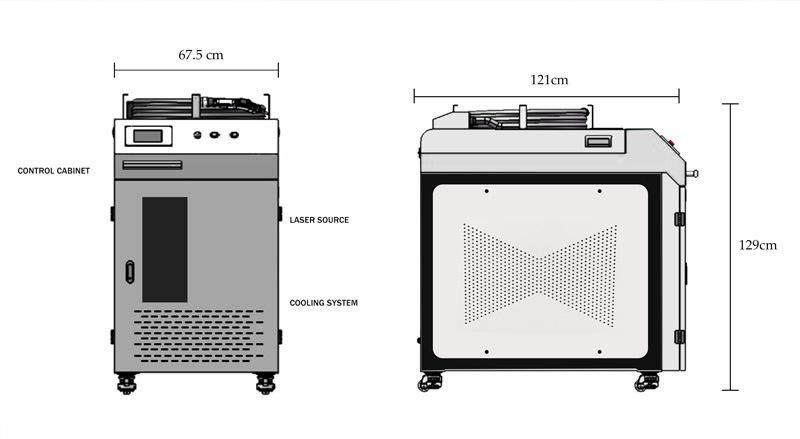

Machine Size:

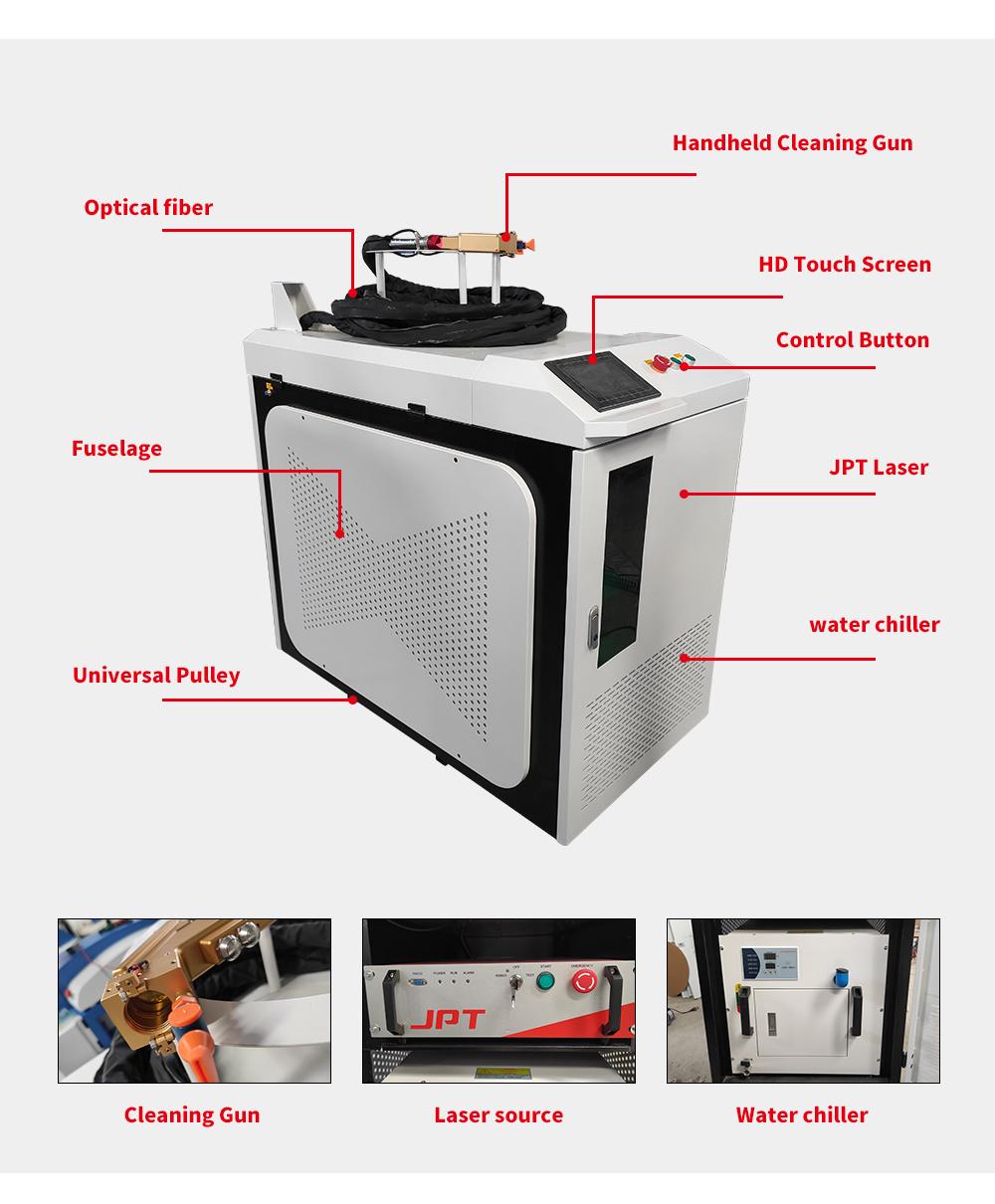

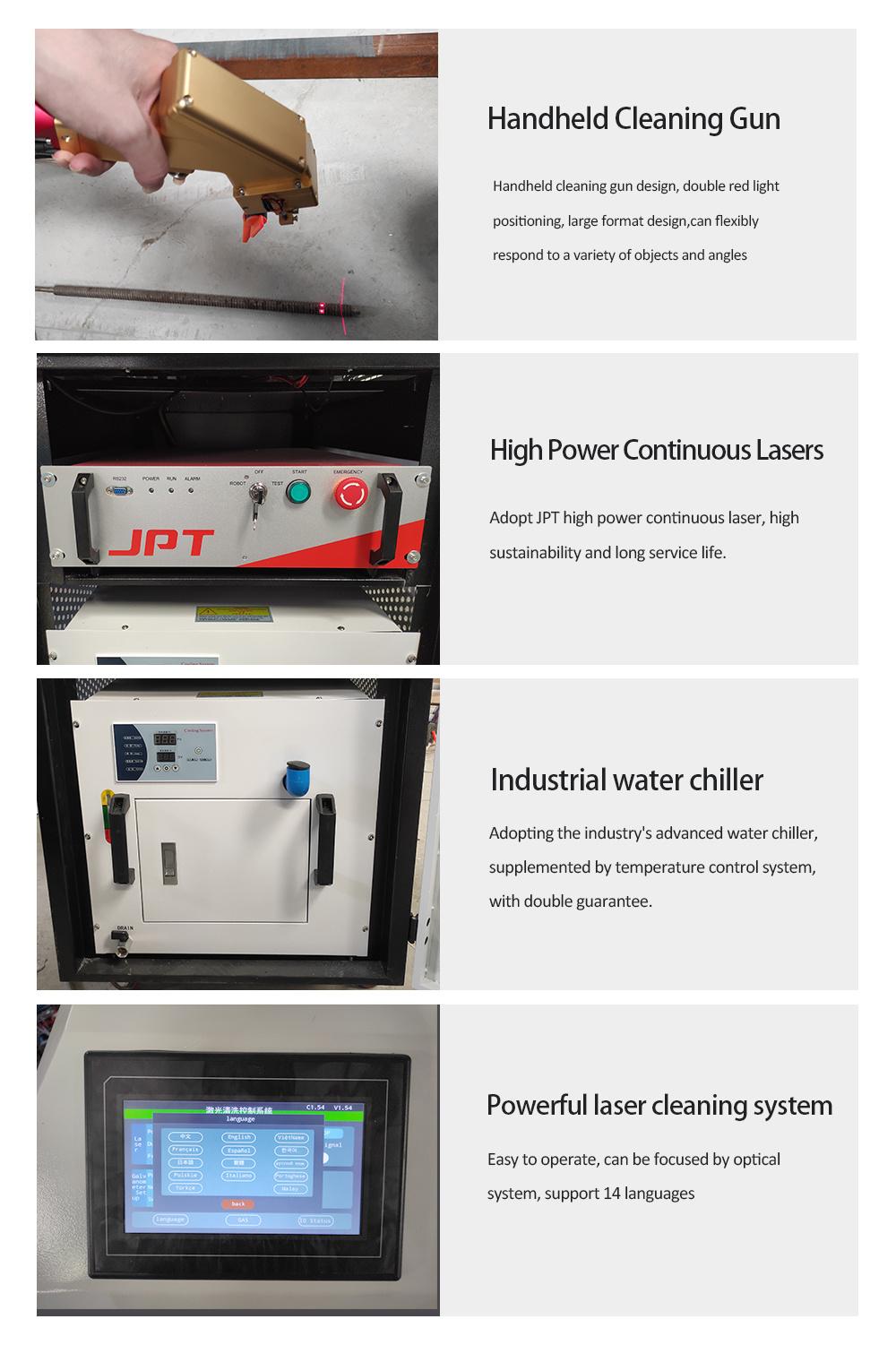

Core Components

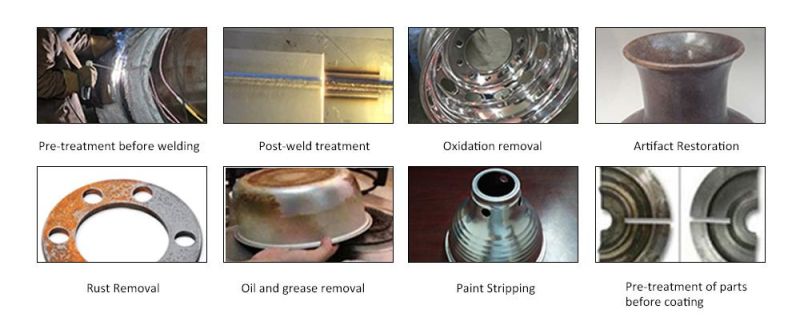

Cleaning Samples

Warranty:
We promise to keep products that are manufactured and shipped according to a formal contract, and we guarantee that every repaired machine will perform well if used correctly. You have the right to repair or replace an item in the warranty period if you have a material or technical problem. We will charge maintenance in normal cases. It will be free if the machine has special problems.

After sale services:
1.12 months quality guarantee, the machine with main parts (not including consumables) will be changed for free if there is any problem during the warranty period.
2. Free training in our plant.
3. We will provide the Consumable Parts at an agency price when replacement is required.
4. Can help you solve problems online or by email in 24 hours, free technical support.
