• Model NO.：LS-YLP-20,30,50L
• Type：YAG Laser Marking Machine
• Marking Method：Scanning Marking
• Model：Ls-Ylp-20L Ls-Ylp-30L Ls-Ylp-50L
• Laser Power：20W;30W;50W
• Power Consumption：<500W
• Wavelength：1064nm
• Engraving Range：Max 400*400mm(Customized)
• Engraving Depth：1.2mm
• Minimum Line Width：0.012mm
• Minimum Character：0.1mm
• Repeated Accuracy：+-0.003mm
• Life of Laser Module：100000hrs
• Transport Package：Wooden Case
• Specification：800*650*1430mm
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. LS-YLP-20/30/50L Type YAG Laser Marking Machine Marking Method Scanning Marking Model Ls-Ylp-20L Ls-Ylp-30L Ls-Ylp-50L Laser Power 20W;30W;50W Power Consumption <500W Wavelength 1064nm Engraving Range Max 400*400mm(Customized) Engraving Depth 1.2mm Minimum Line Width 0.012mm Minimum Character 0.1mm Repeated Accuracy +-0.003mm Life of Laser Module 100000hrs Transport Package Wooden Case Specification 800*650*1430mm Trademark Hispeed or Customized Origin China HS Code 8456100090 Production Capacity 100 Sets / Month

Product Description

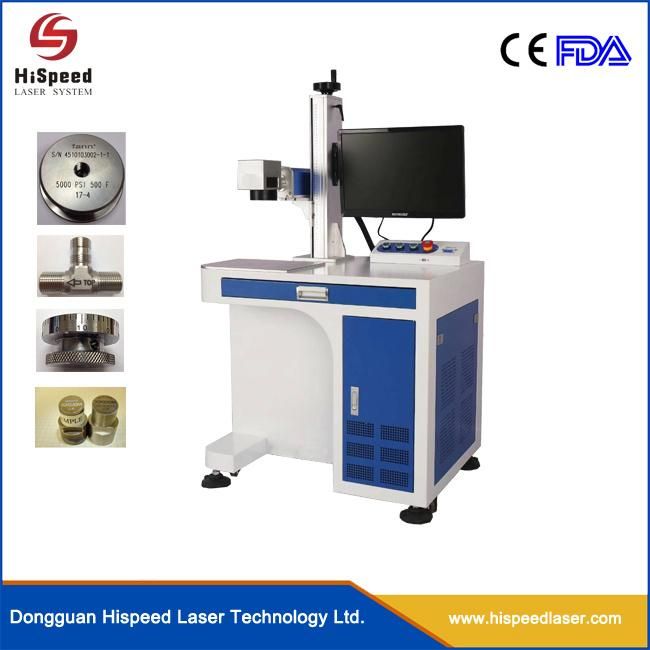

 Fiber laser marking machine for  Medical appliances

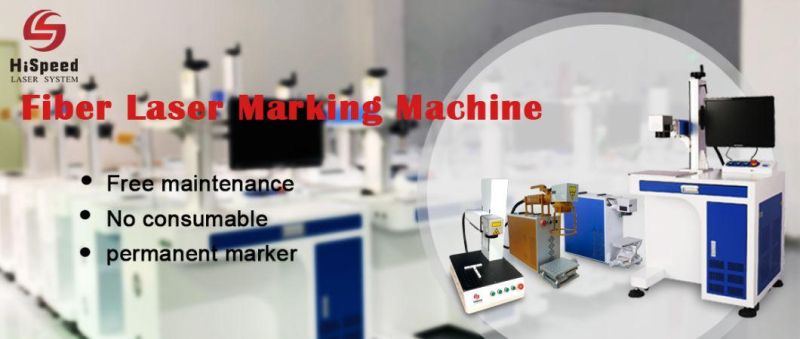

 Introduction of Fiber Laser Marking Machine:
Fiber Laser marking marking machine is widely used in marking engraving on metal and non-metal material. such stainless steel parts, aluminum phone cases printing, plastic parts, pen, annimal ear tag, nameplate and so on.





Features of Fiber Laser Marking Machine:

1. 100000 Hours Long lifetime, No consumables, Free of Maintenance.
2. Best Marking Effect, Deep Marking, Higher Accuracy.
3. No need to adjust the laser path, Use Integrated Air Cooling.
4. Low Power Consumption, Small and compact

Technical Parameters:

Model	YLP-20L	YLP-30L
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

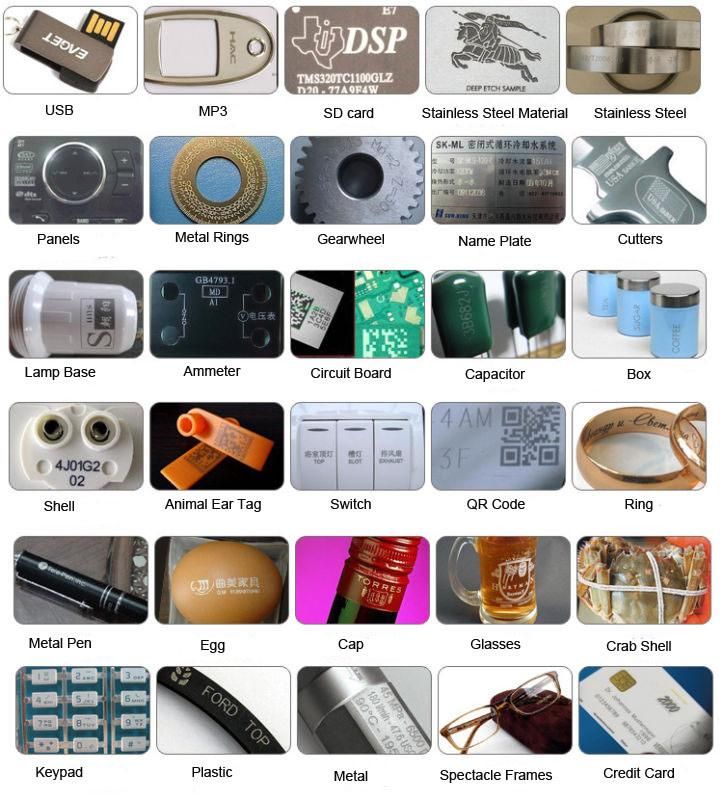

Applicable Materials:



Electronic Components :	Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter:	Panel signs, precision equipment ,etc.,
Instrument:	Panel signs nameplates, precision equipment ,etc.,
Hardware Tools :	Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts :	Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts :	Bearings, gears, standard parts, motors, etc.,
Daily Necessities :	Handicrafts, zipper, key holder, sanitary ware, etc.,
Jewelry Rings:	Jewelry, gold, silver,etc.
Food, drinking packing:	Plastic packings,etc.



Please advise us following inforamtion to recommend you most suitable machine:

1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand.





Looking forward to your inquiry!!!
