• Model NO.：WT-LC1000
• Laser Technology：Laser Control Fault Cutting
• Cutting Speed：100m,Hour
• CNC or Not：Yes
• Graphic Format Supported：Ai, BMP, Dxf, Dxp, Ai,Plt,Dxf,...
• Cutting Area：1250*2500mm
• Usage：Die Board Laser Cutting Machine
• Name：Gy Laser Cutting Machine
• Cutting Thickness：8-30mm
• Cutting Material：Die Board Plywood
• Service：English Engineer Ready to Install Overseas
• Warranty：One Year
• Cutting Precision：0.01mm
• Re Pointing Precision：0.03mm
• Laser Type：CO2 Die Board Laser Cutter
• Weight：5000kg
• Power：3 Phase 380V 50,60Hz
• Transport Package：Export Standard Wooden Case
• Specification：5500x2300x1500mm
• Trademark：WT
• Origin：Dongguan City China Prc
• HS Code：8456110090
• Production Capacity：1000PCS,Year

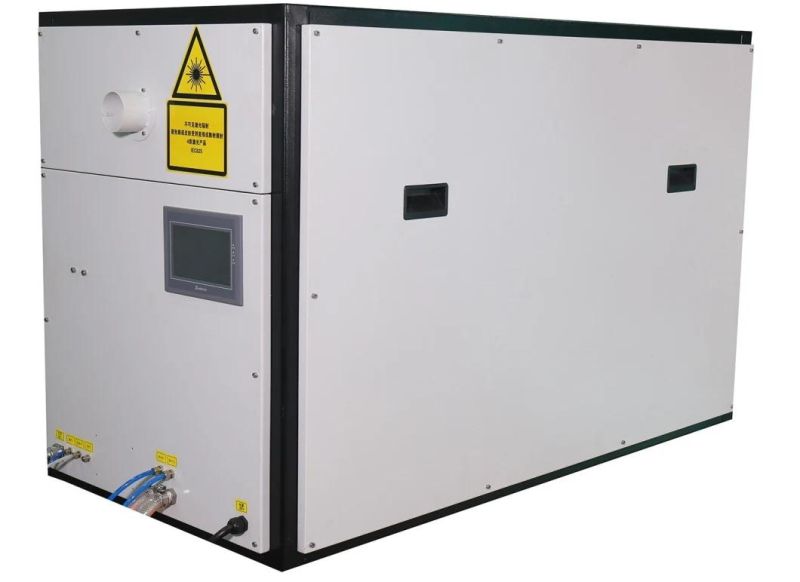

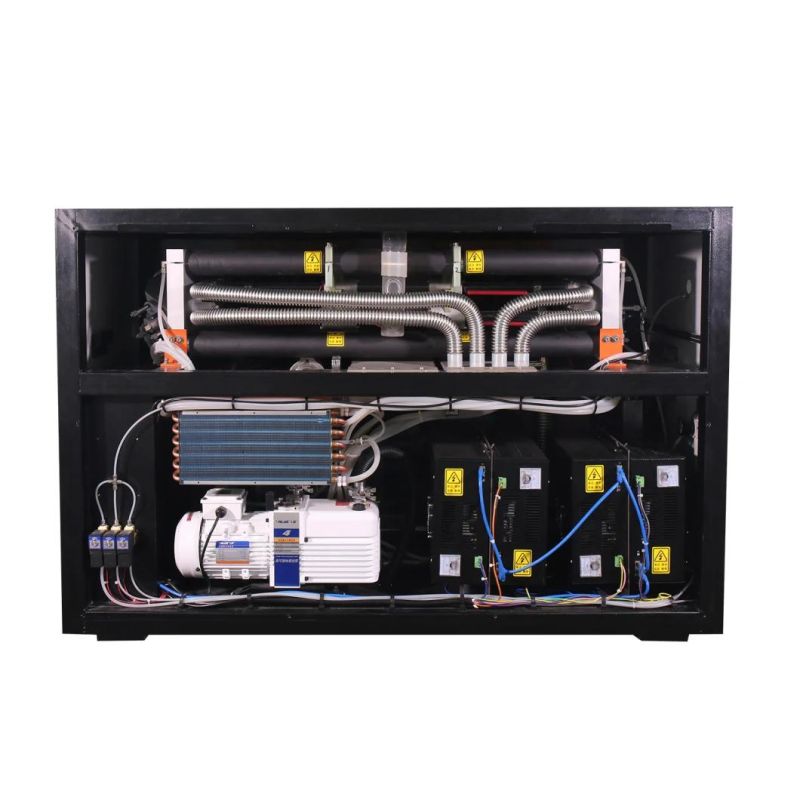

1, Laser source part1Laser sourceSLZSunTop2LensII VIUSA2, Machine Parts3Screw GuiderTBITAI WAN4Turning MirrorII VI Ф50mmUSA5Focus LenII VI Ф38.1 mmUSA6Server MotorFEI LI MEITAI WAN7Control SystemSYNTEC CNC SYSTEMTAI WAN8Induced Draft Fan2.2KW 9ReducerShimpoJapan10Chiller China11Lubrication system Auto Lubrication

12Flat die travel distance

WTPM25122450x1250mmFlat die Pointing Accuracy±0.03 mmFlat die Max Idle Speed12m/minSize8500x5500x1800mm

13Flat die travel distance

WTPB25122450x1250mmFlat die Pointing Accuracy±0.01 mmFlat die Max Idle Speed12m/minSize8500x5500x2200mm

14Rotate  die travel distance

WTYH8019D800x3000mmRotate  die Pointing Accuracy±0.1 mm/1000mmRotate die Max Idle Speed10m/minSize8500x1500x2200mm15Flat And Rotate Die Machine SizeWTPB2512& WTYH80198500x7500x2200mm16Voltage380V±5%
17Laser Source Power 1000 W15KW Electricity
1.1m/min  Cutting Speed (±10%)Laser Source Power 1500 W18KW Electricity1.7m/min  Cutting Speed (±10%)Laser Source Power 2000 W21KW Electricity2.4m/min  Cutting Speed (±10%)18Laser Gas MixtureCO2:N2:He is 3%:30%:67%,Gas purity 99.999%19Protective GasN2Gas purity  99.999%20Auxiliary gas for cutting ironO2cutting iron3, Auxiliary Parts Added by Customers
 4, Whole Machine Structure25Machine FrameHigh and slight structural steel
 WT
Attached:

1. Characters Of Flat And Rotate Die Laser Cutting Machine:
1,Self Develop Laser Source And Machine Structure The whole machine is stable and reliable.
2,10 years of professional experience in the production of large laser equipment, providing sound technology, timely service and long-term protection.
3,Using a unique hybrid laser gas and standby mode, the cost is 2/3 of similar products, energy saving.
4,Machine adopts high-strength structural steel, and use quenching to stress process, to ensure long-term operation without distortion.

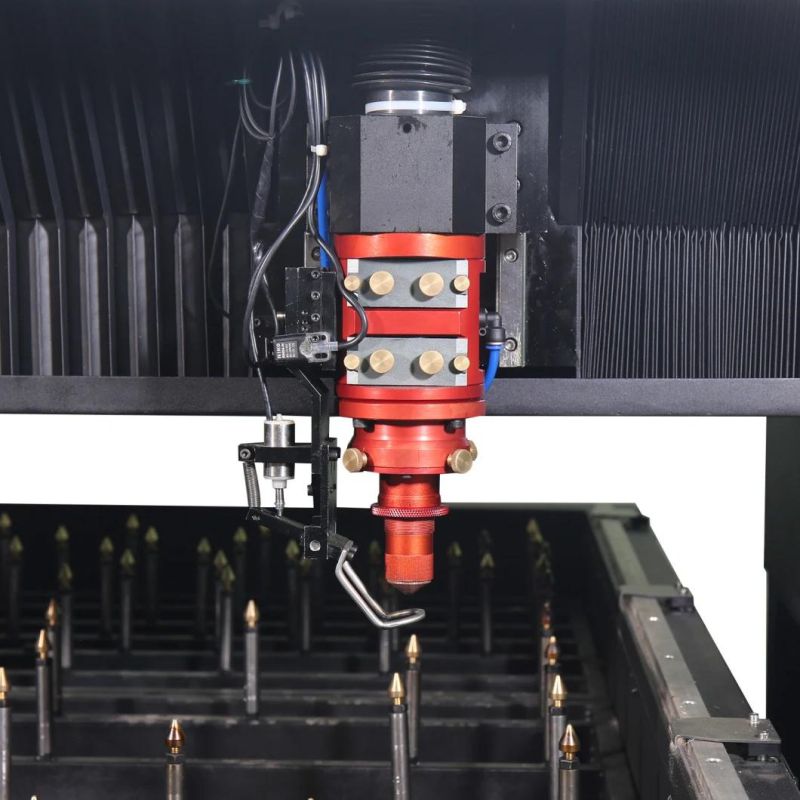

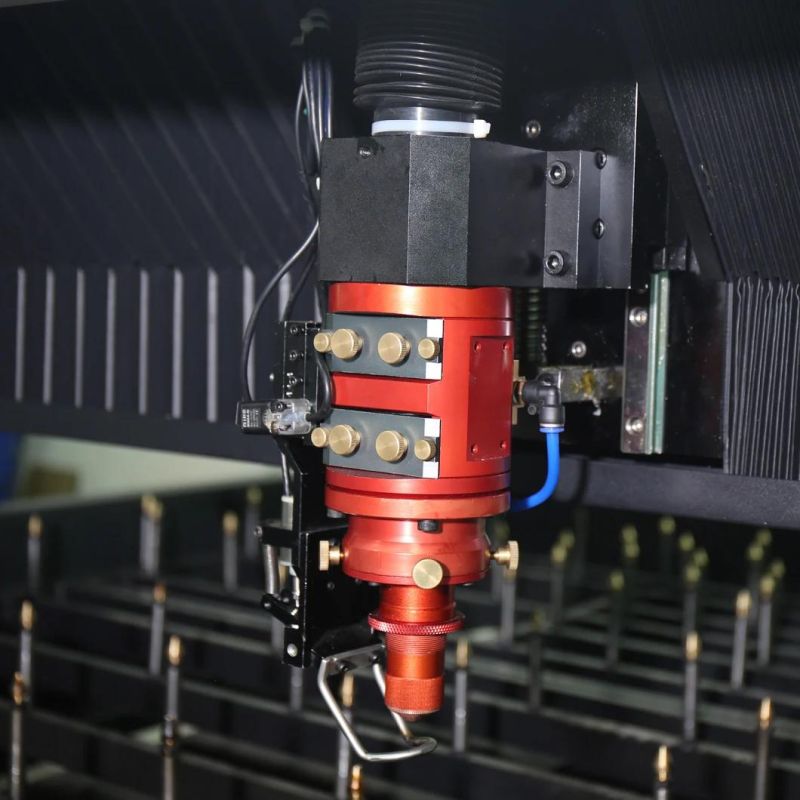

5,Laser cutting head with induction servo system to ensure that the cutting gap is not affected by the uneven plate; cutting process can change the width of the cutting gap (servo adjustment system) without stop the machine.
6,Laser cutting head with anti-collision function.
7,Up to three different width cuts can be cut on the same die board.
8,Unique centralized dust removal device, so that the smoke generated during cutting, dust emissions are timely and effective removed, to make the processing environment cleaner.
9,Machine with pneumatic tightening function, the cutting plate will not move.
10,The machine with the cutting board input function, so easy to load the board, The cutting board will not be scratched platform thimble wood.
11,The CNC system without any restrictions from the WINDOWS version. Using network cable to connect equipment, will not happen files lost, computer virus infection or board card system can not find the hardware .
12,Rotate Die Machine Use Eccentric shaft structure design. The shaft will not be directly burned when laser is cutting, to ensure long-term high-intensity operation without deformation. to avoid the same kind of coaxial products from other factory burning defects long-term defects.
13,Rotate Die support part of the rail can be freely sliding, as required, to ensure cutting accuracy.
14,Rotate And Flat machine use of split (two machine using a separate system), Machine works more stable and reliable.

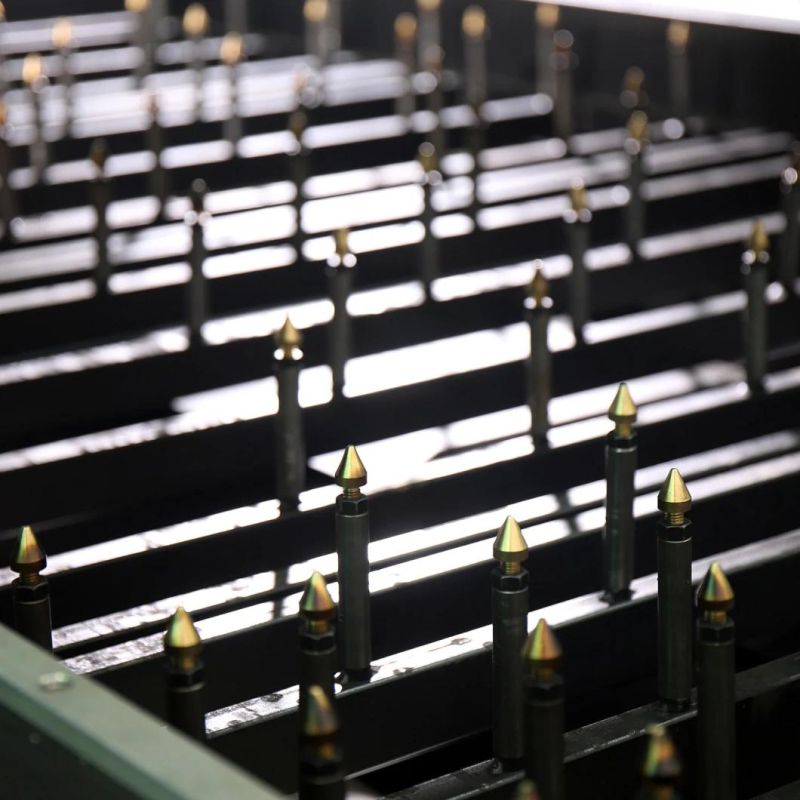

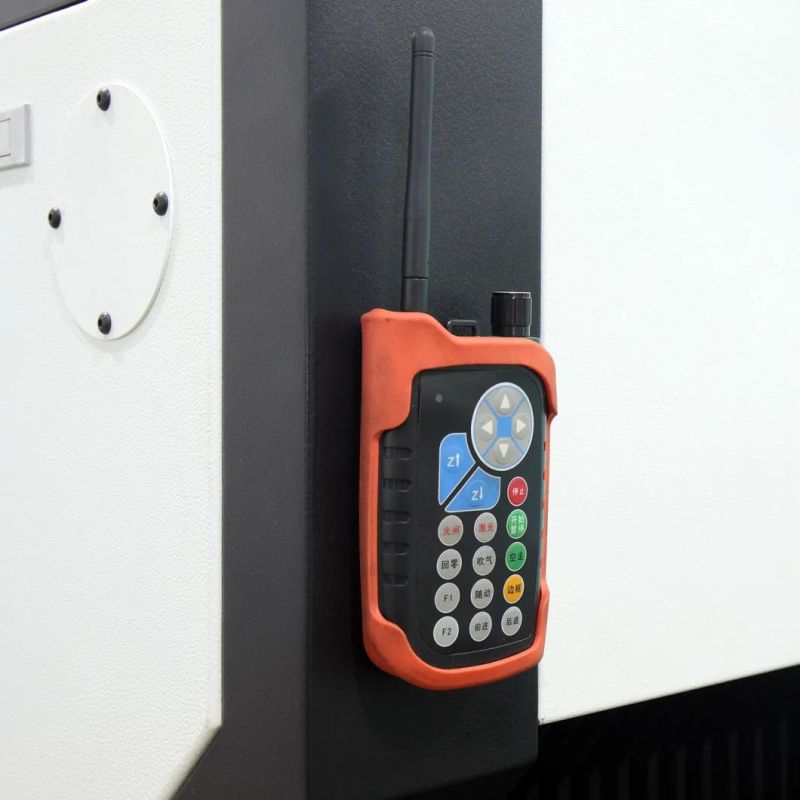

2. Pictures of Flat and rotate Laser Cutting Machine:
