China Starma MDF Acrylic Wood Paper Lether Laser Cutting Machine 1390

Jinan Starma Intelligent Tech Co., Ltd.
  • Application：Woodwork Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Nonmetal
  • Structure Type：Desktop
  • Laser Classification：Fluid Laser

Base Info

  • Laser Technology：Laser Control Fault Cutting
  • Name：Laser Cutting Machine 1390
  • Laser Tube Brand：Reci, Weiju, Efr
  • Control System：Rd6442
  • Motor and Driver：Stepper Motor
  • Cooling：Water Chiller Cw3000 Cw5000 Cw5200
  • Table：Blade Table or Honeycomb Table
  • Guide Way：Square Rails
  • Point：Red Point
  • Lens：USA Imported
  • Certificate：Ce FDA
  • Transport Package：Starndard Export Plywood Case
  • Specification：1300x900mm
  • Trademark：STARMAcnc
  • Origin：China
  • Production Capacity：100 Sets Per Month

Description

SM-B1390Engraving Area (mm)W*L1300*900900*6001600*10001300*2500Laser tube power40W 60W 75W 90W 100W 130W 150WLaser TypeCO2 sealed laser tube RECI brandEngraving Speed0-64000mm/minCutting Speed0-36000mm/minResetting positioning accuracy≤±0.01mmLaser Output1-100%software settingCooling modeCirculating-water-cooling and protection systemMachine control and driveSpeedy DSP controlling, stepper motorCutting Platformknife-strip platformMin. shaping characterCharacter 2.0mm×2.0mm,English1.0mm×1.0mmPower SupplyAC220V 50HZOperating systemDSP off-line control systemDictate format*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc.Operating Temperature5°C-40°COperating Humidity5-95%(Free of Condensed Water)Compatible SoftwareCorelDraw ,AutoCAD transmit directlyOptional Spare PartsRotary system, Industrial Chiller, Infrared Locating System,Laser Tube, Up-down tableConsumable Spare PartsLaser Tube and laser lens600*400mm,1300*1000mm,1200*1200mm,
1300*1800mm,1600*1200mm,1600*2000mm,
1600*3000mm,1800*1000mm and other customized
Other Specifications:Laser typeCO2 laser tube,RECI brand (Yongli and Weiju can option)Power supply110V / 220V/ 50-60HZMin. shaping characterEnglish 1 x 1 mmGraphic format supportedBMP, PLT, DST, DXF, AISoftware supportedCorelDraw, PhotoShop,AutoCAD,TAJIMALocation precision: less than 0.02mmApplicable materialAcrylic, crystal, MDF, ceramic, leather, cloth, fabric,glass,stone,wood etc.
China Starma MDF Acrylic Wood Paper Lether Laser Cutting Machine 1390
China starma mdf acrylic wood paper lether laser cutting machine 1390
Applicable Material (Nonmetal)
Acrylic, Plastic, Plank, ABS, Wood, Plywood, Bamboo, Paper, Organic glass, MDF, PVC, Rubber, Density board, Cloth, Leather, Derma, Corfam, Textile, Chemical leather, etc.

Engraving and Cutting Nometal Materials(Only for reference)Laser tube Power50w60w80w100w130w150w280wWood3mm5mm6mm8mm12mm15mm24mmMDF1mm2mm2.5mm4mm5mm7mm17mmPlywood3mm5mm6mm8mm12mm15mm24mmPlastic2mm4mm5mm8mm10mm15mm24mmRubber1mm1.5mm2mm3mm4mm5mm10mmAcrylic4mm6mm8mm10mm15mm17mm26mmChina Starma MDF Acrylic Wood Paper Lether Laser Cutting Machine 1390

Guarantee:
1.12 months guarantee of the whole machine
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the consumable parts at an agency price when you need replacement
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary

Payment terms:
T/T 30% payment for deposit, after the machine finished, we will take the testing videos for you to check the machine, after you satisfied the machine you pay the left 70% payment. Then we will delivery the machine.

After-sale service:
1. 24hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for machine (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life

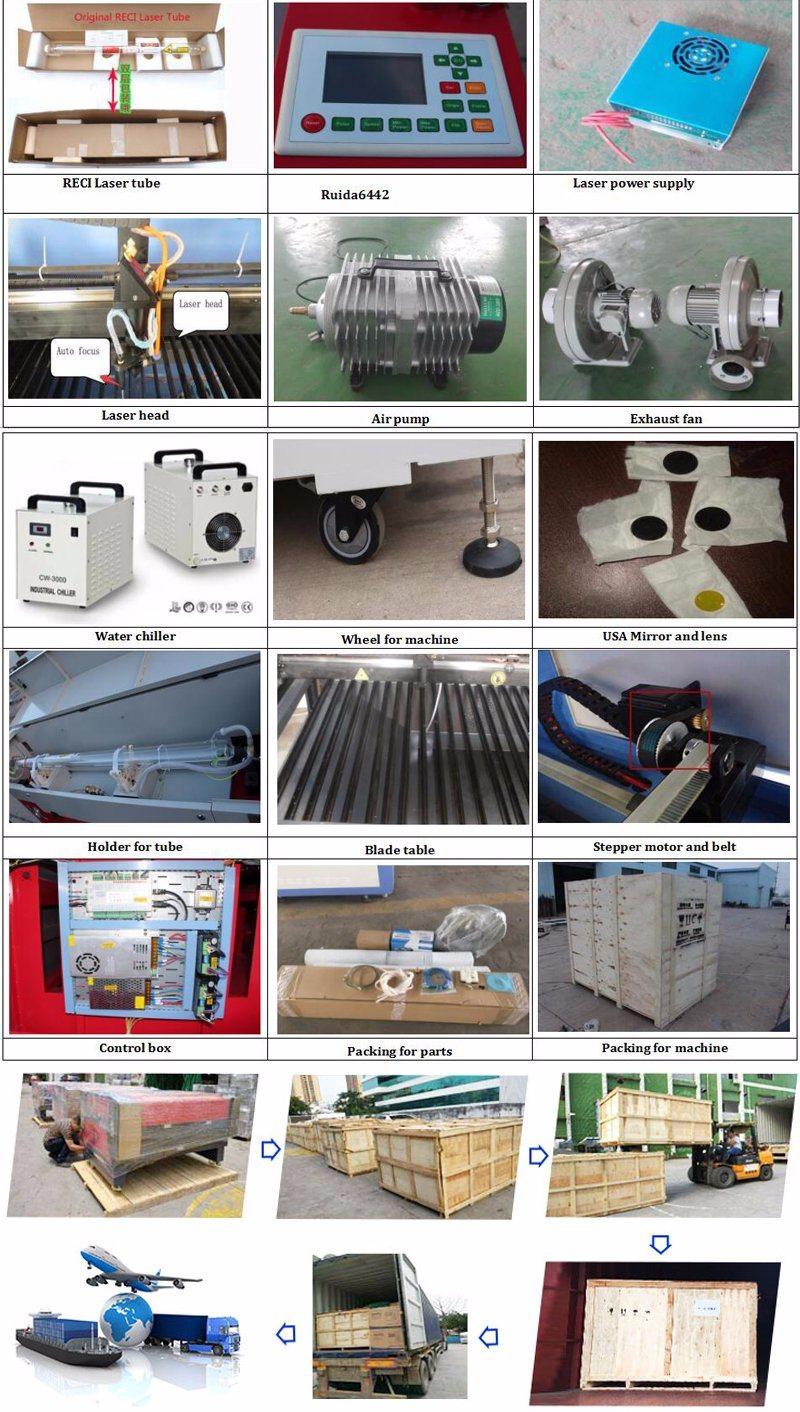

Packaging and delivery:

DeliveryWithin 7 working days for production, we will arrange delivery after received the total paymentPackingFirstly, Packed the machine with plastic sheet for clearing and damp proofing.
Secondly, Then put the machine in the plywood case for safety and clashing.
Thirdly, Transport the plywood case into the container.China Starma MDF Acrylic Wood Paper Lether Laser Cutting Machine 1390
China starma mdf acrylic wood paper lether laser cutting machine 1390

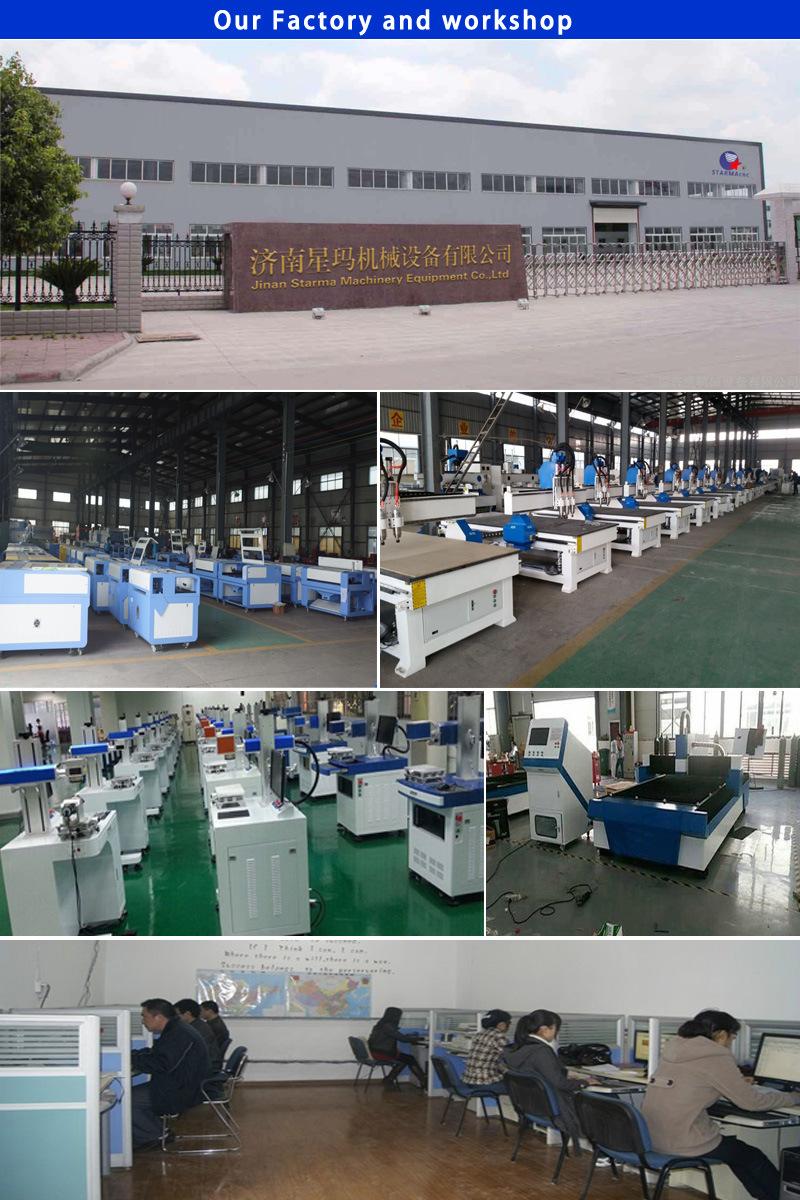

Company(OEM)production:

We are located in jinan City of China, a manufacturer of cnc router, cnc laser and plasma cutting machines.

STARMAcnc has over 58 employees and a factory with more than 10000 square meters. We has our own design and development department.At the same time created "STARMAcnc" brand.

Each product is strictly examined according to ISO9001 (QCS) and ISO14001 (EMS) standards before it is sent out of our factory. And up to CE &FDA &SGS certificate and win Alibaba good faith enterprise.STARMA persist on the mission of "supplying our customers with the best CNC&Laser equipments and solutions".

In us, TOP QUALITY&FIRST-RATE SERVICE IS OUR SOUL AND CULTURE! BELIEVE US AND CHOOSE US, YOU ARE RIGHT!
China Starma MDF Acrylic Wood Paper Lether Laser Cutting Machine 1390

FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or whatsapp, wechat around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

China Starma MDF Acrylic Wood Paper Lether Laser Cutting Machine 1390
