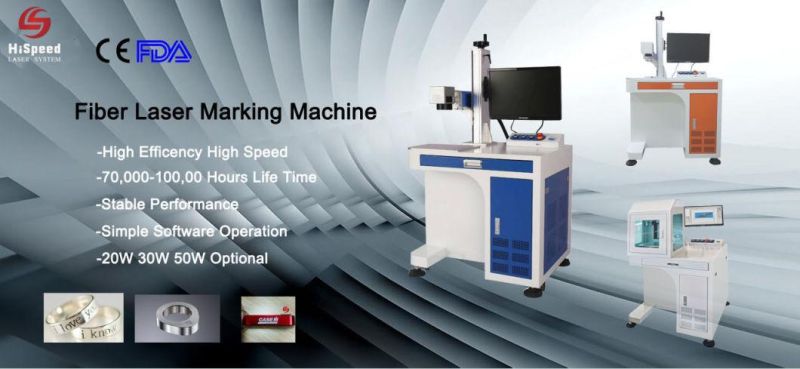

Hot Sale 20W 30W 50W Desktop Fiber Laser Marking Machine for Deep Engraving and Thin Metal Cutting
Dongguan Hispeed Laser Technology Ltd.- Application:Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry
- Cooling System:Air Cooling
- Technical Class:Continuous Wave Laser
- Automatic Grade:Semi-Automatic
- Applicable Material:Metal
- Type:Semiconductor Laser Marking Machine
Base Info
- Model NO.:LS-YLP-20,30,50L
- Laser Classification:Semiconductor Laser
- Engraving Method:Vector Engraving
- Marking Method:Scanning Marking
- Laser Power:20W;30W;50W
- Wavelength:1064nm
- Engraving Depth:1.2mm
- Minimum Character:0.1mm
- Life of Laser Module:70000~100000hrs
- Power Consumption:<500W
- Engraving Range:Max 400*400mm(Customized)
- Minimum Line Width:0.012mm
- Repeated Accuracy:+-0.003mm
- Product Name:Fiber Laser Marking Machine
- Transport Package:Wooden Case
- Specification:680*220*500mm
- Trademark:Hispeed or Customized
- Origin:China
- HS Code:8456100090
- Production Capacity:50 Sets , Month
Description
Basic Info.
Model NO. LS-YLP-20/30/50L Laser Classification Semiconductor Laser Engraving Method Vector Engraving Marking Method Scanning Marking Laser Power 20W;30W;50W Wavelength 1064nm Engraving Depth 1.2mm Minimum Character 0.1mm Life of Laser Module 70000~100000hrs Power Consumption <500W Engraving Range Max 400*400mm(Customized) Minimum Line Width 0.012mm Repeated Accuracy +-0.003mm Product Name Fiber Laser Marking Machine Transport Package Wooden Case Specification 680*220*500mm Trademark Hispeed or Customized Origin China HS Code 8456100090 Production Capacity 50 Sets / MonthProduct Description
HOT SALE 20W 30W 50W Desktop Fiber Laser Marking Machine for Deep Engraving and Thin Metal CuttingFiber laser Marking Machine for any type metals and some nonmetallic material
75*75mm, 110*110mm,175*175mm ,200*200mm, 300*300mm Marking Area Optional
10W 20W 30W 50W 100W fiber laser power
Portable type, Standard type, Desktop type model Optional
Distributors/Agents wanted !
Application of laser marking machine
It is mainly applied to the higher marking precision such as mobile phones buttons, plastic,translucent keys, electronic
components, integrated circuits (IC), electrical appliances,communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products, etc.
- Electrical Engineering and Electrical part and component
- Mobile (Cover,battery,keyboard, I Phone Case)
- Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
- Building materials,PVC pipe
- Car motor car spare part ,Insturment and meters and cutting tool
- plastic case,aviation and aerospace,
- military product,hardware fitting and accessory,sanitary appliance
- food and beverage ,Medicine package and medical instrument,solar Pv industry
Features of laser marking machine
· Compact design, easy to move equipment, air-cooling, compact machine, good output beam quality,
high reliability, no consumables, maintenance-free.
· Long life Working time over100,000 hours long life span. Import Germany IPG fiber laser,
the international latest, most reliable structure, small size, power consumption is small,
no high-voltage without large water-cooled system.
· Close to the ideal beam, USB interface, output control, optical scanning system,
laser repetition rate high,high-speed without distortion.
Technical Parameters
Model | LS-YLP-20L | LS-YLP-30L |
Power | 20W | 30W |
Wavelength | 1064nm | 1064nm |
Beam Quality | M2<1.3 | M2<1.3 |
Output Power | 10%-100%(continuously to be adjusted) | 10%-100%(continuously to be adjusted) |
Output Frequency | 20KHz-100KHz(continuously to be adjusted) | 20KHz-100KHz(continuously to be adjusted) |
Power Stability(8h) | <±1%rms | <±1%rms |
Focus Spot Diameter | <0.01mm | <0.01mm |
Engraving Range | ≤400*400mm(customized) | ≤400*400mm(customized) |
Engraving Depth | 1.2mm | 1.2mm |
Engraving Speed | 800 standard characters/second | 800 standard characters/second |
Minimum Line Width | 0.012mm | 0.012mm |
Minimum Character | 0.1mm | 0.1mm |
Repeated Accuracy | ±0.003mm | ±0.003mm |
System Operation | Windows XP/2000/98 | Windows XP/2000/98 |
Cooling Mode | Air Cooling | Air Cooling |
Environment Temperature | 10ºC~35ºC | 10ºC~35ºC |
Environment Humidity | 20%-80% | 20%-80% |
Power Requirement | 220V/Singlephase/50Hz/<400W | 220V/Single phase/50Hz/<400W |
Life of Laser Module | 100000Hrs | 100000Hrs |
Host Size | 800mmx650mmx1435mm | 800mmx650mmx1435mm |
Applicable Sample Materials
Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 200*200mm, 300*300mm, or customized as your demand.
Looking forward to your inquiry!!!
