• Model NO.：PE-F200-4040
• Structure Type：Desktop
• Laser Classification：Fiber Laser
• Laser Technology：Laser Vapor Cutting
• Engraving Machine Type：Metal Cutting
• Power：200W, 300W, 500W, 800W, 1000W
• Drive Type：Japanese Servo Motor and Driver
• Laser Type：Fiber Laser
• Control：CNC
• Current：AC
• Condition：New
• Usage：Stainless Steel, Carbon Steel, Iron and All Metals
• Graphic Format Supported：Ai, Dxf, Dxp, Plt
• Cutting Thickness：1-12 M (Carbon Steel)
• Transport Package：Professional Wooden Case
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set , Month

Basic Info.

Model NO. PE-F200-4040 Structure Type Desktop Laser Classification Fiber Laser Laser Technology Laser Vapor Cutting Engraving Machine Type Metal Cutting Power 200W, 300W, 500W, 800W, 1000W Drive Type Japanese Servo Motor and Driver Laser Type Fiber Laser Control CNC Current AC Condition New Usage Stainless Steel, Carbon Steel, Iron and All Metals Graphic Format Supported Ai, Dxf, Dxp, Plt Cutting Thickness 1-12 M (Carbon Steel) Transport Package Professional Wooden Case Specification ISO 9001 & CE Trademark Perfect Laser Origin China HS Code 8456110090 Production Capacity 500 Set / Month

Product Description

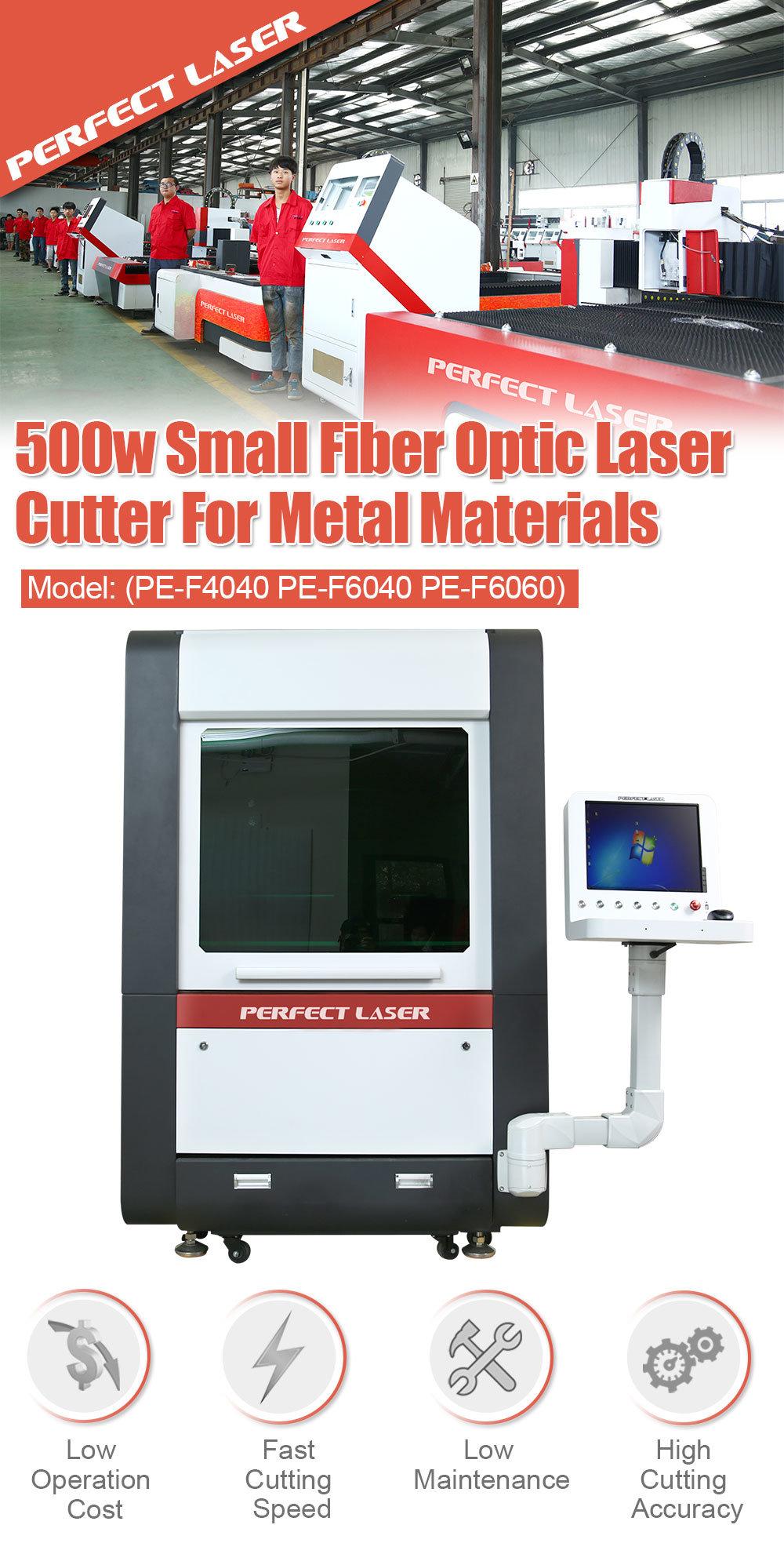

1-3MM Thin Steel Plate IPG Small Metal Fiber Laser Cutter
(PE-F200-6040)
Contact: Susie







Product Application

Perfect Laser specializing in the production of various laser cutter and engraver. In order to meet the market processing needs of new and old customers, Perfect Laser recently developed a small scale cheap laser cutting machine: model PE-F4040 6060 6040.

Thin Steel Plate IPG Small Metal Fiber Laser Cutter is suitable for small metal cutting, we have the 400*400mm, 600*600mm, and 600*400mm working area for the customer. This kind of small laser metal cutting machine does not only save space for the customer but also saves the cost and the use ratio. The appearance of the fiber laser cutter is very small and easy to move. At the same time, the small laser metal cutting machine with high precision and fast speed. No consumable, maintenance-free, and has long life are the most advantages of the fiber laser cutter. All in all, this small laser metal cutting machine is the best choice for cutting small metal requirement customers.

Application:

Applied materials: Thin Steel Plate IPG Small Metal Fiber Laser Cutter is widely applied in carbon steel cutting, mild steel, stainless steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials.

Applied Industry: Thin Steel Plate IPG Small Metal Fiber Laser Cutter is widely applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Features:

1. Low operation cost: The power consumption of the metal sheet cutting machine is only 70-80% of Co2 laser.
High cutting speed: The speed of the metal sheet cutting machine is 2-3 times faster than YAG or Co2 laser.

2. High cutting accuracy: The finest laser beam of the fiber laser cutter is up to 0.01mm.

Low maintenance: This kind of fiber laser cutter is almost totally free of maintenance.

3. The small laser metal cutting machine is adopted advanced Germany technology, ensure most high tech in the world.

With advanced optical system: To ensure excellent laser beam quality can strongly improve the laser power and laser beam quality.

4. With a dynamic auto-focus system: To keep the same distance between the metal sheet and laser head. So that the fiber laser cutter realized the accuracy of cutting effect.

With pre-run function: To simulate the laser cutting path, Pre-run the cutting path in advance, ensure finding the accurate cutting position for the fiber laser cutter.

5. With red light pointer: As the laser beam is in-visible, we adopt a red light pointer to indicate the real position of the laser beam makes cutting more accurate.

With unique mirrors and lens cooling technology: All mirrors and lens are cooled by water. Takes the mirror heat during working. Prolong its lifetime. Save future operation costs.
With an auto oil-filling system.

Technical Data:

Model	PE-F4040
Laser type	Fiber laser
Laser power	200w/300w/500w
Max.cutting thickness(CS)	1-2mm(200w)/1-3mm(300w)/1-5mm(500w)
Laser technology	Germany technology
XY working area	400*400mm
Laser source	Germany import laser fiber laser source
Focus method	Following and automatic adjust focus
Control method	Offline movement control

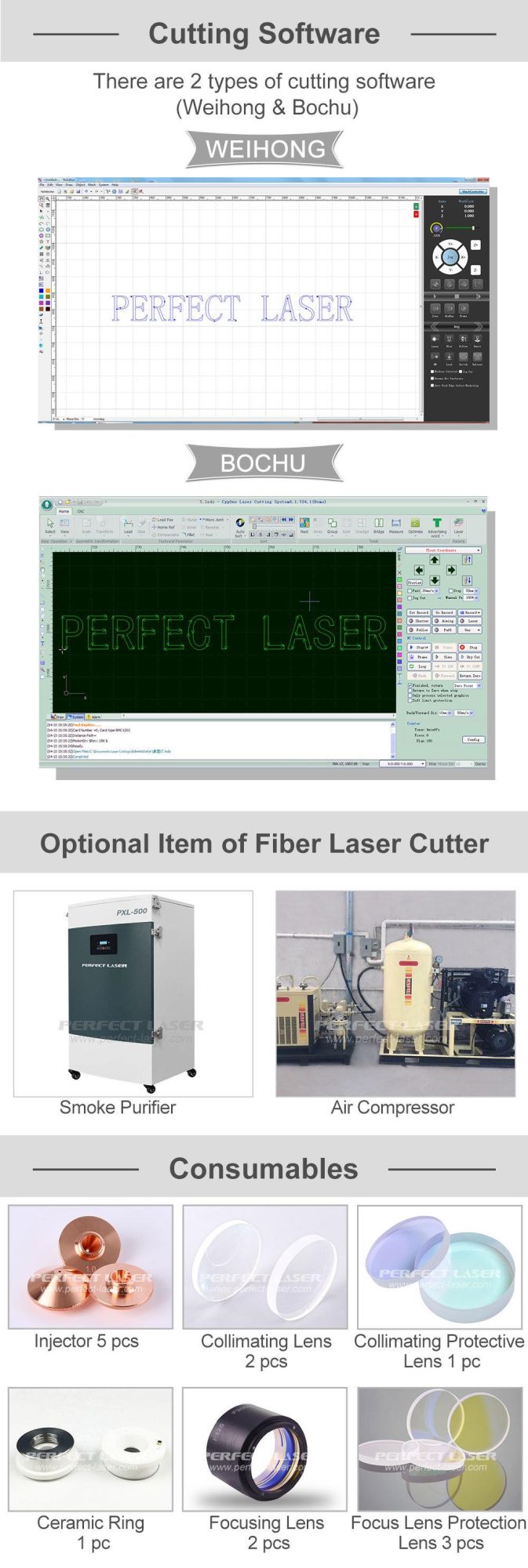

Control software	Perfect laser professional laser cutting software
Max. cutting speed	5-20meters/min(up to materials)
Max. location speed	60m/min
Laser wavelength	1070nm
Minimum line width	≤0.1mm
Location precision	≤±0.05mm
Re-location precision	±0.02mm
Max. Moving speed	100m/min
Supporting format	PLT,DXF,BMP,AI
Power demand	380V/50Hz
Cooling way	Water cooling
Worktable max. load	1000kgs
Transmission method	Ball screw transmission
Table-driven system	Japanese imported Yaskawa servo motor& driving system Taiwan Hiwin/KH Precision Gear Trac Taiwan Hiwin/KH Precision Ball Track

Certifications

European CE EMC Certificate/Germany TUV Report/USA FDA/Business License

Our Company

Perfect Laser is a world-famous manufacturer of industrial laser equipment. Since 1995, Perfect Laser-focused on the development and production of various types of laser machinery and CNC equipment.

Our Service

* The guarantee period of quality shall be 36 months counting from the date on which the commodity arrives at the port of destination.

* Except the damage artificially and laser crystal rod and laser lamp, we are responsible for offering the fittings free of charge during the guarantee period, while it is preferred you send the damaged fittings to us by courier with your charge for our testing, after confirming damage, we will send back the alternative fittings to you. After the guarantee of quality period, the parts required repairing or change, if any, shall be paid.

* When you meet some complicated problem and online-support can not solve it, we can offer Door-Visiting Service. If our engineer to assemble or/and maintain or/and adjust the machine is/are required, we shall assist to deal with the visa formality and prepaid traveling expenses and accommodation to us during the business trip and the service period before their dispatch. And you can arrange for the translating person for the service engineer during their service period. Or you can send your engineer to China. We will offer long-term technical training to him for free.

Training, Commissioning & Startup of Machine

* We will supply with the machine Operation Manual and Training CD in English version for Installing and operation, including introduction for the composing of equipment, working principle equipment, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures of equipment. Personal demonstration for installation, adjusting and operation of equipment, and the computer.Common malfunction eliminating measures, etc

* We will supply Instruction for simple troubleshooting of the machine when dispatching, which can help you deal with the common problems happened unluckily. Also, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine/software will be sent to you along with the machine, which could be easily understood and friendly handled by you and your customers.

Contact Us:
Perfect Laser Co., Ltd. (China)
Contact: Susie/ Sales Department
Add: Heng Ruichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Hubei, China(430200).
