• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

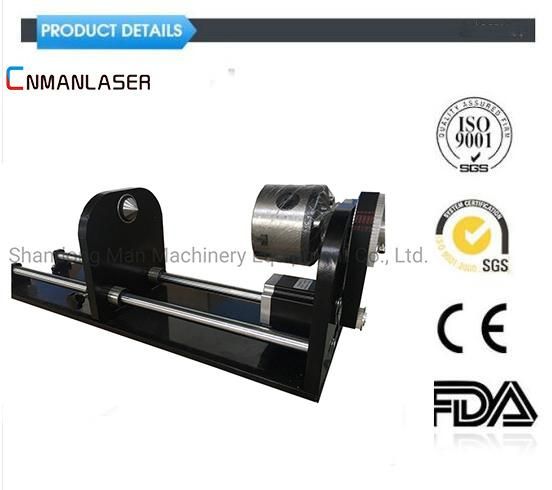

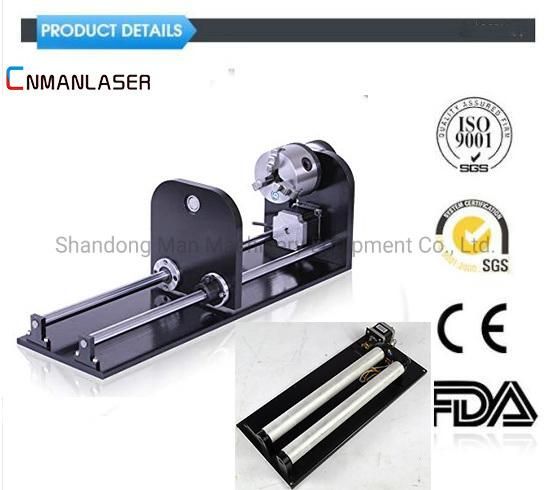

glass cylinder 4 wheel roller type rim-drive rotary attachment rotation axis for CO2 laser engraving and cutting machine





Introduction:

Rotary axis Attachment Our Standard Rotary Attachment is ideal for engraving cylinder items

with your laser. From glasses, to mugs, to wine bottles, to flashlights, the Rotary

Attachment can quickly and easily adjust to size for a wide variety of products.

Technical Parameters:

Available machine: 350, 460, 960, 1290, 1390, 1690 etc.

Available products: Cup, Bottle, Cylinder drum, Tube, Bowl etc

Rated Voltage:2.07v Dc

The Maximum Statictorque>=780mn.M

Swing( Shaft To See ):A-Ab-B-Clockwise Direction

Maximum No-Load Running Frequency>=2500pps

Electrical Strength:Ac600v/1ma/1s

Step Angle:1.8°±0.09°

Rated Current:Dc 1a/Phase

Inductance (1khz):30×(1±20%)Mh/Phase

Detent Rorque :320g.Cm Ref.

Maximum No-Loadstart Frequency>=1500 Pps

Insulation Grade:B

Material Of Pulley :H62

Tooth Form :Mxl

Number Of Teeth :Z=20

Pitch Of Teeth :P=2.032

Pitch Circle:φ12.936

Outer Circle:φ12.428±0.003

Applicable Material:
Wood,bamboo,jade,marble,organic glass, crystal, plastic, garments, paper, leather, penelope, rubber, ceramic, glass, textile cutting, industrial prototyping, industrial marking, signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.

Applicable Industry:
Advertisement,arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,packaging and paper industry.
