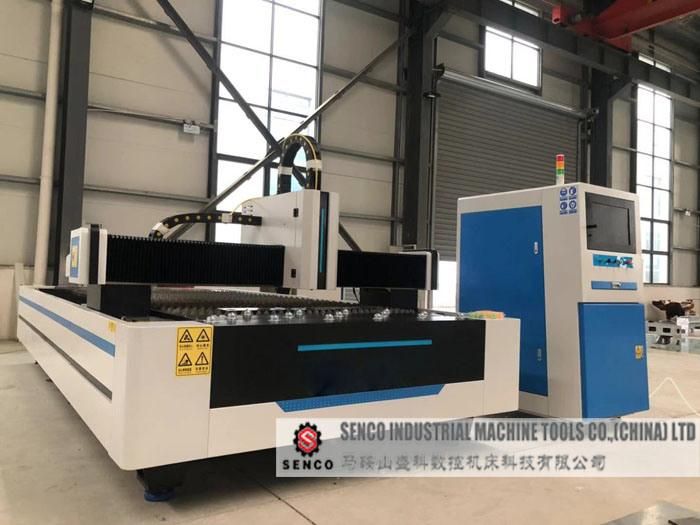

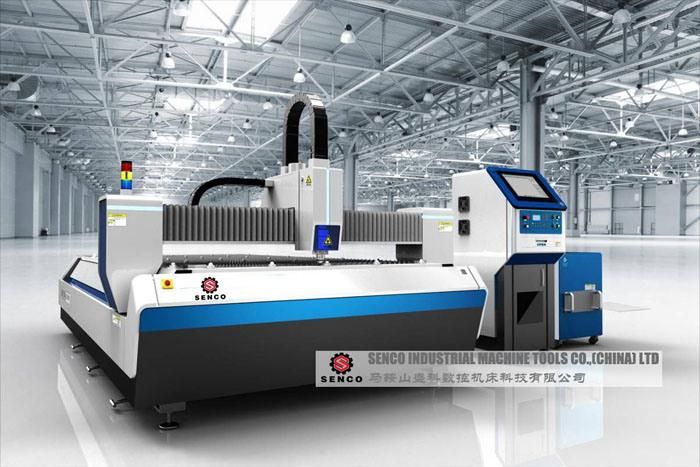

China Sale 6m Single Cutting Table Aluminum Fiber Stainless Steel Sheet Laser Cutting Machine
SENCO INDUSTRIAL MACHINE & TOOLS (CHINA) CO., LTD.- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Free Electron Laser
Base Info
- Model NO.：3015
- Laser Technology：Laser Control Fault Cutting
- Suppliy Ability：10 Sets,Month
- Transport Package：Wooden Packing
- Specification：3000x1500
- Trademark：SENCO
- Origin：China
- HS Code：8456110090
- Production Capacity：500 Sets,Year
Description
Technical indicatorsTechnical ParametersLaser wavelength1080mmMaximum laser power1000W/1500W/2000W/3000W/6000WPulse frequency1~500Hz continuously adjustable Aiming and positioning Red light indication Effective processing area 3000mm*1500mm X/Y axis repeat positioning accuracy ±0.05mmMaximum cutting thickness Stainless steel ≤ 5mm / carbon steel ≤ 10mm Support for graphic formats DXF, etc. (support Autou CAD software, Coreldraw software) Power consumption of the whole machine ≤8KW Power Requirements Three-phase four-wire AC 380V, 50Hz, 60A Mainframe dimensions (L×W×H) 8000mm×2350mm×2000mm Machine weight 4000KG
Basic configration

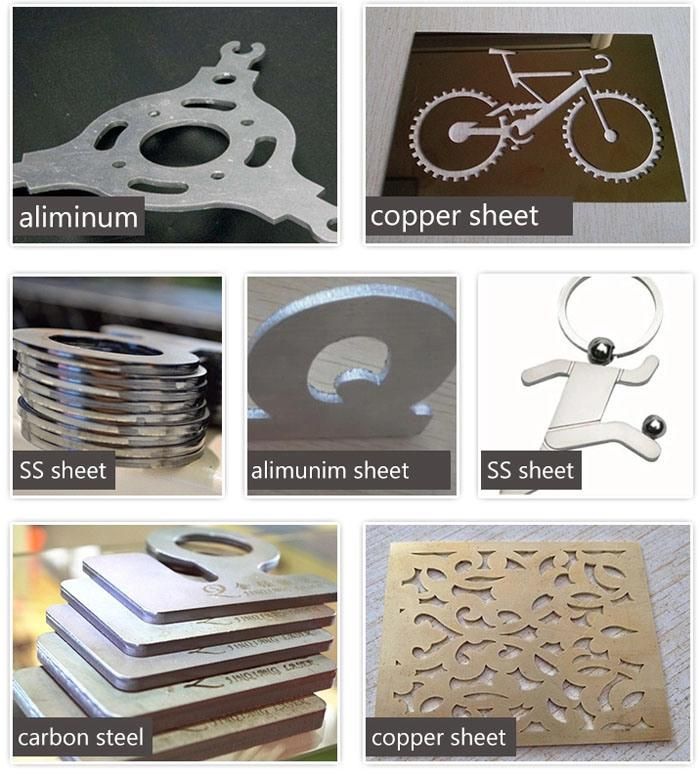

Cutting Samples
Basic configration
| No. | Description | Brand |
| 1 | Machine main body | SENCO |
| 2 | CNC operationg carbinet | SENCO |
| 3 | Smoke dust sucking structure | SENCO |
| 4 | air conditioning cabinet | SENCO |
| 5 | Air conditioner | Tongfei |
| 6 | Fiber Laser | Raycus/IPG |
| 7 | Laser cutting head | Swiss Raytools AG |
| 8 | laser chiller | Han's |
| 9 | CNC system | Baichu Cypcut |
| 10 | Capacitive THC | Baichu BCS100 |
| 11 | Servo motor | Japan YASKAWA |
| 12 | Gear rack | Taiwan YYC |
| 13 | Linear Guide | Germany Rexroth |
| 14 | Precision reducer | Japan Shimpo |
| 15 | Proportional valve | Japan SMC |
| 16 | high-pressure valve | Germany Burkert |
| 17 | Electronic pieces | France Schneider |
| 18 | Solenoid valve | Japan SMC |
| 19 | Air cylinder | Japan SMC |
| 20 | Voltage stabilizer | Delix |
| 21 | Isolation transformer | Huadong Electrics |
Cutting Samples
