Laser Equipment

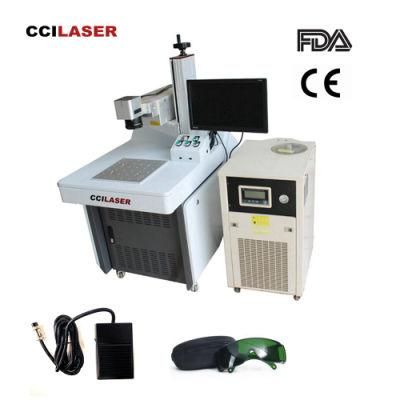

FM-50wc Mobile Watch Phones Parts Marking Machinery Enclosed Laser Marking Machines

Shandong CCI Co., Ltd.
  • Laser Visibility:Visible
  • Applicable Material:Metal
  • Cooling System:Air Cooling
  • Technical Class:Pulse Laser
  • Laser Wavelength:Fiber Laser
  • Laser Classification:Semiconductor Laser

Base Info

  • Model NO.:FM-50WC
  • Type:Optical Fiber Laser Marking Machine
  • Marking Method:Scanning Marking
  • Transport Package:Wooden Case
  • Specification:79Kgs
  • Trademark:CCILASER
  • Origin:China
  • HS Code:8456110090
  • Production Capacity:300 Sets Per Month

Description

 No.Technical ItemTechnical Parameters1Power Rate20/30/50/60/100W7Marking Line Speed< 7000mm/s2Wavelength1060-1064nm8Laser Lifetime>100000hours3Beam QualityM2 less than 1.59Cooling MethodAir Cooling4Min. Character0.05mm10Machine PowerLess than 600W5Min. Line Width0.01mm11Power Supply220V 50Hz/ 110V 60Hz6Repeatability±0.001mm12Package Weight69Kgs6. Main Components

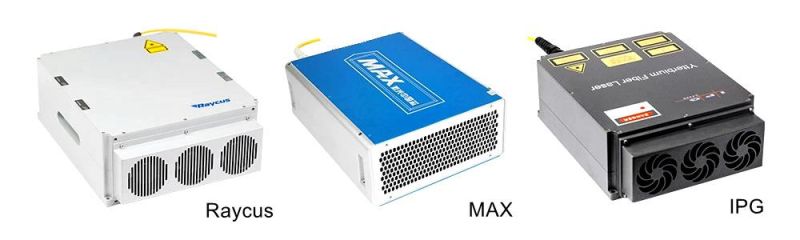

6.1 Laser Source: Raycus/ MAX/ IPG
FM-50wc Mobile Watch Phones Parts Marking Machinery Enclosed Laser Marking Machines

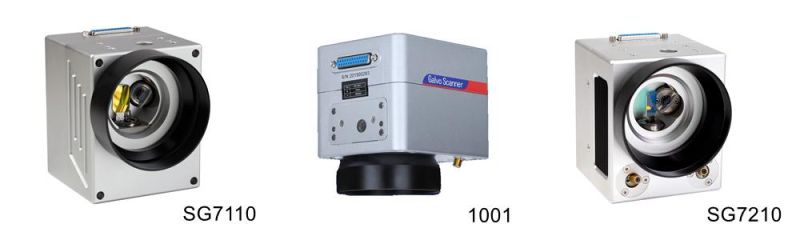

6.2 Galvanometer
Scanner: SINO-GALVO
FM-50wc Mobile Watch Phones Parts Marking Machinery Enclosed Laser Marking Machines

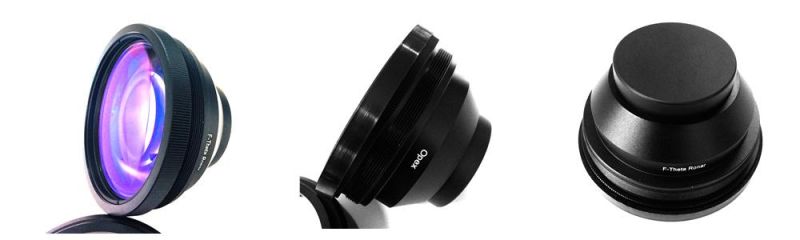

6.3 Field Lens:
WAVELENTH
FM-50wc Mobile Watch Phones Parts Marking Machinery Enclosed Laser Marking Machines

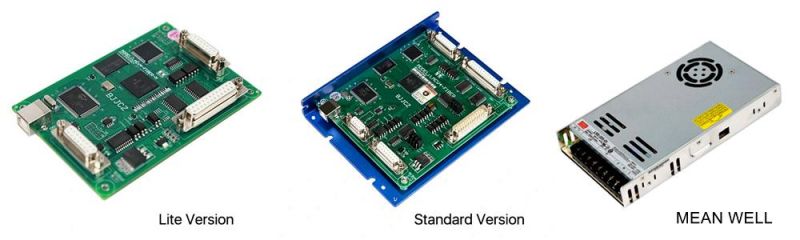

6.4 Marking Card/ Power Supply:
BJJCZ/ MEAN WELL
FM-50wc Mobile Watch Phones Parts Marking Machinery Enclosed Laser Marking Machines
6.5 Rotary Device (If need)

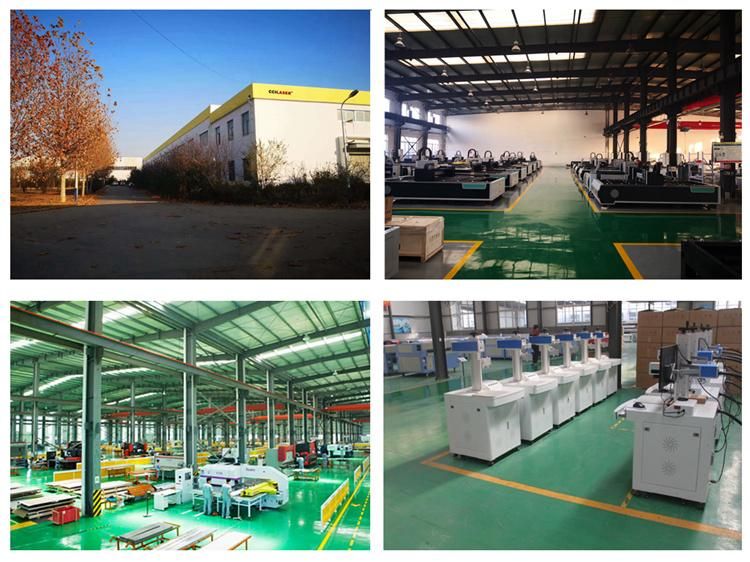

7. Company Introduction
CCILASER is headquartered in Jinan City, China. It is a world-renowned laser equipment company and a high tech enterprises integrating R&D, production and sales.

We are adhering to the tenet of "Quality first, customer first" and continues to grow. Main products include fiber laser cutting machine, plasma cutting machine, laser marking machine, laser engraving machine, laser welding machine and laser cleaning machine and etc.

Our company has passed ISO and CE international quality management system certificates, and has obtained FDA certification for the US market. We have our independent export rights.Machines are exported to more than 50 countries and regions.


Wish cooperating with you to create a better future!
FM-50wc Mobile Watch Phones Parts Marking Machinery Enclosed Laser Marking Machines

8. Contact Information

To be continued..
