Laser Marking Machine Zr-3W

Topbest Technology Limited
  • Laser Visibility：Visible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Continuous Wave Laser
  • Laser Wavelength：UV Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：ZR-3W
  • Type：UV Laser Marking Machine
  • Transport Package：Wooden Box
  • Specification：320*680*610mm
  • Origin：Shenzhen, China
  • HS Code：8456110090
  • Production Capacity：300

Description

Basic Info.

Model NO. ZR-3W Type UV Laser Marking Machine Transport Package Wooden Box Specification 320*680*610mm Origin Shenzhen, China HS Code 8456110090 Production Capacity 300

Product Description

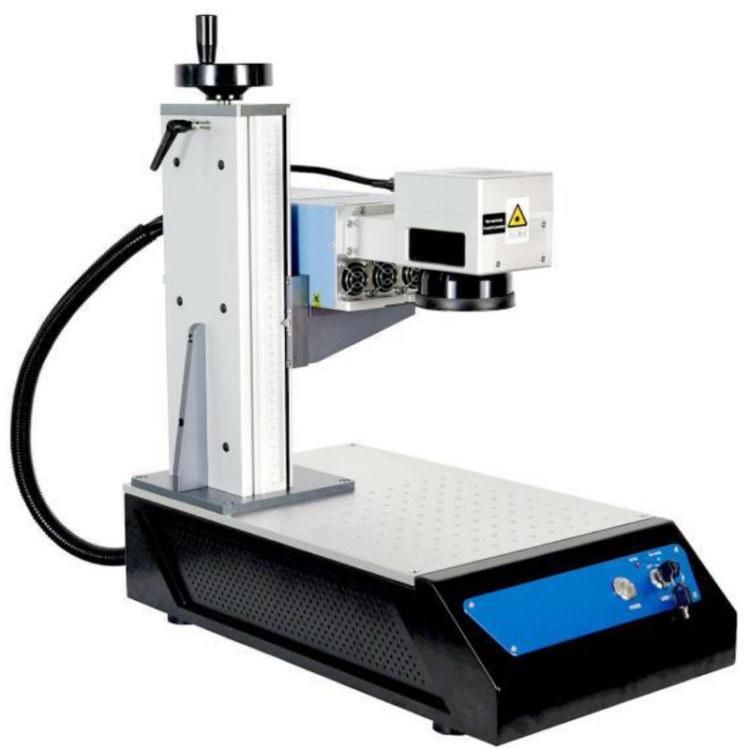

Laser marking machine ZR-3W

Laser Marking Machine Zr-3W

Parameters
ModelZR-3W
Marking range110mmX110mm
Marking speed<=7000mm/s
Minimum letter of marking0.2mm
Minimum line width of marking0.01mm
Laser wavelength355nm
Laser Power3W
Power stability (8h)<±1%rms
Light beam quality<2
FM range8KHz-15KHz
Laser safety classCIassIV
System protectionclass IP54
Repeat precision±0.003mm
Cooling typeAir cooling
Power requirements110V/50Hz/10A
Overall power2KW
Overall dimension (L*W*H)320*680*610mm
Weight28KG

Product features
  • Simple operation, easy to learn and understand, no consumables, low cost;
  • Small heating affected, avoiding deformation, damage or burning of the processed materials, with a high yield of finished products;
  • Widely applicable materials, to make up the defect for the infrared laser processing.
