• Model NO.：1530H 1545H 2040H 2060H
• Structure Type：Gantry Type
• Cutting Area：1500*3000mm
• Cutting Speed：80-140 mm,S
• Machine Bed：Heavy Plate Welded Bed
• Laser Source：Raycus,Ipg,Nlight
• Laser Head：Raytools
• Control Software：Cypcut
• Servo Motor：Yaskawa,FUJI
• Guide Rail：Taiwan Hiwin
• Gear Rack：Taiwan Yyc T-Win
• Reducer：France Motoreducer,Germany Erefat
• Control System：Fscut Cypcut
• Lubrication System：Automatic
• Exhaust Fan：Yes
• Operating Voltage：380V 3 Phases 50-60Hz
• Protective Cover：Yes
• Transport Package：20gp Plywood
• Specification：4660x2250x1850cm
• Trademark：XT LASER
• Origin：China
• HS Code：8456100090
• Production Capacity：900

Overview Product Description

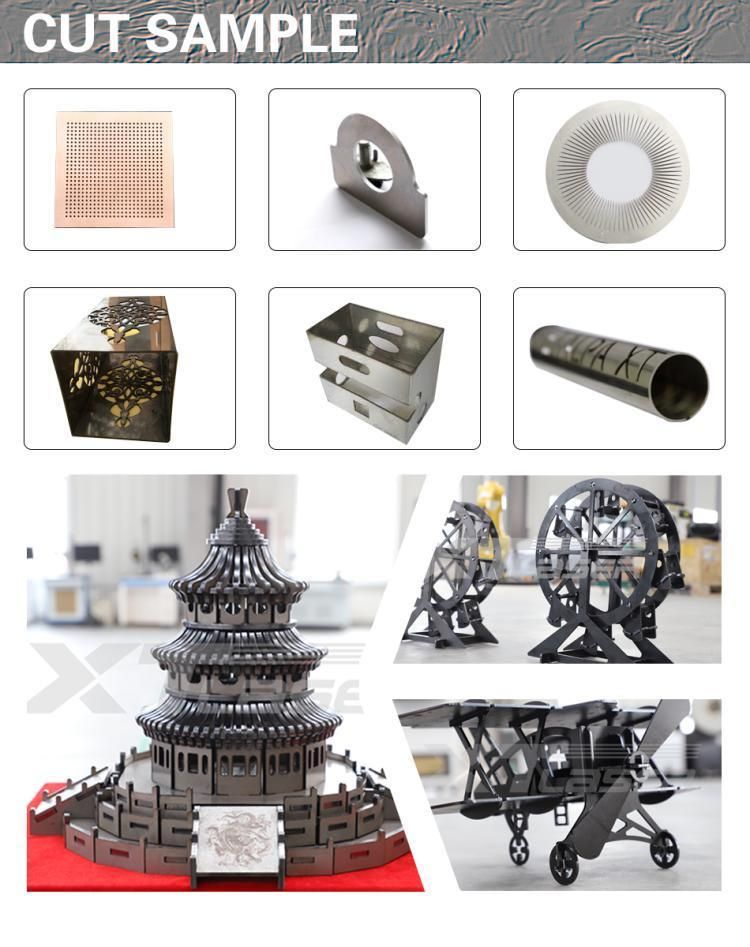

Samples

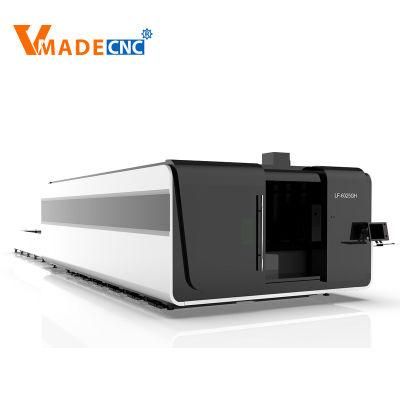

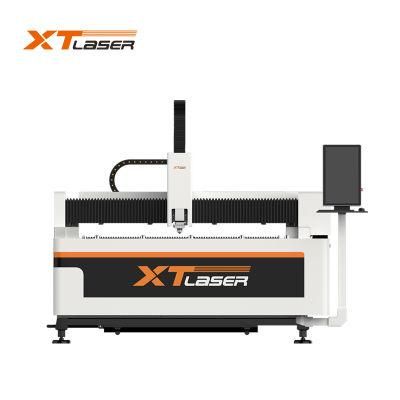

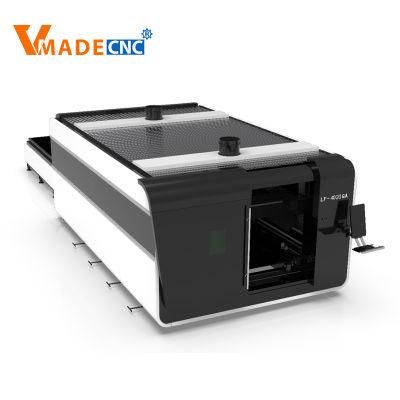

Detailed images

Technical date

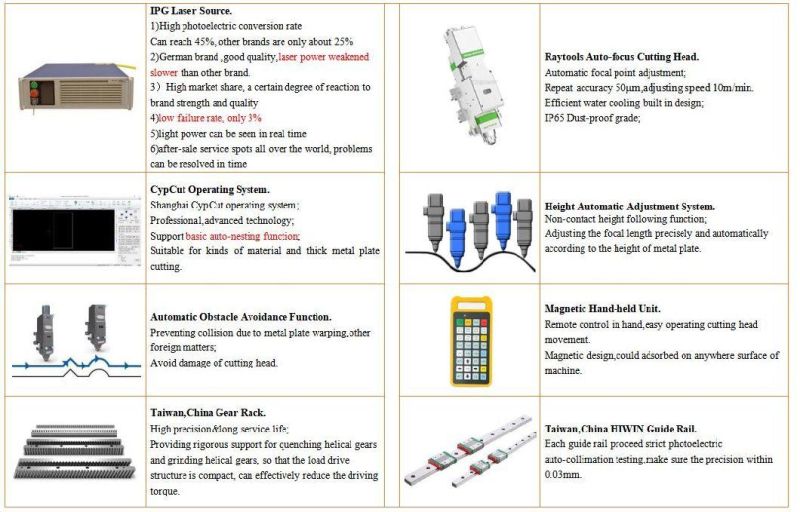

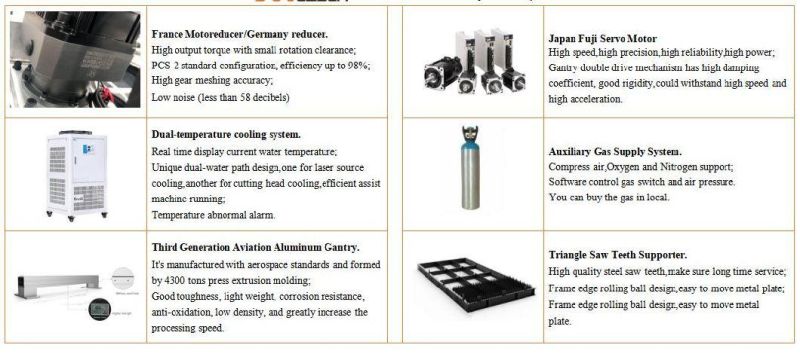

Main configurations

Laser SourceRaytcus/IPG/nLIGHTCutting HeadRaytoolsMachine BedXT LASER,Welded BedDrive ModeDual DriveTransmissionTaiwan  Rack and PinionGuide RailJapan/TaiwinServo Motor DriverYaskawa/Fuji From JapanReducerGermany/FranceWater ChillerHanli/Tongfei/CW SAControl SystemCypcut From Shanghai,ChinaComputerAdvantech  Industrial ComputerPower Voltage Requirement3 Phase AC 380V 50/60HZSolenoid ValveTaiwan AirtacProportional ValveJapan SMCWorking Size3000*1500 mm

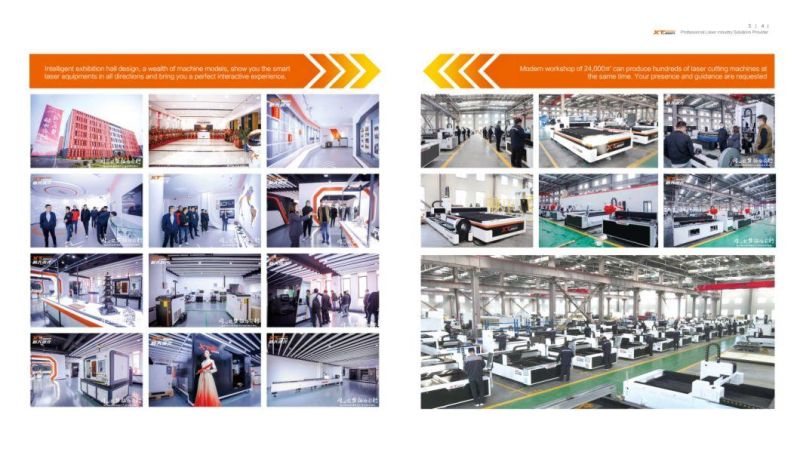

Technical ParametersWorking Area3000*15000mmX axis route1510mmY axis route3050mmZ axis route100mmMaximum Running Speed140m/minAccelerated Speed1.5GCutting Speed70m/minPosition Precision±0.05mmX/Y Axis Repeated Position Precision±0.03mmOur Team and Company

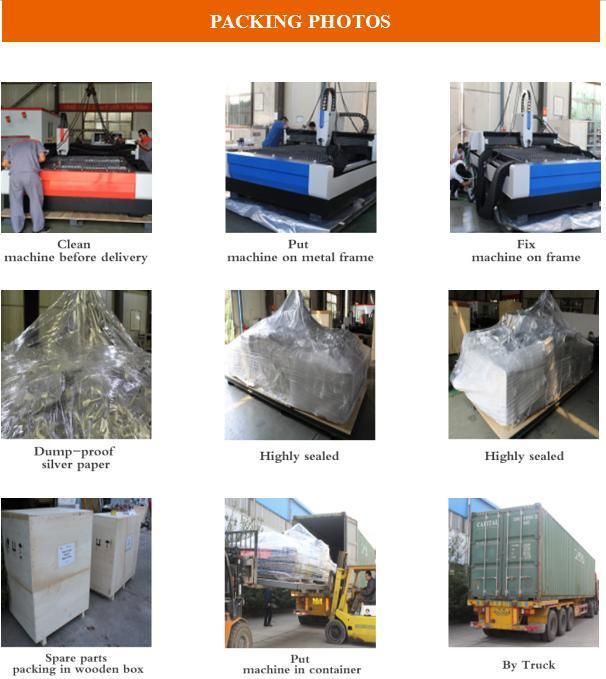

Packing

1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee.
We offer 2 years warranty, during the period, any problem happen, we are responsible to solve.
And if any part of the machine was broken, which happens rarely,
we would send you a new one by DHL, and all cost is all on us.

Exhibitions

We attend domestic and abroad exhibitions every month,
and make long-term friends in business and life with new customers from all over the world.

FAQ
Q1.Which material can fiber laser cutting machine do?
Fiber laser specially cutting middle thick and thin materials such as stainless steel,mild steel/carbon steel,copper,alloy steel,spring steel,galvanized plate,etc.

Applicable fields:aviation,aerospace,electronics,appliances,subway accessories,automobile,machinery,precision parts,ships, saw blades,elevators,craft gifts,decoration,advertising...

Q2.How to select the suitable watt?
For fiber laser cutting machine watt,there is 1000w,1500w,2000w,3000w,400w,6000w,12000w,15000w,etc, .
Different wattage for different cutting thickness.
Tell us your material, material thickness, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.

Q3. How to install and use it?What is the technology support?
1) XTLASER Engineer offer 5-7 working days free field installation,commission and training.
2)The buyer in charge of round airfare, board and lodging.
3)free online training.

Q4. What is the warranty for the cleaning machine?
2 years warranty .

Q5. What is the type of shipping and producing time ?
We offer EXW,FOB ,CIF ,DDU and DDP which you can choose as you like .

For the standard machine, the delivery time is 20-40 days after the payment.
For the non-standard machine, the delivery time depends.
