• Model NO.：CKD-FFLA-20,30,50
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Application Material：Metal and Some Non-Metal
• Shipping Date：3-5 Work Days After Payment
• Warranty：2 Years for The Laser Source, 1 Year for Other
• Control：with Touch Screen Control System
• Laser Power：20W,30W,50W
• Minimum Line Width：0.015mm
• Minimum Charactor：0.2mm
• Transport Package：Wooden Box
• Specification：77-90 Kg Net weight, depend on type
• Trademark：CKD LASER
• Origin：Shenzhen, China
• HS Code：8486204900
• Production Capacity：200 Set,Month

Basic Info.

Model NO. CKD-FFLA-20/30/50 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Application Material Metal and Some Non-Metal Shipping Date 3-5 Work Days After Payment Warranty 2 Years for The Laser Source, 1 Year for Other Control with Touch Screen Control System Laser Power 20W/30W/50W Minimum Line Width 0.015mm Minimum Charactor 0.2mm Transport Package Wooden Box Specification 77-90 Kg Net weight, depend on type Trademark CKD LASER Origin Shenzhen, China HS Code 8486204900 Production Capacity 200 Set/Month

Product Description

CKD-FFLA-20/30/50 series 20W, 30W and 50W, used for automatically online batch marking, such as series number, produce date, QR/Bar Code fast speed automatically marking.

ADVANTAGES:
* Accurate: 0.01mm, control every details and each componect's quality, sensors and coder omron.
* Convenient: Y-axis and Z-axis can be adjusted to adapt different application.
* Easy install: put the machine beside the convenyor or prodect line to marking automatially.

The laser will automatically marking when the materials go into the marking scope:

1: Touch controller or touch computer, (recommend touch computer if your marking demand is strictly, touch controler is an economic way if your need severial sets)
2: Y-axis, the total height of this machine is 140-145cm (handle grip can put down or stand)
3: Y-axs, helps moving marking location easily without move the machine or conveyor
4: Stable base with wheels and brakes
5: Laser canbinet
6: Fixture for calibrating the direction of your marterial to keep marking location neate. (This is the optional parts as well as the convenyor)

High precision, use double sensor, omron coder.
Conveyor is optional, this machine can match any other conveyor if the user has one.
Can change marking direction:

APPLICATION:
(1) Metal: Cast iron, stainless steel, aluminum, magnesium alloy, zinc alloy, copper, nickel plating, galvanized, alloy and so on.
Application examples: Power bank shell, charger, mobile phone decoration, hardware, hutch defends hardware, clock and watch shells, medical equipment, tools, accessories, jewelry accessories, auto parts etc.

(2) Non-metal: Plastic, ABS, PC, PE, HDPE, PVC, epoxy resin, etc.
Application examples: Plastic power bank, buttons, charger, automobile, electronic components, integrated circuit (IC), electrical appliances, etc.


Marking software if choose touch controller:

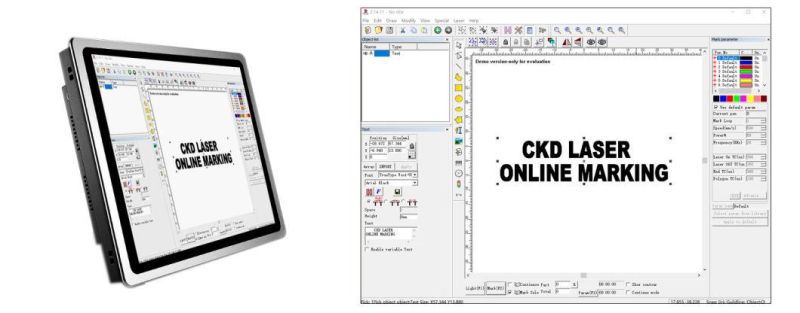

Marking software if choose touch computer:






PARAMETERS:

Parameters	Unit	Data	Data	Data
Type		CKD-FFLA-20	CKD-FFLA-30	CKD-FFLA-50
Laser Average Output Power	W	21±1	31±1	51±1
Laser Type		Q-switched Fiber Laser	Q-switched Fiber Laser	Q-switched Fiber Laser
Central Wavelength	nm	1064	1064	1064
Repetition Frequency	KHz	20-80	30-60	50-100
Beam Quality	M2	<1.6	<1.6	<1.6
Focus Spot Diameter	mm	<0.01	<0.01	<0.01
Max. Power of Single Pulse	mj	1±0.05@20KHz	1±0.05@30KHz	1±0.05@50KHz
Life-span of Fiber Laser Module	hrs	≥100,000	≥100,000	≥100,000
Temperature of Operation Environment	ºC	0-40	0-40	0-40
Cooling Mode		Air Cooling	Air Cooling	Air Cooling
Controller System		With	With	With
Marking Scope	mm	100*100	100*100/200*200	100*100/200*200
Power Source Requirement		90-240V/50-60Hz/2KVA	90-240V/50-60Hz/2KVA	90-240V/50-60Hz/2KVA
