• Model NO.：LSF1390
• Structure Type：Desktop
• Laser Classification：Solid Laser
• Laser Technology：Laser Vapor Cutting
• Fiber Laser：Ipg
• Transport Package：Wooden Boxes
• Specification：working size: 1300*900mm
• Trademark：Lansen
• Origin：China
• HS Code：8456110090

Basic Info.

Model NO. LSF1390 Structure Type Desktop Laser Classification Solid Laser Laser Technology Laser Vapor Cutting Fiber Laser Ipg Transport Package Wooden Boxes Specification working size: 1300*900mm Trademark Lansen Origin China HS Code 8456110090

Product Description

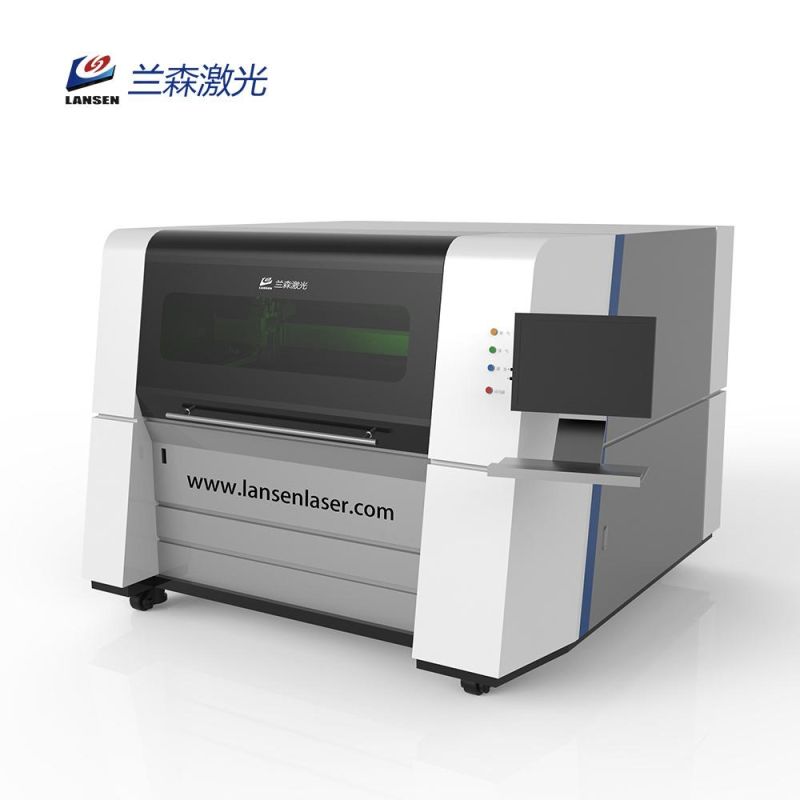

1500w raycus metal fiber laser cutting machine high speed 1390
Features:

LF1390 precision fiber laser cutting machine using imported Japan AC servo drive motor drive system, the machine kinematics grinding stage screw drive, linear guide rail to ensure high-speed equipment, high-precision, high reliability.

Widely used in glasses, electronics, appliances and other precision machinery, hardware, microelectronics industry.

Parameters:

Model	LF1390
Work size	1300*900mm
Laser type	Fiber laser
Laser working medium	Fiber
Laser wavelength	1070 nm
Rated output power	750 W/1000W
Beam quality	<0.373mrad
Table axial positioning accuracy	≤±0.02mm/m
Repeat positioning accuracy table	≤±0.02mm/m
Cutting speed	≤20m/min
XYZ Driving mode	Imported servo motor
Transmission mode	Ballscrew
Power Ratings	Three-phase AC 380V 50Hz
Equipment Weight	1200Kgs



Optical parameter	1000W/1500W
Operational mode	CW,QCW
Wavelength of the center radiation	1070-1080nm
Standard power output	500W
Optical quality	4Mm*mrad
SPD speed	5kHz
Optical fiber diameter	≥50μm
Output power stability (long-term)	±2%
Power supply	400-460VAC
Power consumption (including supporting annex)	33

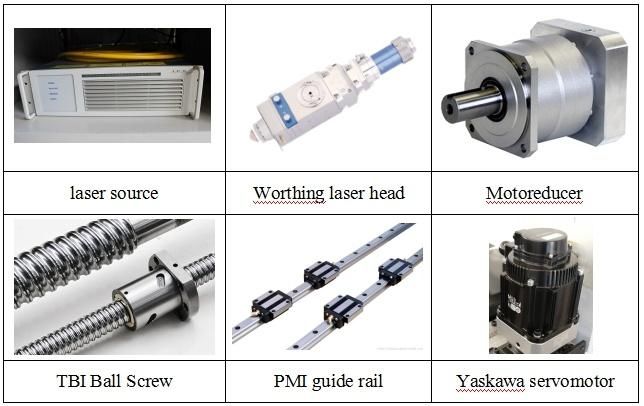

Machine details:




Warranty:1. InstallationAfter the machine reach the buyer's site,the engineers from the seller are responsible for machine installation and commissioning by using the special tools under the help of the buyer. And then start training the workers. Tickets, hotel and food charge need to afford by buyers
2. Training

• The common protection knowledge of laser safety
• The basic principle of laser module and the structure of laser cutting machine
• The operation skills of fiber laser cutting machine
• Equipment operation and the application notice
• Skills of equipment daily maintenance,laser module adjustment and spare parts replacement.
• Training time is about 5 to 10 days.

3. After sales service     · 2 year warranty for the whole machine     · 2 years warranty for the fiber laser source     · Life-long maintenance    · In the warranty period,if it break down or some parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free,the parts need to be replaced will be provided from seller for free(Except the Consumable parts).     · After the warranty period expired,the buyer only need to pay the actual maintenance cost.     · Lansen will pay a return visit all customers for several times one year,and will provide technical support service anytime, and also provide spare parts anytime the buyer want.      · After sales service response time: quick response within 8 working hours, after receive the repair call, our after sales engineer will reply as soon as possible.  About us:


 FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
