Jewelry Channel Letter Welding Machine

Perfect Laser (Wuhan) Co., Ltd.
  • After-sales Service:Online Support
  • Warranty:1 Year
  • Application:Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry, Advertisement
  • Technical Class:Continuous Wave Laser
  • Control:Automatic
  • Power Density:Deep Fusion Welding

Base Info

  • Model NO.:PE-W200
  • Laser Classification:Semiconductor Laser
  • Type:Laser Welders
  • Current:Alternating Current
  • Spindle Power:12kw, 14kw
  • Working Area:200*100*150mm
  • Table Material:Aluminium Alloy
  • Interface:PCI Port or USB Port
  • Operational Software:Original Type3 Software, Artcam Software or Wentai
  • Software Compatibility:Support CAD,Cam Software, Plt Format, Corel Draw
  • Transport Package:Export Sea-Worthy Packing or Air-Worthy Packing
  • Specification:ISO 9001 & CE
  • Trademark:Perfect Laser
  • Origin:China
  • HS Code:84609090
  • Production Capacity:3000 Sets,Year

Description

Basic Info.

Model NO. PE-W200 Laser Classification Semiconductor Laser Type Laser Welders Current Alternating Current Spindle Power 12kw, 14kw Working Area 200*100*150mm Table Material Aluminium Alloy Interface PCI Port or USB Port Operational Software Original Type3 Software, Artcam Software or Wentai Software Compatibility Support CAD/Cam Software, Plt Format, Corel Draw Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification ISO 9001 & CE Trademark Perfect Laser Origin China HS Code 84609090 Production Capacity 3000 Sets/Year

Product Description

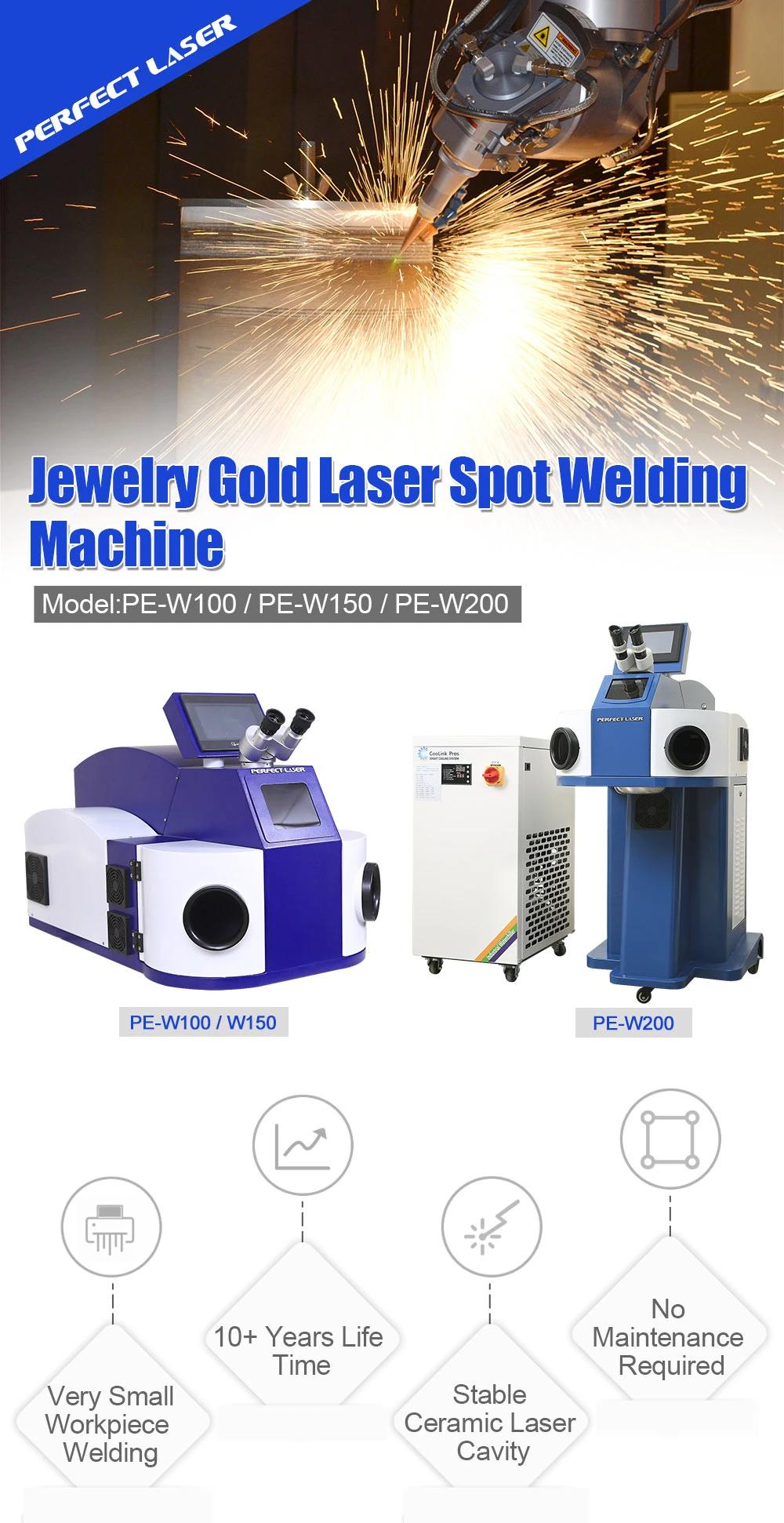

Channel Letter Welding repair Machine  (Model:PE-W200)


Product Introduction:
Laser welding machine is use high energy impulse laser to weld the material. It through laser power discharge to Xe lamp impulse to form light wave. The light wave radiate to Nd3+: YAG crystal through gather ray cavity, crystal send 1064nm in pulse laser through resonance, then it weld the materials through echo and focus.
Jewelry Channel Letter Welding Machine
Jewelry Channel Letter Welding Machine
Product Feature

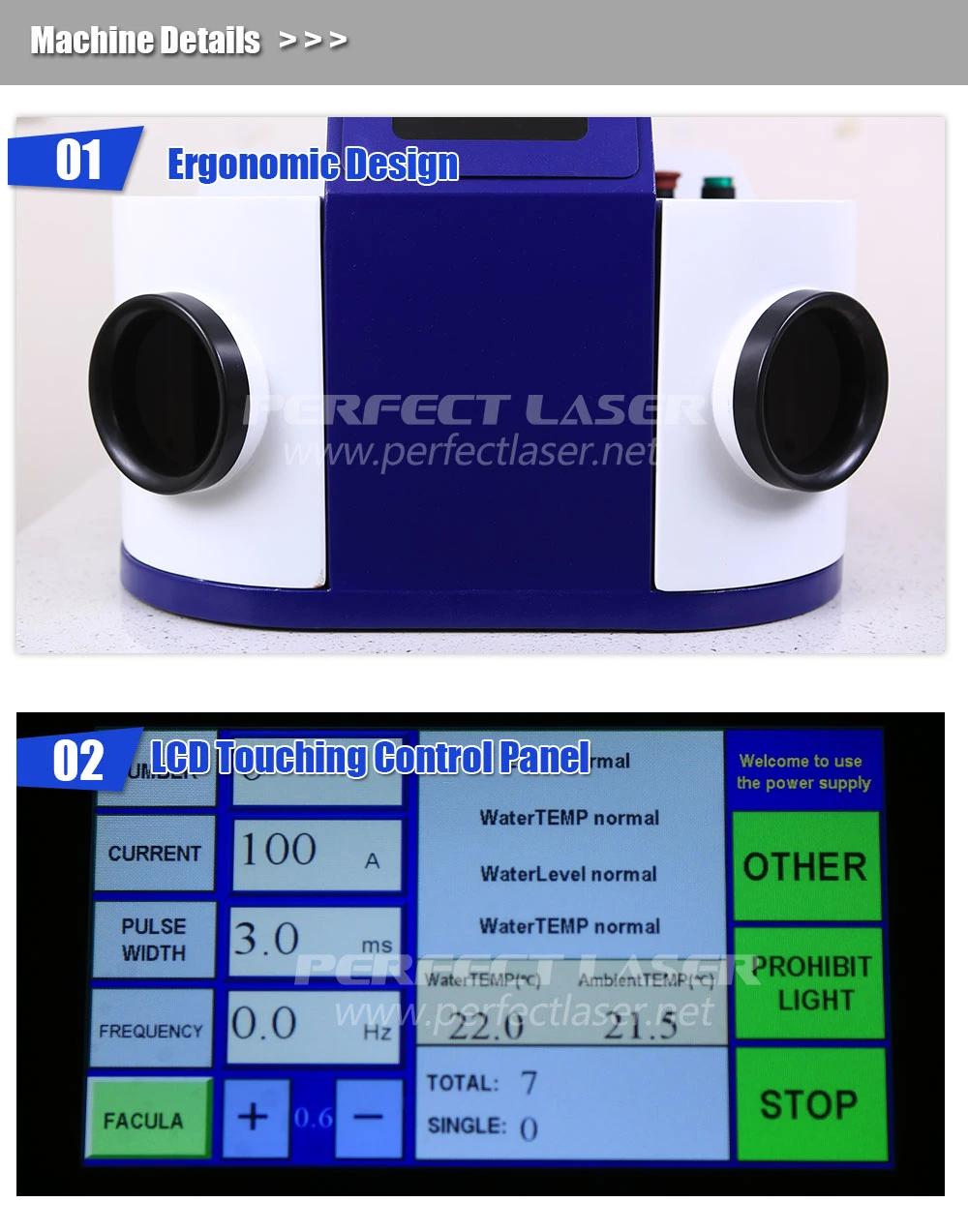

This series of models adopt integrative design, with compact and beautiful structure, high output power, good energy stability, excellent beam mode, simple and convenient operation, reliable performance, wide application and other characteristics.

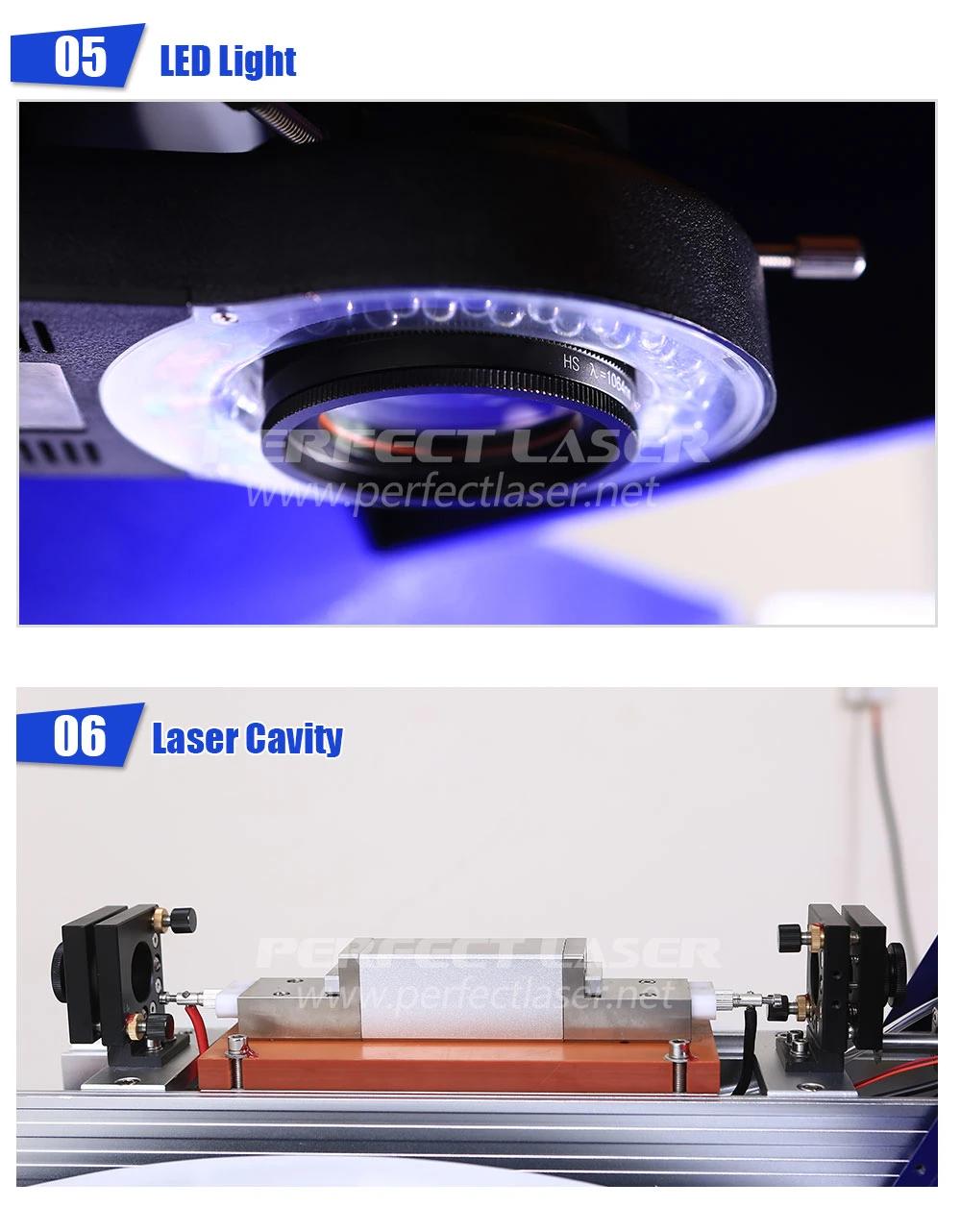

It adopts advanced Germany combined gold-plated reflector cavity laser technology, and use special beam election mode and shaping technology, which ensure a high output power and excellent beam mode. There is double-pulsed Xenon lamp incenting, constant current laser power, programmable pulse and intelligentzed management system, also the automatic protection system for disoperation and water lack from super temperature. It is equipped with PLC programmable controller / PC control (two-axis / 3-axis) working tables, and universal X/Y-axis two-dimension automatic moveable platform. It uses the semiconductor red light to direct position. The focus and the deflection angle of the laser can be moved manually from top to bottom. It is optional to select the close room / air confined space, manual descending and ascending platform, automatic rotary system and coaxial surveillance system, and other accessories.
Jewelry Channel Letter Welding MachineJewelry Channel Letter Welding MachineJewelry Channel Letter Welding MachineJewelry Channel Letter Welding Machine
Applied Fields
Widely applied in the fields of aeronautical and space, mechanism, electron, communication, dynamic, chemical, automobile manufacture and other industries.
The welding of automobile spare parts, such as hydraulic pressure jib, gasoline cleaner, left gas sensor, electromagnetic valve, and drive starting stator.
The close welding of lithium ion batteries, such as mobile phone batteries and power batteries.
In metallurgy industry, such as silicon steel plate welding.
The welding of sensor and engine lamina in application industry.
The precise spot welding of the electronic components and close welding of relay.
In electrical equipments industry, such as silicon steel sheet welding, the rotor of the air-conditioner drive welding, and creepage protection welding.

Jewelry Channel Letter Welding Machine
Jewelry Channel Letter Welding Machine
Jewelry Channel Letter Welding MachineJewelry Channel Letter Welding Machine
Contact us
Conatct Person:Sally  / sales department
