• Model NO.：532
• Laser Classification：Solid Laser
• Engraving Method：Vector Engraving
• Marking Speed：7000mm,S
• Resetting Positioning Accuracy：0.002
• Beam Quality：M2:1.2~1.8
• Certification Minimum Letter：English: 0.2 X 0.2mm
• Operational Temp Range：10-40c
• Scan Head：High Precision Digital Scan Head
• Warranty：2 Years on Laser Source
• Dimensions：820*690*1550mm
• Cooling Mode：Air Cooled
• Operational Humidity Range：5%-75%, Non-Condensing
• Transport Package：Plywood Case or as Your Request
• Specification：SGS,CE
• Trademark：Dapeng
• Origin：China Shenzhen
• HS Code：8414802000
• Production Capacity：50set Per Day

Basic Info.

Model NO. 532 Laser Classification Solid Laser Engraving Method Vector Engraving Marking Speed 7000mm/S Resetting Positioning Accuracy 0.002 Beam Quality M2:1.2~1.8 Certification Minimum Letter English: 0.2 X 0.2mm Operational Temp Range 10-40c Scan Head High Precision Digital Scan Head Warranty 2 Years on Laser Source Dimensions 820*690*1550mm Cooling Mode Air Cooled Operational Humidity Range 5%-75%, Non-Condensing Transport Package Plywood Case or as Your Request Specification SGS/CE Trademark Dapeng Origin China Shenzhen HS Code 8414802000 Production Capacity 50set Per Day

Product Description

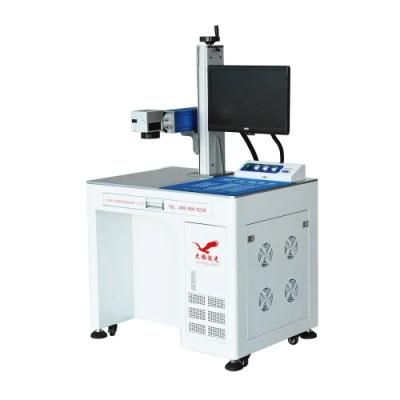

20w fiber laser marking machine for marking LED light bulb




Advantages:

Coast saving on power consumption/Unit Power only 0.6KW
No routine maintenance/ zero-maintenance
Life time over 100,000hrs
Air cooled/No chiller needed
Red aiming pointer/No more mistakes
Solid aluminum top work surface & Swing arm laptop stand
Portable tabletop units to automated production systems available

Specifications:


Model	DML-F20/30/50
Laser Power:	20W,30W,50W
Wavelenth:	1064nm
Standard Marking Area:	100mm*100mm
Optional Marking Area:	150mm*150mm,200mm*200mm,300mm*300mm
Marking Speed:	≤7000mm/s
Minimum Line Width	0.02mm
Minimum letter	English: 0.2 x 0.2mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.002
Beam Quality	M2:1.2~1.8
Electrical Requirements:	Ac220V±10%.50HZ.10Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<0.5kw
Operational Temp Range	10-40ºC
Operational Humidity Range	5%-75%, Non-condensing
Warranty:	1 years on laser source
Dimensions:	820*690*1550MM
Net Weight	160KG

Software:

True Type Fonts	Single Stroke Fonts	Elliptical Text
Sequential Serial Numbers	Customizable Auto Dating	Barcodes
QR Codes and Data Matrix	UID Wizard	Logos
Photo Quality Images - JPG, TIF, GIF	Corel Draw, Adobe Illustrator	Raster Graphics
Vector Graphics	CAD Files

Features:

Easy to Use Automation Features	Sharp, High Contrast, Impact Free	High Speed Galvo Steering
Compact	100,000 Hrs Laser Lifetime	2 Year Warranty
Turnkey System	Permanant Marking	Air Cooled/Energy Efficient
Tunable Pulse Rate	Environmentally Friendly/No Consumable	Digital I/O for Easy Operation
Fast Set-Up	Red Laser Pointer

Applications:

We offer Fiber Laser Marking Machine with following applications:
Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
Hall marking on Gold
Automotive & Engineering Industries
Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other  instruments
Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making

We also provides laser sources and spare parts to the laser machine manufacturers in China and surrounding countries.

MATERIALS:

Stainless Steel	Steel	Aluminum, Carbide
Nickel	Titanium	Cast Iron
Chrome	Painted Metal Alloys	Multi-Coated Metals
Plastics/Rubber	Backlit Buttons	Polycarbonate
PVC	Composites	Many more materials

sample marking but not for limit
