• Model NO.：LBGX-300-F
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Warranty：12 Months
• Consumable Items：No
• Working Life：100, 000hours
• Protection Cover：Customized
• Transport Package：Wrapping Film & Export Standard Wooden Cases
• Specification：670mmx1100mmx1150mmh
• Trademark：Label Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Units,Month

Basic Info.

Model NO. LBGX-300-F Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Warranty 12 Months Consumable Items No Working Life 100, 000hours Protection Cover Customized Transport Package Wrapping Film & Export Standard Wooden Cases Specification 670mmx1100mmx1150mmh Trademark Label Laser Origin China HS Code 8456110090 Production Capacity 500 Units/Month

Product Description

phone case marking engraving machine for sale (LBGX-300-G3)

Laser marking is typically a delicate process of creating a depth by removing the surface material, especially with the purpose of modifying its reflectivity and contrast. The laser marking systems at Label are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.

Selling Point of Products:
Equipped with Integrated protective cover and safety grating.
Meet the requirement of safety and environmental protection operation.





Product features:

• Good quality light beam, high stable output fiber laser and easily adjustable marking effect. The output laser facula is little, which is more suitable for some delicate graphic marks
• High reliability, stability. The size of the machine is very small, compact, no need big working space. All in one structure design, therefore simple and easy for maintainence. High laser frequency, more suitable for marking some non-metallic materials with fast speed.
• This machine is adopted air cooling, excellent cooling effect than the other cooling method. Low power consumption. No consumables,no need maintenance with 5 years, low cost.
• The laser light path is sealed, so it is safe and convenient for maintainence.
• Advanced hardware control technology and intelligent software. Easy operation.
• Environment friendly marking,never fade,meets the CE,ROHS Standard.

Laser Type	Fiber laser
Laser Power	10W 20W 30W 50W 100W
Model	LBGX-300-A,  LBGX-300-B,  LBGX-300-C,  LBGX-300-D, LBGX-300-E/F,  LBGX-300-G I/II/III,  LBGX-310-B, LBGX-320,
Laser Wavelength	1064nm
Laser Source	IPG, Raycus, or others based on customers' requirements
Marking Area	70mm*70mm,110*110mm,145mm*145mm, 150*150mm, 175mm*175mm, 255mm*255mm, 300mm*300mm
Marking Depth	≤0.6mm(depand on power, processed material and procedure)
Marking Speed	7000mm/s
Repeated Precision	±0.003mm
Marking Type	Figure, letter, charaters, automatic calender, count, serial no., ect. Barcode: code39/code128/PDF417, ect. QR code: DataMatrix, QR, ect. Graphic: multi-language charaters, CAD, DXF, BMP, JPEG, PLT, ect. Fixed point, straight line, broken line, circle, ellipse, elliptical arc, Bezier curve, ect. can also custom as request.
Marking State	Static, uniform motion, encoder
Marking Setting	Array direction: horizontal, vertical, curved, arc define coordinates. The arc shape can be set to define the starting angle, the ending angle and the radius. Linear transformation: rotatable character, can make the character X/Y mirror. Fill: define the fill mode and density
Minimum Character	0.3mm
Life-span of Fiber Laser Module	100,000hours
Beam Quality	M2 <1.1
Focus Spot Diameter	<0.01mm
Operation System and Software	Windows XP/2000 / Windows 7 LABELMARKE
Communication Interface	RS-232 serial port, TCP/IP network port, I/O port, ect.
Cooling Mode	Air cooling
Temperature of Operation Environment	5ºC~35ºC
Humidity of Operation Environment	30-85%( Condensation is not allowed)
Power Input	220V ( ±10%)/ 50HZ( ±5%)   single phase
Power Requirement	≤ 500W
Communication Interface	USB
Machine Dimension	750*650*1440mm
Optional	Rotary Device, Moving Table, other customized Automation

Advantages:

• The output facula of the laser is a fundamental mode, and the power density of the focused facula is large, which ensure the accuracy and speed of marking.
• The thinnest line width is 0.015mm, which can reach the quality of the fiber laser generator.
• Good processing effect for high-reflective materials (copper, silver, aluminum, etc. with low laser absorption rate)

Applicable field and material:

• Materials: metal and most of nonmetal

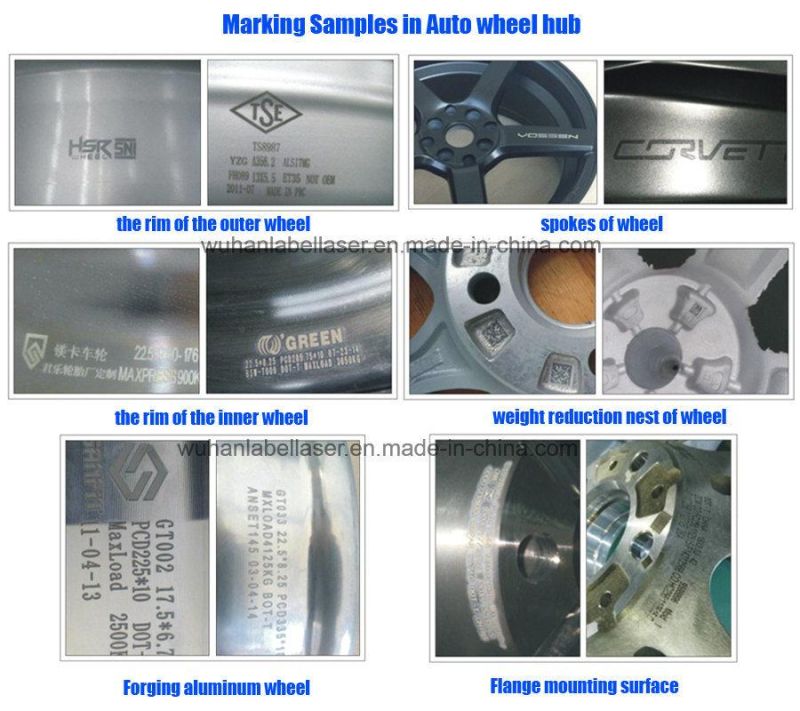

• Industries: electronic components, electrical appliances, IC, hardware tools, automobile parts, and accessories, precision machineries, apparatus and meters, plastic,ect.




About us:
      Wuhan Label Laser Science and Technology Co.,Ltd is a hi-tech corporation located in China Optics Valley in Wuhan City.
It has been specialized in researching and manufacturing industrial Laser marking equipments and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??

• 20 years of researching and manufacturing experience
• Advanced technology, researching and development group
• More than 3000+ successful cases of marking solution accumulated in domestic and oversea markets
• 100% QC
• Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
• ISO,CE,SGS certified

Packing & Shipping:
      - Packing :
          Anti-collision foam + wrapping film+ Export standard wooden case.

      - Shipping:

• Main transportation method: by sea.
• Other Option: by air or railway transportation.

 FAQ:

Q: What's laser marking ? And how laser marking machine works?
A: Laser marking is typically a delicate process of creating a depth by removing the surface material, especially with the purpose of modifying its reflectivity and contrast. The laser marking systems at Label Laser are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.

Q: How to operate the machine? Is training necessary?
A: The machine is mainly controlled by software and not complicated. Operation manual with pictures will be provided .
Generally speaking, an operator, who is not familiar with fiber laser marking machine can still operate it very well.

Q: In case machine exists the problem, how to do after sales service?
A: One-year warranty of the whole machine. We will help to solve any problems in this period.

Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.

Q: Any consumables for fiber laser marking machine?
A: No consumables. It's very economical and cost-effectient.
