Product Description

Leadshine Drive step driver/Laser engraving cutting machine/cnc router 2phase Stepper

Features

• High performance, cost-effective
• Supply voltage up to 18-80VAC
• Output current up to 7.2A
• Self-adjustment technology
• Pure-sinusoidal current control technology
• Pulse input frequency up to 300 KHz
• TTL compatible and optically isolated input
• Automatic idle-current reduction
• 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
• Suitable for 2-phase  motors
• Support PUL/DIR and CW/CCW modes
• Short-voltage, over-voltage, over-current and short-cicuit protection
• Suitable for 57CM23 57CM26  D57CM21  D57CM31 60CM30X  86CM35  86CM45 86CM85 motor

Overview

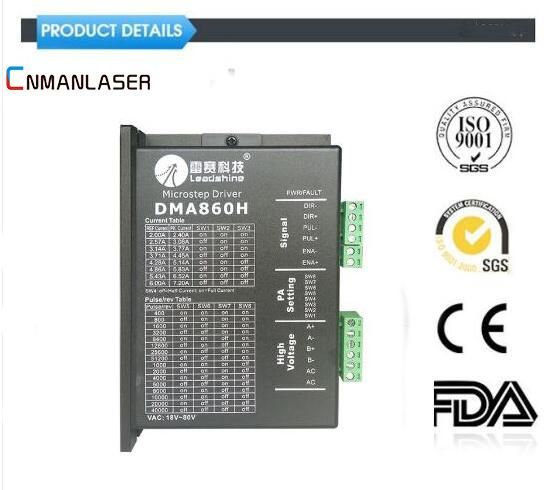

      Leadshine DMA860H is a high performance 2-phase stepper drive based on advanced pure sinusoidal current control technology. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.

stepper features anti-resonance which significantly reduces low-middle speed movement vibration/instability and motor noise. Because of the implementation of 3-state current control (On, Off, and Circulation), drive and motor heating are significantly lower than similar stepper drives on the markets. With the input voltage of 18 - 80 VAC  and output current of 1.80 - 7.20 A, DMA860H can drive a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and low motor heating.
 stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 400 - 51200, and 8 output current settings from 1.80 - 7.20. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.
