Lw-1500 1000W 2000W 1500W Portable Fiber Laser Welding Machine in China Taiwan for Stainless Steel

Shandong CCI Co., Ltd.
  • Application：Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
  • Technical Class：Continuous Wave Laser
  • Control：Manual
  • Power Density：Deep Fusion Welding
  • Laser Classification：Semiconductor Laser
  • Type：Optical Fiber Transmission Laser Welding Machine

Base Info

  • Model NO.：lw-1500
  • Transport Package：Wooden Case
  • Specification：260Kgs
  • Trademark：CCILASER
  • Origin：China
  • HS Code：8515809090
  • Production Capacity：100 Sets Per Month

Description

Series No.Technical ItemTechnical Parameters1Power Rate500W/ 1000W/ 1500W/2000W2Wavelength1064nm3Fiber Length8-10m (Standard) /15m (Max. Length)4Working TypeContinuous/ Modulation5Welding Speed0-120mm/s6Air Cooling ChillerInustrial Chiller7Working Temperature15-35 Centi Degree8Working HumidityLess than 70% No Condensation9Welding Thickness0.5-5mm10Welding GapLess than 0.5mm11Power SupplyAC220VMaterialAirThickness (mm)500w1000w1500w2000wAluminiumN21.0 √√√1.2 √√√1.5  √√2.0   √2.5   √Stainless SteelAr0.5√√√√0.8 √√√1.0 √√√1.2 √√√1.5 √√√2.0  √√2.5   √3.0   √Carbon SteelCO20.5√√√√0.8 √√√1.0 √√√1.2 √√√1.5 √√√2.0  √√2.5   √3.0   √Galvanized SheetAr0.5√√√√0.8 √√√1.0 √√√1.2 √√√1.5  √√2.0   √2.5   √ 8.Main Components

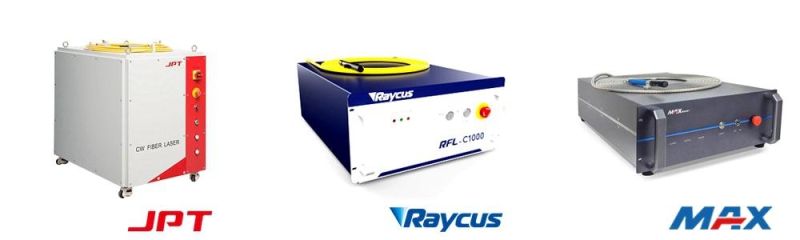

Laser Source: JPT/ Raycus/ MAXLw-1500 1000W 2000W 1500W Portable Fiber Laser Welding Machine in China Taiwan for Stainless Steel9. Contact Information
