Air Cooling 20W 30W Portable Laser Marking Machine with Computer

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-20
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

01Laser powerFiber 20W02Working area110*110mm/175*175mm/200*200mm03Laser Wavelength 1064nm04Response time0.5ms05Max marking depth≤0.5mm06Marking speed≤7000mm/s07Marking lines1-10 lines(in the marking area)08Minimum line width0.1mm09Minimum character0.15mm010Repeatability accuracy±0.002mm011Resolution ratio0.1mm012Marking contentText,pattern,date,bar code,etc013Operation systemMicrosoft Windows XP or Windows 7014Control softwareEZCAD control software015Graphic format supportedbmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.016Unit power≤1.2KW017Relative moisture≤ 90%,no fog018Supply Voltage220V/50Hz/10A

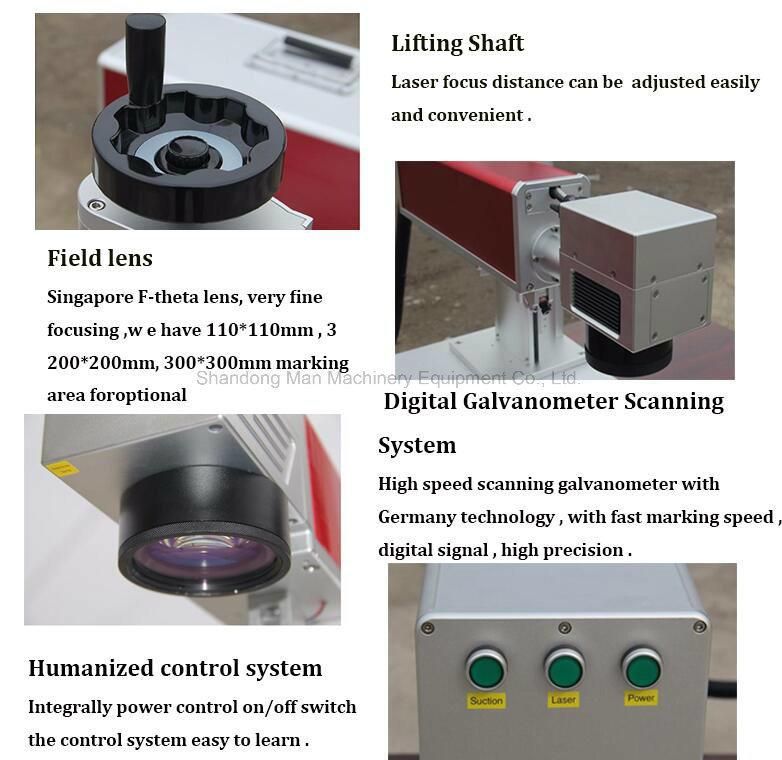

 DETAILS   IMAGES :
Air Cooling 20W 30W Portable Laser Marking Machine with Computer

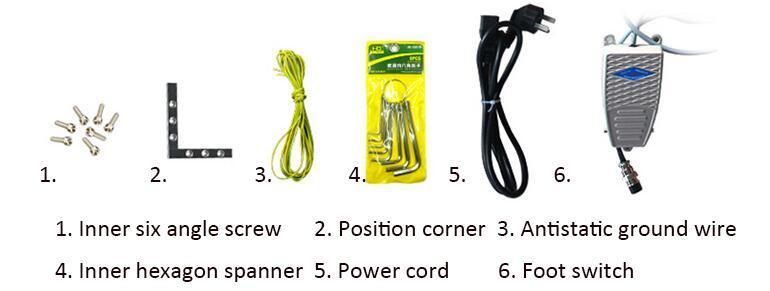

Laser parts with the machine :

Air Cooling 20W 30W Portable Laser Marking Machine with Computer

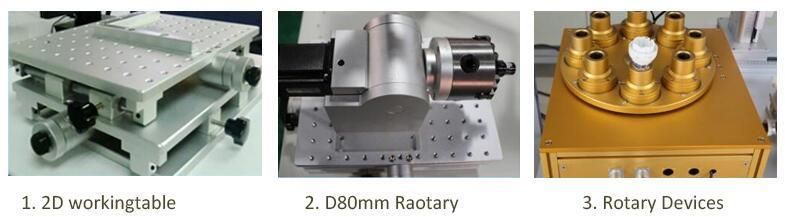

Optional Laser Parts :

Air Cooling 20W 30W Portable Laser Marking Machine with Computer

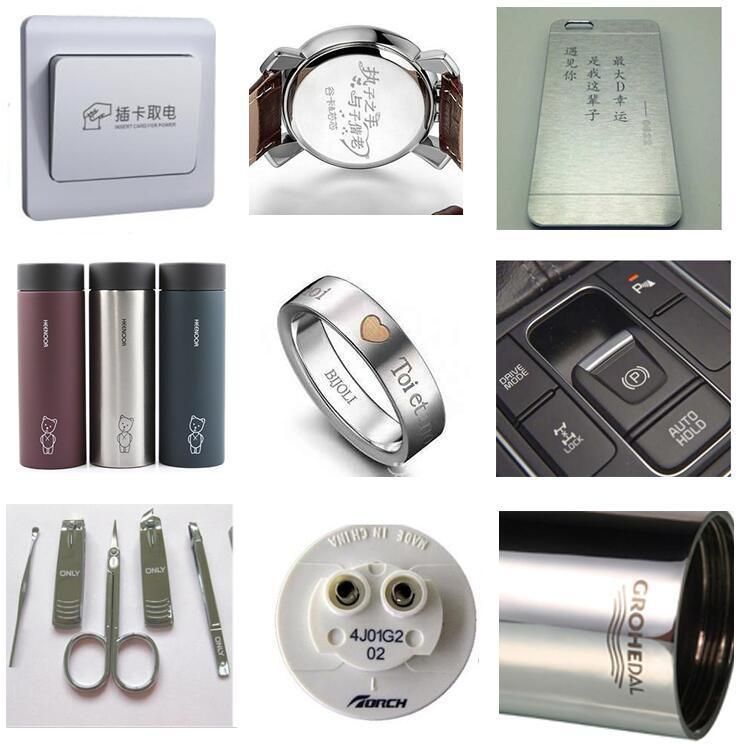

SAMPLE SHOW :
 1.INDUSTRY
 2.MATERIALS 1)Sports Equipment

2)Precision & General Engineering

3)Automotive

4)Domestic Appliances

5)Promotions & Giftware

6)Medical

7)Machine Cutting Tools

8)Electronic Devices1) Many type of metals

Gold, copper, aluminum, stainless steel, chrome, Brass .etc

2) Alloy and Metal oxides

3)Some non-metallic materials

Silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink Plating, Spraying, Coating film and special surface treatment.Air Cooling 20W 30W Portable Laser Marking Machine with Computer


 PACKAGING &  SHIPPING :
 Packaging size 82×36×59  cmGross weight 53kg Delivery time 2-7  working days after payment Shipping 1.Wood case or as per required.
2.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways  via reliable forwarder. Air Cooling 20W 30W Portable Laser Marking Machine with Computer
 FAQ :

1,How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL,

including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

2,How long is the delivery time?

For standard machines, it would be 7-10 days;

For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

3,Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.

For EXW price, clients need to arrange shipment by themselves or their agents.

4,How is the packing?

Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt

Save space as much as possible for container loading

SERVICES :

1).3  years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge

if there is any problem during the warranty period.

2).Lifetime maintenance free of charge.

3).Free training course at our plant.

4).We will provide the consumable parts at an agency price when you need replacement

5).24 hours on line service each day, free technical support.

6).Machine has been adjusted&tested before delivery.we will take machine photos and make machine working image for you,

after getting your agreement,then we will book a ship.

7).Provid technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance)

if customers pay the charges of ticket.

8).If you have any problem during your use.you need our technician to judge where the problem is and help you to solve it.

We can provide team viewer and skype with cam till all of your problems solved.
