30W Max Raycus Portable Laser Engraving Machine for Hammer

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility:Laser Marking Machine
  • Applicable Material:Stainless Steel and Leather
  • Cooling System:Fiber Laser
  • Technical Class:Fiber Laser Marking Machine
  • Laser Wavelength:Fiber Laser
  • Laser Classification:Laser Marking Machine

Base Info

  • Model NO.:MAN-30
  • Type:Semiconductor Laser Marking Machine
  • Marking Method:Scanning Marking
  • Current:AC
  • Marking Area:110*110mm
  • Min.Character Size:0.15mm
  • Graphic Format:Plt,Dxf,Ai
  • Consumbles:No Any Consumbles
  • Application Material:Metal
  • Operating Voltage:220V
  • Output Fiber Delivery Length:3m
  • Frequency Range:1-1000
  • Impulse Width (Ns):4-200
  • Transport Package:Wooden
  • Specification:Casae
  • Trademark:CNMANLASER
  • Origin:Shandong
  • HS Code:8456110090
  • Production Capacity:5000 Sets,Year

Description

Basic Info.

Model NO. MAN-30 Type Semiconductor Laser Marking Machine Marking Method Scanning Marking Current AC Marking Area 110*110mm Min.Character Size 0.15mm Graphic Format Plt,Dxf,Ai Consumbles No Any Consumbles Application Material Metal Operating Voltage 220V Output Fiber Delivery Length 3m Frequency Range 1-1000 Impulse Width (Ns) 4-200 Transport Package Wooden Specification Casae Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

30W Max Raycus Portable Laser Engraving Machine for hammer

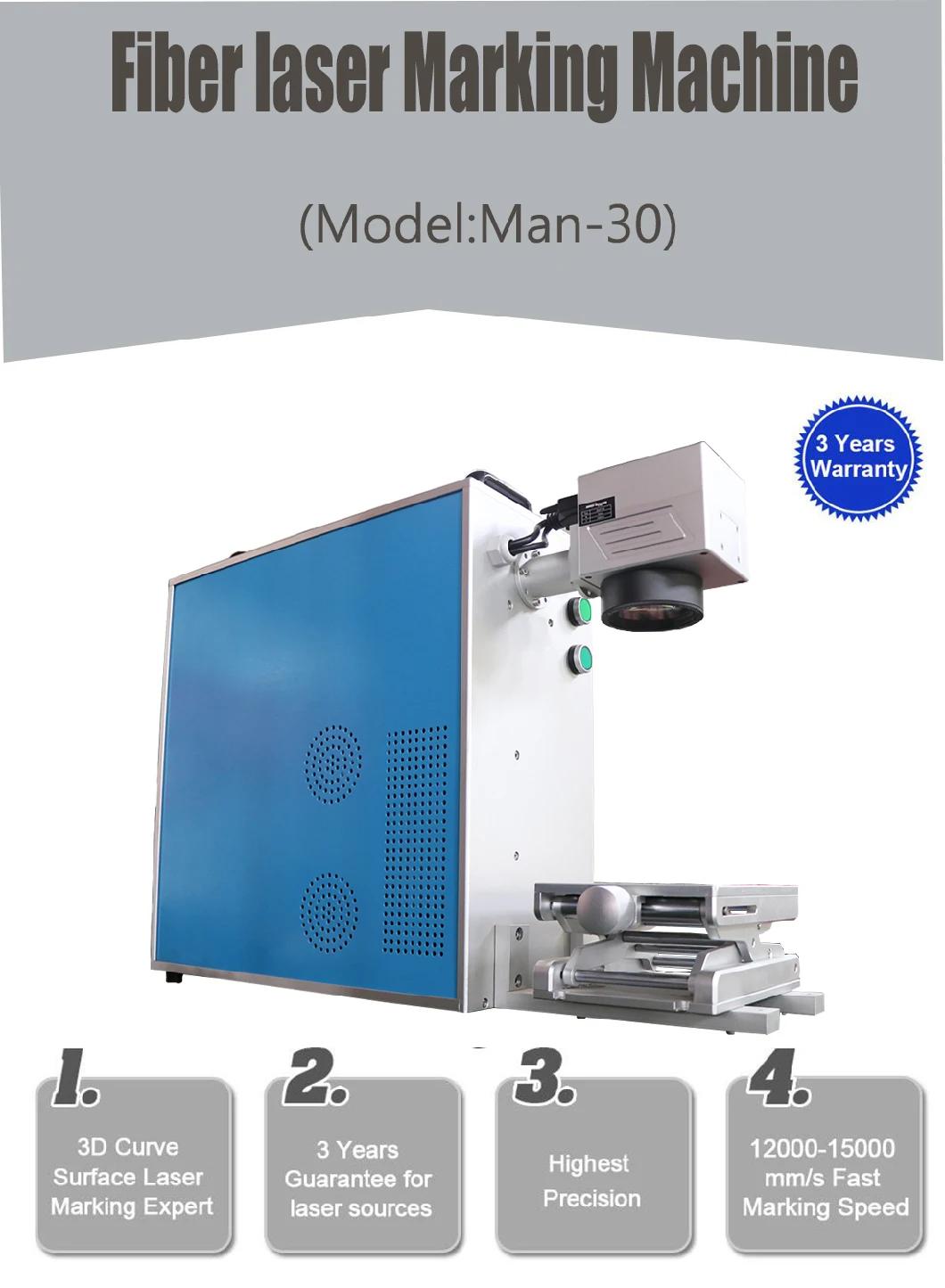

(Model:Man-30)30W Max Raycus Portable Laser Engraving Machine for Hammer


1. Able to mark all metal materials and some non-metallic materials.
2. Uses Germany IPG Fiber Laser Source. The Complete enclosed laser module design with the optical fiber transmission pump light source and air cooling system, which offers dust-free protection to the laser system. This greatly reduces the failure rate and results in stable laser output. It also provide a trouble and maintanence free laser system with a life span of 50, 000 hours for the laser system.
3. Able to mark a minimum line width of 0.02mm, minimum height of 0.2mm for English characters and depth of up to 1mm.
4. The MAN-30 is currently the best choice for industries seeking deep and fine marking at a fast speed.
5. Ergonomically designed. Can be placed on desktop, taking up a small working space. Low power consumption of 800W. Highly recommended for factories and retail space.
6. Low power consumption of 800W. Highly recommended for factories and retail space.
7. WINDOWS based marking software. Able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, DXF, BMP, JPEG. Support for auto-coding, serial number, batch number, date, bar code and two-dimensional codes.
8. Able to mark 360° Circular objects such as finger rings, bracelets and other cylindrical objects with the included rotating device.


30W Max Raycus Portable Laser Engraving Machine for Hammer


30W Max Raycus Portable Laser Engraving Machine for Hammer

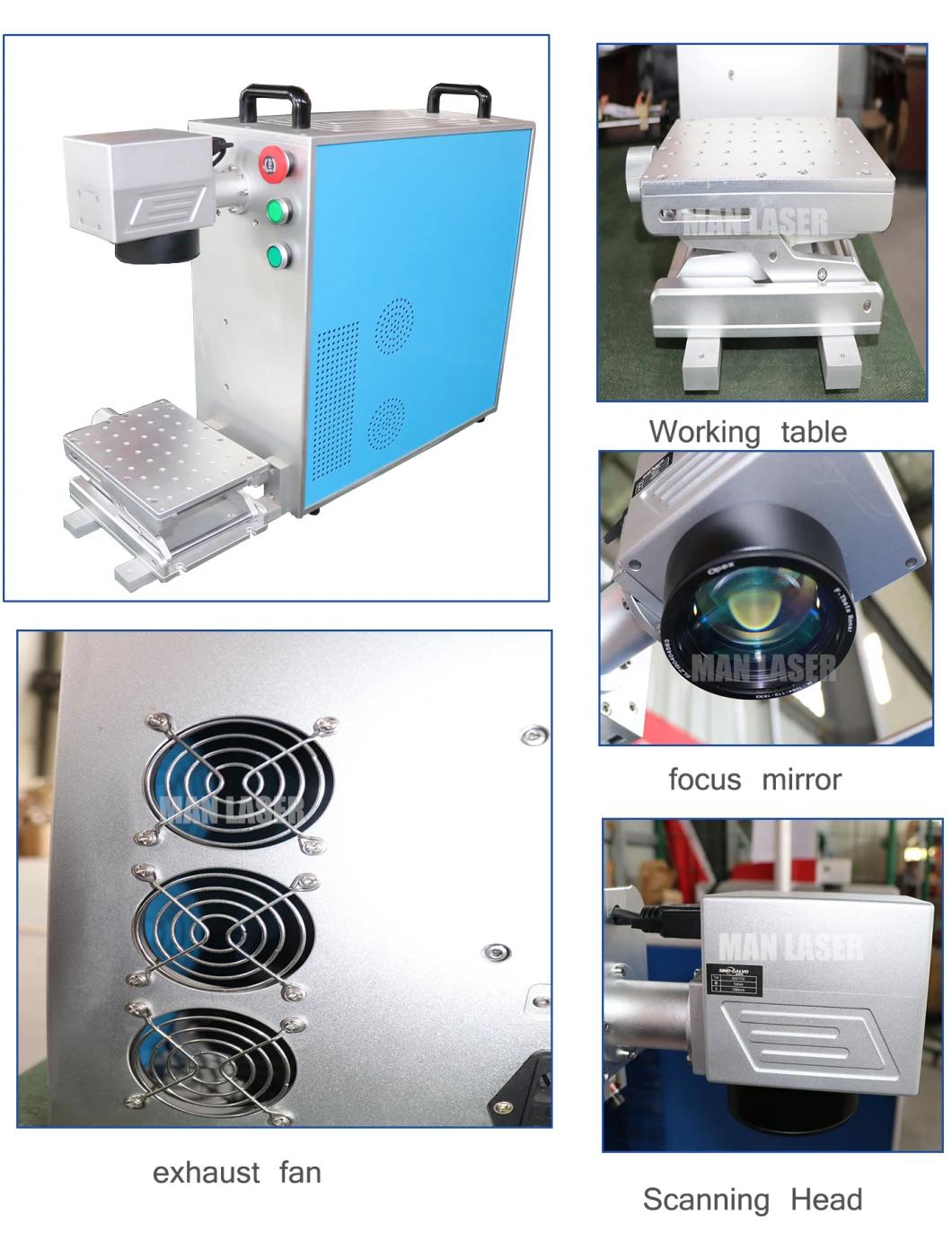

1.Germany Made Fiber Laser Sources>> A Wide Selectivity of Operating Wavelengths, Ultra-Low Amplitude Noise, High Stability and Ultra-Long Lifetime

2. Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.

3. Focus Mirror>> Singapore famous "Wavelength" brand, Fast speed, high transparent rate

4. Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.

5. Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.

6. 3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.

7. Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.

8. Portable Handle>>Easy to held the machine by hand.

9. Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.

10. Key Switch>> Using key swith to control the power of the machine.

11. Main Switch>> It is designed as a easy button, safe and efficient.
ModelMAN-F10/20/30/50
Laser power10W/20W/30W/50W
Laser Wavelength1064±10nm
Q-frequency20KHz~100KHz
Divergence0.3mard
Marking range110*110mm/150*150mm/200*200mm/300*300mm
Minimum line width0.01mm
Minimum character0.1mm
Marking speed7000mm/s
Marking depth0 ~1mm
Engraving line speed≤7000mm/s
Repeatability accuracy±0.001mm
Beam qualityM2:1.2~1.8
Marking Format

Graphics, text, bar codes, two-dimensional code, automatically
marking the date, batch number, serial number,frequency,etc.
Graphic format supportedbmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
working voltage220V±10%/50Hz/4A
Unit power0.5kw
Working environmentClean and dust free or dust less
Working (Humidity)5%-75%,free of
condensed water
Laser module life100000 hours
Net weight35kg
Warranty36 months


30W Max Raycus Portable Laser Engraving Machine for Hammer

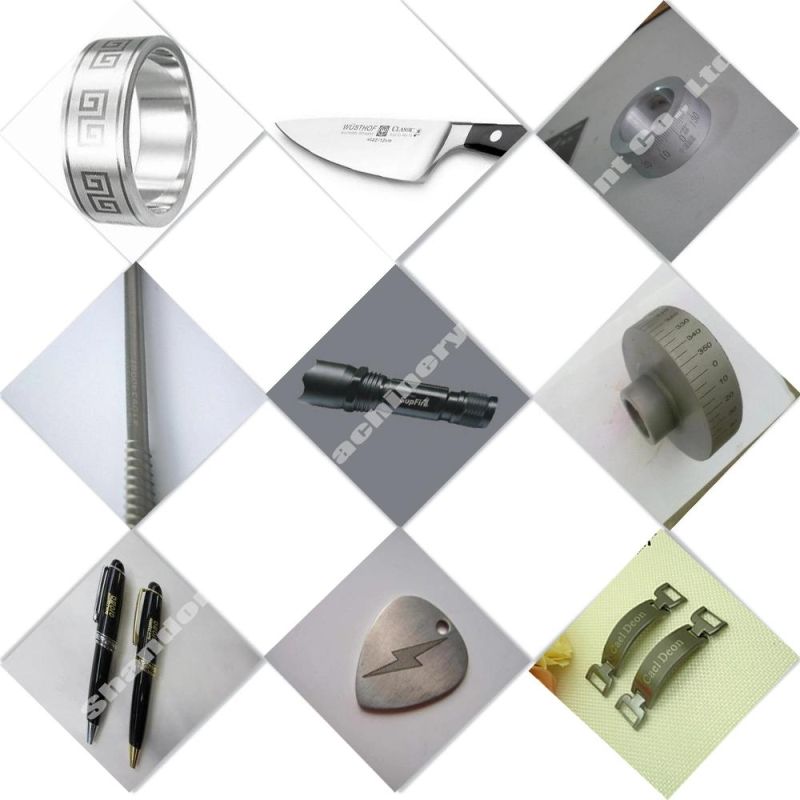

It is widely used in industrial: bearings, gears, and a variety of automotive parts, hardware and tools, aerospace components, integrated circuit chips, computer accessories, watches, electronics and communications products.Home appliances, wire and cable, food packaging, jewelery, tobacco.
Jewelry, adornments, rings, necklace, bracelet and many other areas of graphics and text markup.
Components of automobiles and motorcycle, packaging of goods, drink and cigarette, Nameplate and etc.


30W Max Raycus Portable Laser Engraving Machine for Hammer



30W Max Raycus Portable Laser Engraving Machine for Hammer30W Max Raycus Portable Laser Engraving Machine for Hammer

30W Max Raycus Portable Laser Engraving Machine for Hammer
30W Max Raycus Portable Laser Engraving Machine for Hammer
1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)

2) Free Training Factory:You can send operator to laser marker factory for free training. Laser marker will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)

3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.

Quality Guarantee and After-sales Services
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.

2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.

3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;
