• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：860*360*760mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 860*360*760mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

portable fiber laser marking machine with ezcad software raycus sources



 TECHNICAL  PARAMETER :

01	Model	MAN-FC20/ MAN-FC30
02	Laser power	Fiber 10W/20W air cooling
03	Working area	110*110mm
04	Laser Wavelength	1064nm
05	Response time	0.5ms
06	Frequency of pulse	20-100KHz
07	Max marking depth	≤0.4mm
08	Marking speed	≤7000mm/s
09	Marking lines	1-10 lines(in the marking area)
010	Minimum line width	0.1mm
011	Minimum character	0.15mm
012	Repeatability accuracy	±0.002mm
013	Resolution ratio	0.1mm
014	Marking content	Text,pattern,date,bar code,etc
015	Operation system	Microsoft Windows XP or Windows 2000
016	Control software	EZCAD control software
017	Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
018	Unit power	≤1.2KW
019	Operation temperature	5°C-40°C
020	Relative moisture	≤ 90%,no fog
021	Supply Voltage	220V/50Hz/10A

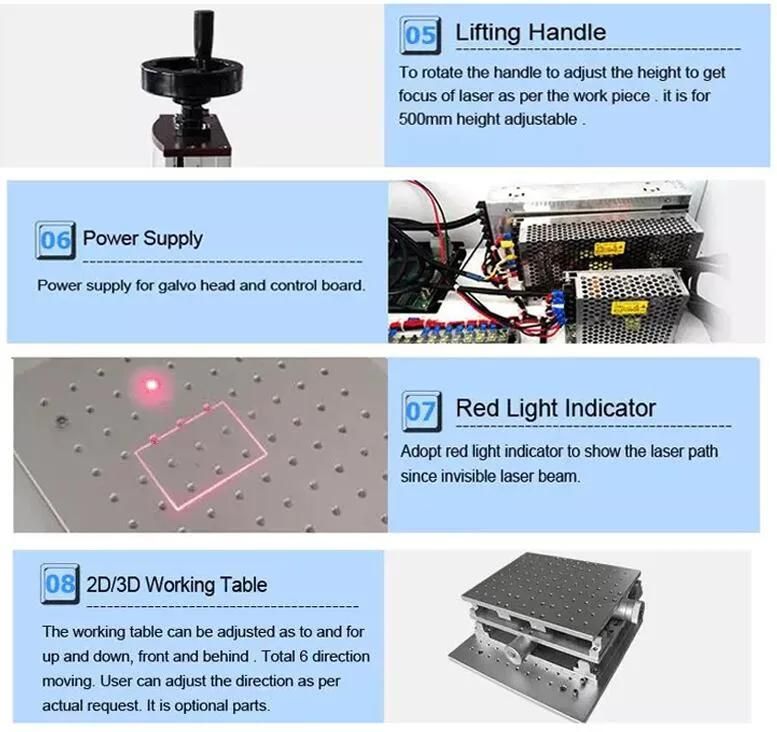

  DETAILS   IMAGES :

 SAMPLE SHOW :

Applicable Industry:

gold & silver jewellery, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus and instruments, watches & glassware,

  auto accessories, electronic hardware.

Applicable Materials:

gold & silver, stainless steel, ceram, plactic, glass, stone, leather, cloth, bamboo and so on.

Applicaion Show:

auto accessories marking, tobacco products marking, beer bottle marking,ring marking, electronic products marking.

 PACKAGING &  SHIPPING :
1. We can ship. air or land to your city, it is according to your location, and machine packing size.

And freight charge you need to pay for it.

We also support FOB if you have your own shipment agent.

2. Our machine producing time is 7-15 working days.

3. Delivery time, from Qingdao port to your near port, different port the time is different.

SERVICES  :

1. Machine has been tested before package

2. 36  months warrantry, the machine main parts(excluding the cosumables) shall be changed free of charge if have quality problem.

3. Lifetime maintenance for free.

4. Free training through internet, also in our factory.

5. Service people can help you learn and solve the problems by email,skype and whatsapp.
