• Engraving Method：Vector Engraving
• Working Table Size：600mmm *900mm
• Laser Tube：Sealed CO2 Glass Tube ,W2 Reci Laser Tube
• Working Table：Honeycomb and Blade Table
• Laser Power：100W
• Cutting Speed：0-60 mm,S
• Engraving Speed：0-500mm,S
• Resolution：±0.05mm,1000dpi
• Minimum Letter：English 1×1mm (Chinese Characters 2*2mm)
• Support Fils：BMP,Hpgl,Plt,Dst and Ai
• Software：Rd Works
• Power Voltage：AC 110 or 220V±10%,50-60Hz
• Z-Axis Movement：Automatic
• Transport Package：Standard Export Wooden Case
• Specification：175*110*105cm
• Trademark：Laser Max
• Origin：China
• HS Code：8456110090
• Production Capacity：2400PCS,Year

Model

CCD Laser engraver LM6090

Working Table Size

600mmm *900mm

Laser Tube

Sealed CO2 glass Tube      /W2 reci laser tube

Working Table

Honeycomb  and Blade table

Laser Power

100W

Cutting Speed

0-60 mm/s

Engraving Speed

0-500mm/s

Resolution

±0.05mm/1000DPI

Minimum Letter

English 1×1mm (Chinese Characters 2*2mm)

Support Fils

BMP,HPGL,PLT,DST and AI

Interface

USB2.0

Software

RD Works

Computer system

Windows XP/win7/ win8/win10

Motor

Stepper Motor

Power Voltage

AC 110 or 220V±10%,50-60Hz

Power cable

European Type/China Type/America Type/UK Type

Working Environment

0-45ºC(temperature)      5-95%(humidity)

Power consumption

<900W (Total)

Z-Axis Movement

Automatic

Position system

Red-light pointer

Cooling way

Water cooling and protection system

Cutting thickness

Please consult sales

Packing Size

175*110*105cm

Gross Weight

175KG

Package

Standard plywood case for export

Warranty

All life free tech support, one year warranty, except consumables like laser tube, mirror and lens, etc.

Free accessories

Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable

Optional parts

Spare focus lens

Spare reflecting mirror

Spare rotary for cylinder materials

Industrial Water cooler



Functional features

1, With the camera positioning vision system and the computer software working in tandem, the slightest stretching deformation of the fabric can be automatically tracked and compensated for throughout the process, ensuring precise and accurate cutting.

2,With imported high performance AC servo motors, the cutter can run more smoothly, with higher precision and faster speed.

3,The fully automatic camera positioning cutting machine takes in the pattern into the computer through the vision system during operation, and through processing, it can automatically search for the workpiece and position it accurately for cutting, avoiding the user from being overwhelmed by inaccurate positioning.

4,The fast continuous curve cutting function is achieved due to the powerful data processing capability of high-end DSP technology, the targeted design of the computer software and the meticulous cooperation of the precision mechanical system, cutting straight lines without distortion and cutting curves without distortion at high speed.
Parts

Necessary attachment like: water pump, air pump, exhaust fan,software, laser tube,stepper motor, Focus lens, Mirror 3 pieces,English friendly user manual,data cable and other free parts.

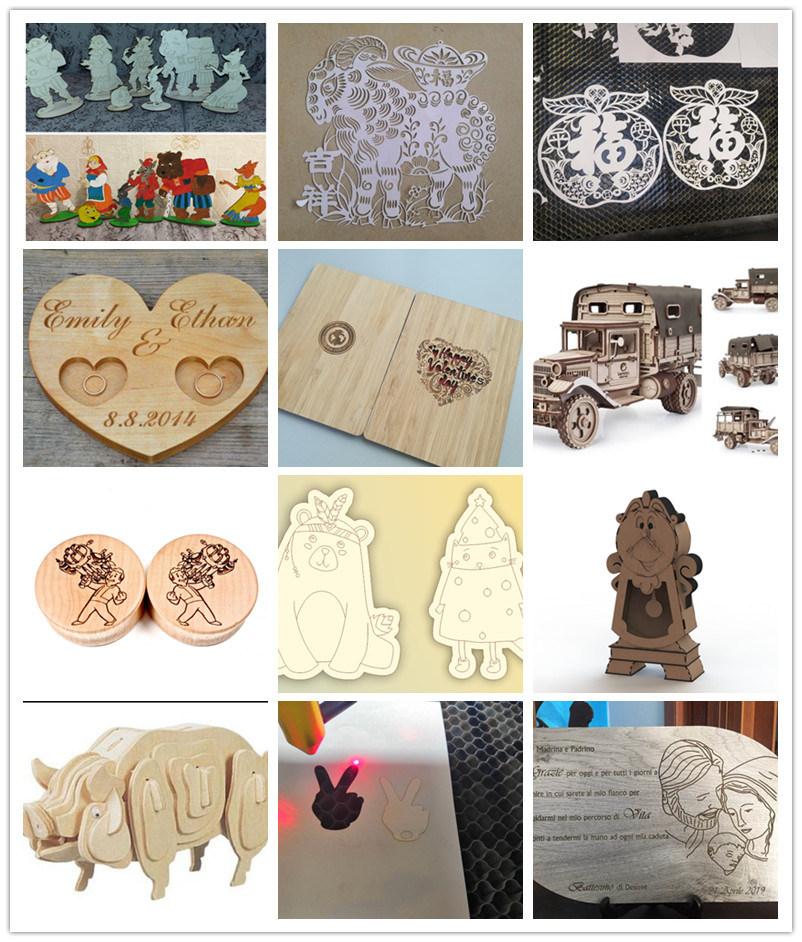

Samples Show

laser cutting has been widely used for engraving and cutting on nonmetal material, including acrylic, wood, plexiglass,architectural models, rubber plates, bamboo products, arts& crafts, panel, lenses, wood& bamboo carving,signboards, crystal characters, packing boxes, models, toys, furniture, textile, fabric, cloth, leather, garment etc.
