• Model NO.：LK-DBW
• Warranty：1 Year
• Certificate：Ce.ISO9001,FDA
• Size of Welding Spot：0.2-0.6mm
• Transport Package：Wooden Case
• Specification：1100*800*2000mm
• Trademark：LK
• Origin：China
• HS Code：8515809010
• Production Capacity：500sets , Month

Basic Info.

Model NO. LK-DBW Warranty 1 Year Certificate Ce.ISO9001,FDA Size of Welding Spot 0.2-0.6mm Transport Package Wooden Case Specification 1100*800*2000mm Trademark LK Origin China HS Code 8515809010 Production Capacity 500sets / Month

Product Description

Mould repairing laser welding machine price mold laser welder for sale
Feature
Faster and better than traditional welding machine
Nice welding performance ,hihg precision ,saves cost
Update structure of manipulator system
Automatic control system with nice repair effect
Economical and affordable
Good welding effect ,welding firmly
Small heat afected area m weid applicability


Technical Parameters

Model	LK-DBW200	LK-DBW300
Max.Laser Power	200W	300W
Laser type	YAG	YAG
Laser Wavelength	1064um	1064um
Pulse width	0.1-20ms	0.1-20ms
Pulse Energy	80J	120J
Pulse Frequency	0-50HZ	0-50HZ
Laser Welding Area	1m*1m*900mm	1m*1m*900mm
Size of welding spot	0.2-0.6mm	0.2-1.0mm
Adjusting Range of Light spot	1.8mm	1.8mm
Max. Bearing Of Standard Work Bench	100KG	100KG
Repeating Precision of Work Bench	-0.001	-0.001
Sighting Positioning system	Microscope ,HD-CCD monitor system	Microscope ,HD-CCD monitor system
Cooling System	Water cooling	Water cooling
Max. Output Power	200W	300W
Power Supply	AC220VAC/380VAC+-15%/50HZ/25A	AC220VAC/380VAC+-15%/50HZ/25A
Manipulater system dimensions	1100*800*2000mm	1100*800*2000mm
Optical system dimensions	400*540*650mm	400*540*650mm
Power system dimensions	860*600*940mm	860*600*940mm
Cooling system dimensions	860*600*940mm	860*600*940mm

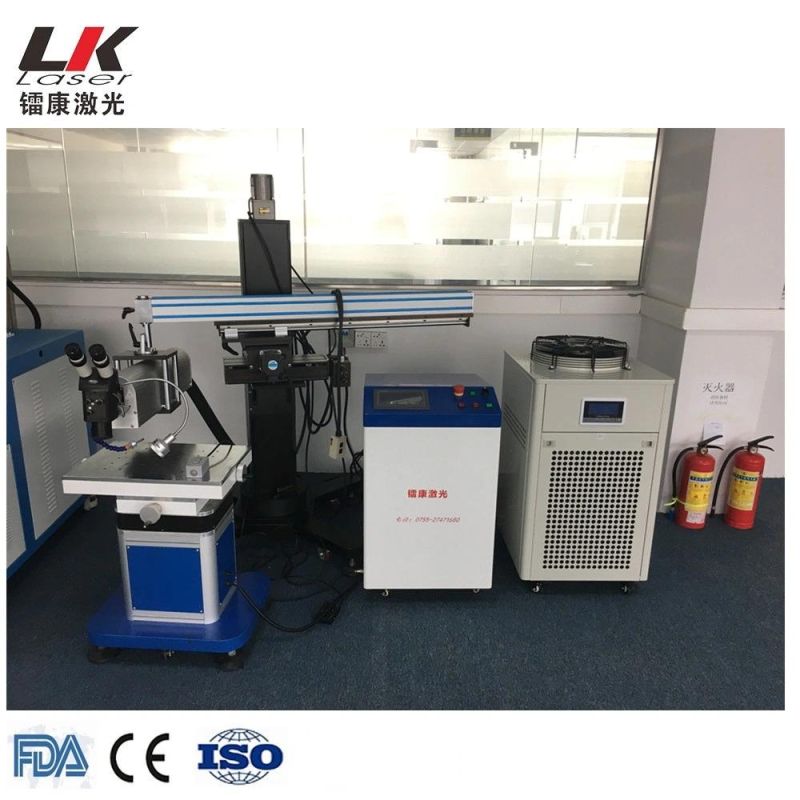

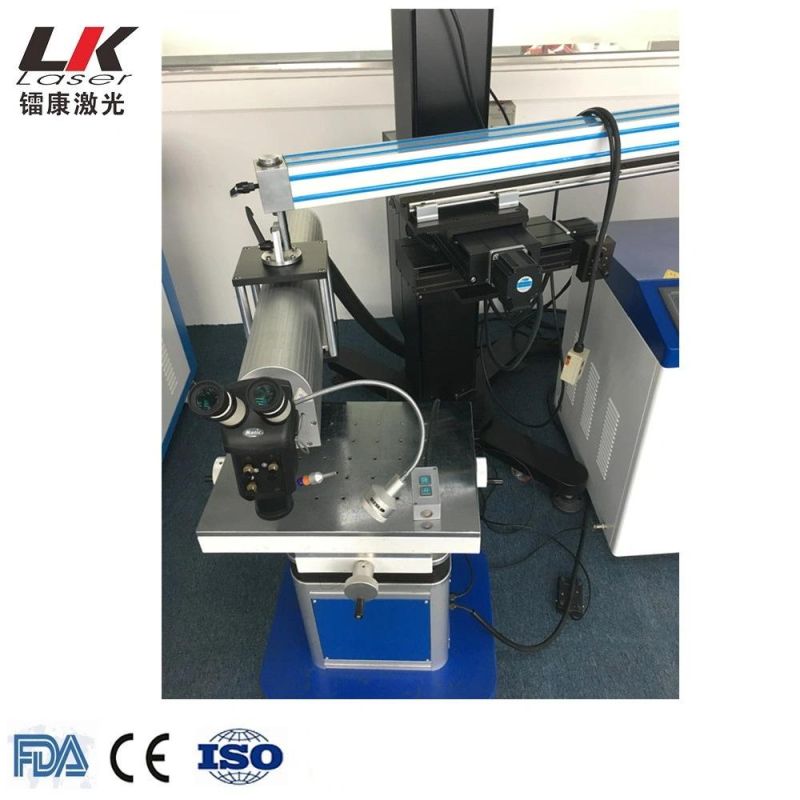

The machine mechanical arm could  lifted up and down, 360 degree rotation, and can weld large molds with a radius of 1.5 meters and a few tons of weight. The equipment is equipped with roller skating and easy to move. It can be moved  to injection or die-casting mold for direct repair.

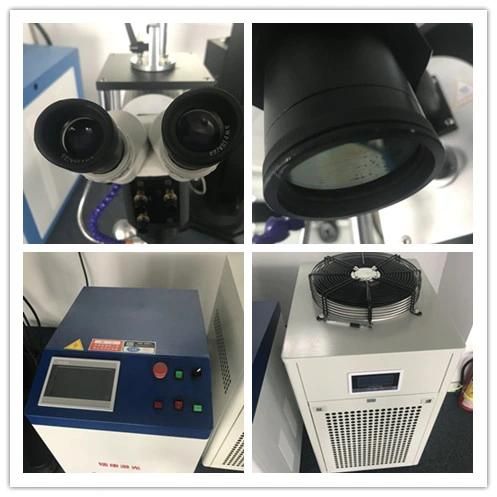

With Mircroscope ,mechanical arm ,opration system .water chiler system .



Application & Material
Large-scale mold laser welding, such as automotive molds, casing molds, tire molds and other large plastic and die-casting molds
Its fit for stainless steel ,iron ,alloy ,mold steel and herd metal (such as :SKD11,136,H13,NAK80,8407,718,738,P20,2316,2344)
Widely used in big parts repair such as: car molds ,tire molds, stamping molds ,Injection mold ,and casting molding etc.




Packing &Shipping

1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment

Our Service

1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
