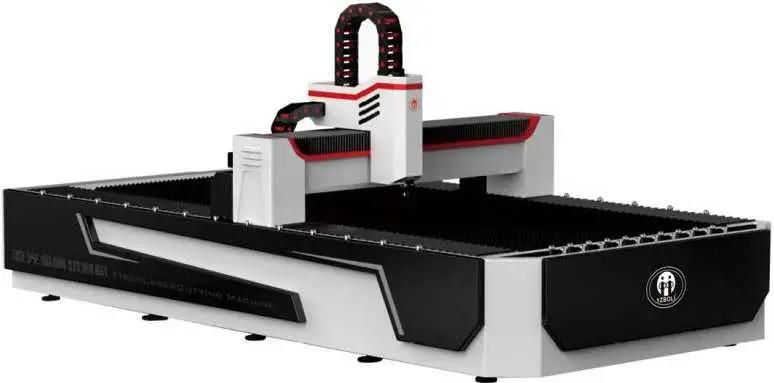

Open Type Fiber Laser Cutting Machine
YANGZHOU RZF IMP. AND EXP. CO., LTD.- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Solid Laser
Base Info
- Model NO.：LM301GG LM4020G LM6020G
- Laser Technology：Laser Control Fault Cutting
- Laser Generator：Ipg,Nlight,Raycus
- Transport Package：Export Package
- Trademark：Boli
- Origin：China
- HS Code：8456110090
- Production Capacity：10000
Description
Basic Info.
Model NO. LM301GG LM4020G LM6020G Laser Technology Laser Control Fault Cutting Laser Generator Ipg/Nlight/Raycus Transport Package Export Package Trademark Boli Origin China HS Code 8456110090 Production Capacity 10000Product Description
Applicable materrials
Stainless Steel, Cartx)n Steel, Copper, Alloy Steel, Galvanizedplate,
Aluminum Plate, Titaniumalloy and other alloy plate.
Technical Parameters
| Model | Unit | LM3015G | LM4020G | LM6020G |
| Work area | mm | 1500x3000 | 2000x4000 | 2000*6000 |
| Position accuracy | mm | ±0.02/1000 | ||
| Reposition accuracy | mm | ±0.03 | ||
| Maximum speed | m/min | 140 | ||
| Maximum accelerated speed | G | 1.5 | ||
| Laser model | Fiber laser generator | |||
| Laser power | W | 800-3000 | ||
| Max. cutting speed | Depending on th© material and thickness | |||
| Transmission system | Gantry double-dnve structure | |||
| Operating platform | single operation platform | |||
| Power supply | Triphase 380V/50Hz/60Hz | |||
| Total power | <8KW (not include the laser) | |||
| Overall dimension | mm | 5000x3500 (lb working area 1500*3000 for example) |
