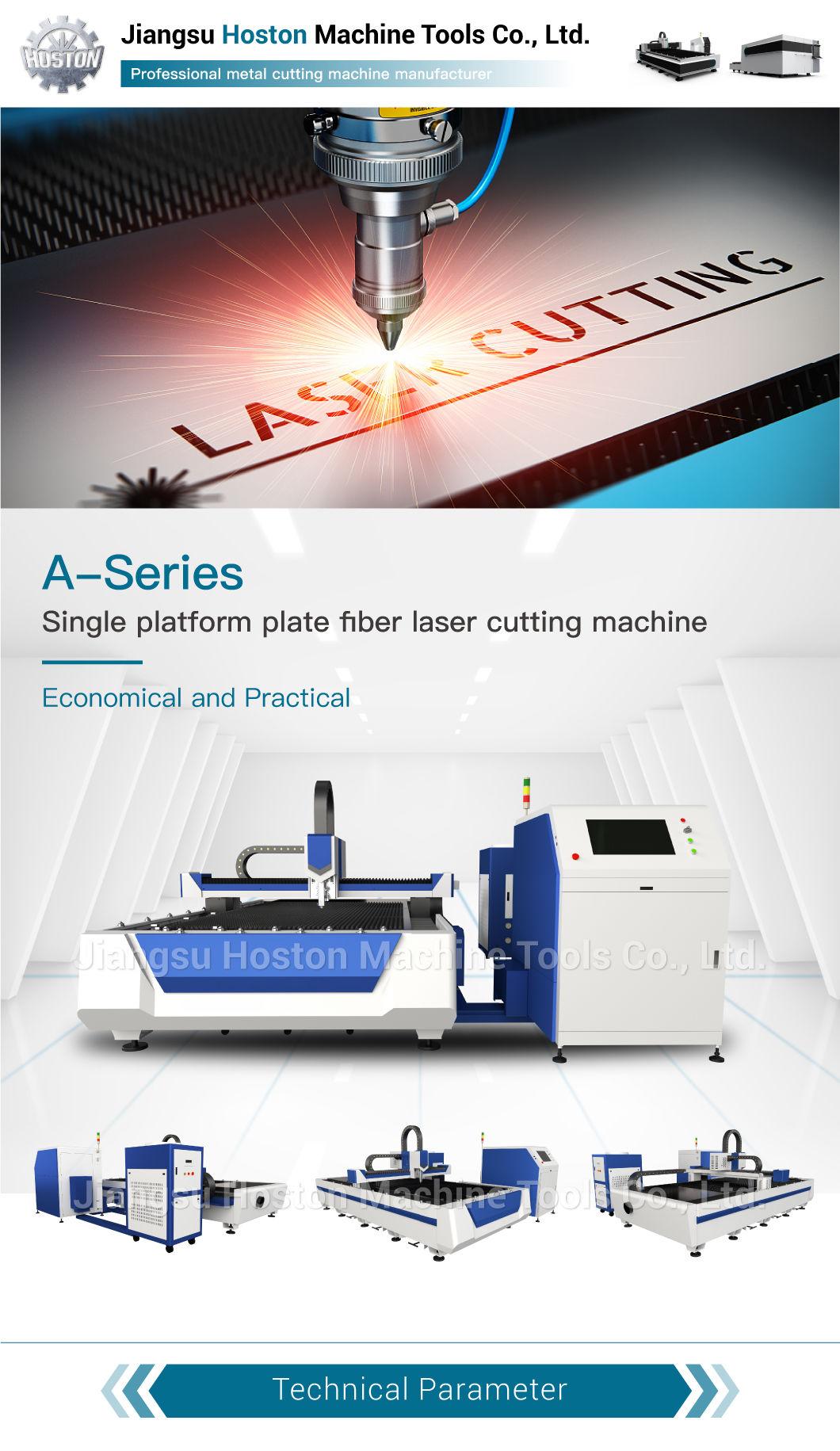

1000 Watt 3000W 6000W 2mm 6mm Sheet Metal CNC Fiber Laser Cutting Machine
Jiangsu Hoston Machine Tools Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Years
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
Base Info
- Structure Type：Gantry Type
- Laser Classification：Solid Laser
- Laser Technology：Laser Flame Cutting
- Working Area：1500*3000
- Exchange Mode：Horizontal Exchange
- Laser Power：1500W-20000W
- Max. Cutting Speed：120m,Min
- Max. Acceleration：1.0g
- Positioning Accuracy：0.08mm
- Repeated Positioning Accuracy：0.02mm

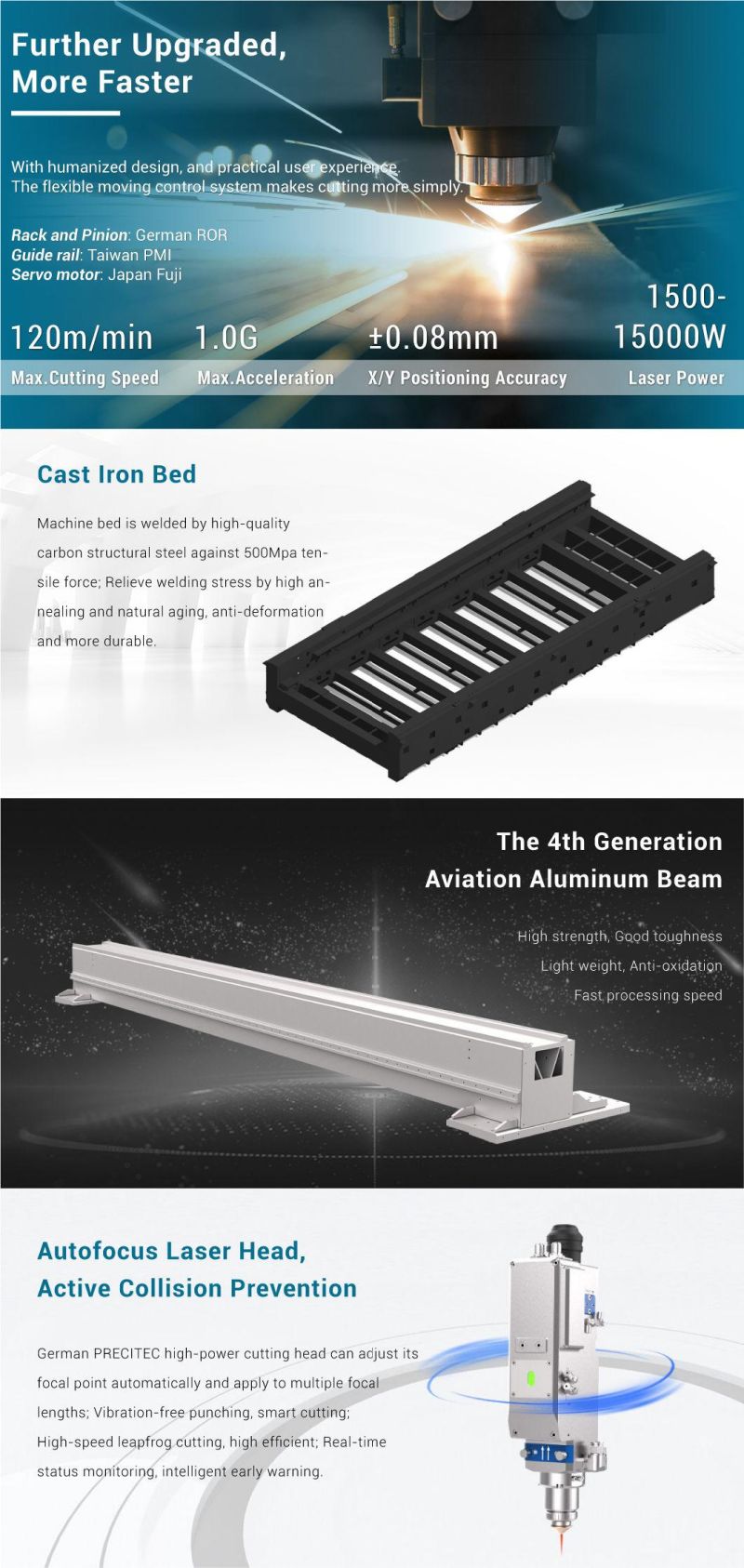

- Transmission：Precise Rack and Pinion
- Application Material：Metal Sheet Iron,CS,Ss,Aluminum,Copper
- Power Consumption：8kw
- Transport Package：Wooden Package
- Specification：8700*5000*2300mm
- Origin：China
Description
Basic Info.
Structure Type Gantry Type Laser Classification Solid Laser Laser Technology Laser Flame Cutting Working Area 1500*3000 Exchange Mode Horizontal Exchange Laser Power 1500W-20000W Max. Cutting Speed 120m/Min Max. Acceleration 1.0g Positioning Accuracy 0.08mm Repeated Positioning Accuracy 0.02mm Transmission Precise Rack and Pinion Application Material Metal Sheet Iron/CS/Ss/Aluminum/Copper Power Consumption 8kw Transport Package Wooden Package Specification 8700*5000*2300mm Origin ChinaProduct Description
| Model | 1530 | 1540 | 2040 | 2060 | 2560 | 25120 |
| Working Area (mm) | 1500×3000 | 1500×4000 | 2000×4000 | 2000×6000 | 2500×6000 | 2500×12000 |
| Machine Dimension (mm) | 5000×4200×2200 | 6000×4200×2200 | 6000×4800×2200 | 8400×4800×2200 | 8500×6200×2300 | 15400×6700×2600 |
| Max. Cutting Speed (mm) | 120 | 120 | 120 | 120 | 120 | 120 |
| Max. Acceleration (G) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| X/Y Positioning Accuracy (mm) | ±0.08 | ±0.08 | ±0.08 | ±0.08 | ±0.08 | ±0.08 |
| X/Y Repeated Positioning Accuracy (mm) | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Operating Voltage (V/Hz ) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Laser power (W) | 1500-15000 | 1500-15000 | 1500-15000 | 1500-15000 | 1500-15000 | 1500-15000 |
| Power consumption (KW) | 6 | 6 | 6 | 6 | 6 | 6 |
| Machine Running Temperature (ºC) | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 |
| Machine Running Humidity | <90% | <90% | <90% | <90% | <90% | <90% |
| Transmission | Precise rack and pinion | Precise rack and pinion | Precise rack and pinion | Precise rack and pinion | Precise rack and pinion | Precise rack and pinion |
