• Model NO.：YLP-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model No.：Ylp-20 Series
• Certification：SGS, Ce
• Control：Automatic
• Condition：New
• Power：10watt, 20watt, 30watt,50watt
• Export Markets：Global
• Engraving Machine Type：Laser Engraving Machine
• Laser Type：Fiber Laser
• Current：AC
• Usage：Metel, Plastic
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：DP
• Origin：Shenzhen, China
• HS Code：84561000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. YLP-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model No. Ylp-20 Series Certification SGS, Ce Control Automatic Condition New Power 10watt, 20watt, 30watt,50watt Export Markets Global Engraving Machine Type Laser Engraving Machine Laser Type Fiber Laser Current AC Usage Metel, Plastic Transport Package Wooden Box Specification CE, SGS Trademark DP Origin Shenzhen, China HS Code 84561000 Production Capacity 3000 Sets/Year

Product Description

Black Marking,Color Marking,Depth Engraving,Thin Metals Cutting


YLP-20

YLP-20 SERIES is our most compact Fiber laser engraving machine and ideal for manufacturers and mid-large business.


Model	YLP-15/20/30/50
Laser Power:	10W,20W,30W,50w
Wavelenth:	1064nm
Standard Marking Area:	110mm*110mm
Optional Marking Area:	160mm*160mm,200mm*200mm, 300mm*300mm
Minimum Line Width	0.02mm
Minimum letter	English: 0.2 x 0.2mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.002
Beam Quality	M2:1.2~1.8
Electrical Requirements:	Ac220V±10%.50HZ.5Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<0.6kw
Operational Temp Range	10-40C
Operational Humidity Range	5%-75%, Non-condensing
Warranty:	2 years on laser source
Dimensions:	790*1050*1660mm
Net Weight	130KG

Features:

Easy to Use Automation Features	Sharp, High Contrast, Impact Free	High Speed Galvo Steering
Compact & Fast Set-Up	100,000 Hrs Laser Lifetime	2 Year Warranty
Turnkey System	Permanant Marking	Air Cooled/No Chiller needed
Tunable Pulse Rate	No routine maintenance/No Consumable	Digital I/O for Easy Operation
Red Aiming Pointer/No more mistakes	Solid Aluminum Top Work Surface & Swing Arm Laptop Stand	Portable Tabletop Units to Automated Production Systems Available

Software:


True Type Fonts	Single Stroke Fonts	Elliptical Text
Sequential Serial Numbers	Customizable Auto Dating	Barcodes
QR Codes and Data Matrix	UID Wizard	Logos
Photo Quality Images - JPG, TIF, GIF	Corel Draw, Adobe Illustrator	Raster Graphics
Vector Graphics	CAD Files

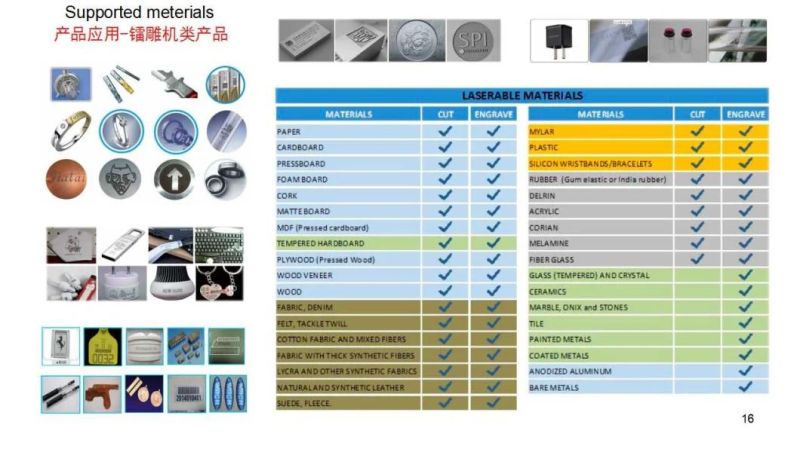

Materials:


Stainless Steel	Steel	Aluminum, Carbide
Nickel	Titanium	Cast Iron
Chrome	Painted Metal Alloys	Multi-Coated Metals
Plastics/Rubber	Backlit Buttons	Polycarbonate
PVC	Composites	Many more materials


Parts available:


Laser sources and spare parts FOR the laser machine manufacturers.
