Automatically Rotary Laser Marking Solution for Metal Mark Engraving

CKD LASER CO., LTD
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Solid Laser

Base Info

  • Model NO.：CKD-RMLF-20,30,50
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Function：Batch Automatically Marking
  • Computer：Built-in, English Language
  • Material：Metal and Some Non-Metal
  • Marking Scope：Optional: 100*100,150*150,200*200mm
  • Warranty：2 Years for The Laser Source, 1 Year for Other
  • Shipping Time：5-10 Work Days After Payment
  • Transport Package：Wooden Box of Rotary Laser Machine
  • Specification：CE passed, Europe, Asia, America Standard
  • Trademark：CKD LASER
  • Origin：Shenzhen, China
  • HS Code：8486204900
  • Production Capacity：200 Set,Month

Description

 Computer language: English as basic, you can choose your language after receiving.Marking SoftwareEzCadLanguage: English, Chinese, Korean, Japanese Control BoardBJJCZOriginal newest version GalvonameterDigital scaneheadSpeed: 1-2000/1-4000/1-7000/1-10000 Rotary TWO or FOUR stations CDwithstandard attchment, every type withwith marking software insideTraining videowithsend traning video link after receiving machine Focusing toolswithTwo or three (optional)help you find right focus easily, standard attchment, every type with
TECH PARAMETERS
ParametersUnitDataDataData
Type CKD-RMLT-20CKD-RMLT-30CKD-RMLT-50
Laser Average Output PowerW21±131±151±1
Laser Type Fiber LaserFiber LaserFiber Laser
Central Wavelengthnm106410641064
Repetition FrequencyKHz20-8030-8050-100
Beam QualityM2<1.6<1.6<1.6
Focus Spot Diametermm<0.01<0.01<0.01
Max. Power of Single Pulsemj1±0.05@20KHz1±0.05@30KHz1±0.05@30KHz
Life-span of Fiber Laser Modulehrs≥100,000≥100,000≥100,000
Marking Speed of Single Linemm/s<9000<9000<9000
Temperature of Operation EnvironmentºC0-400-400-40
Cooling Mode Air CoolingAir CoolingAir Cooling
Control board and software EzCad2EzCad2EzCad2
Computer Operation System Windows 7/8/10Windows 7/8/10Windows 7/8/10
Computer Requested ChoosableChoosableChoosable
Power Source Requirement 90-240V/50-60Hz/2KVA90-240V/50-60Hz/2KVA90-240V/50-60Hz/2KVA

ADVANTAGE
* Multi material mark, metal and non-metal.
* Muil funstion, can mark series number, logo, Bar code, QR and so on.
* Can add expand axis, such as rotary and so on.
* Fast speed, improve work effeciency.
* Support more marking scope, 100*100/150*150/200*200/220*220mm.
* Buit-in computer, easy operation.
* Easy moving, table with omni-directional wheels.
Automatically Rotary Laser Marking Solution for Metal Mark Engraving

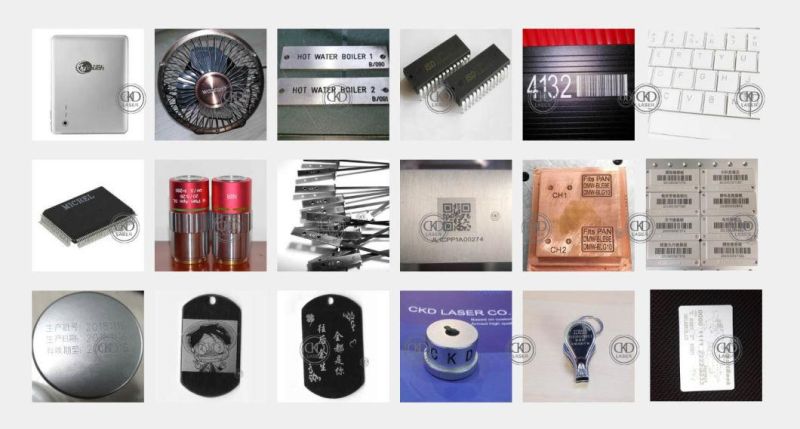

MARKING SAMPLES SHOW
Automatically Rotary Laser Marking Solution for Metal Mark Engraving

PACKING & SHIPPING
Automatically Rotary Laser Marking Solution for Metal Mark Engraving
* SAFETY PROTECTIVE INNER PACKING
* WOODEN BOX OUTSIDE PACKING
* Shipping by air, by sea, by car, by train and by combined transport, send to all over the world
