• Model NO.：LF20F
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Name：PVC Pipe Laser Machine
• Application：PVC,PPR Pipe
• System Language：English
• Cooling：Air
• Pulse Frequency：20 kHz - 100 kHz
• Marking Range：110 mm X 110 mm (Can Be Customized)
• Standard Package：Wooden Case
• Transport Package：Wooden Case with Foam
• Specification：155X55X56cm
• Trademark：CYCJET
• Origin：Shanghai
• HS Code：8456110090
• Production Capacity：300units,Month

Basic Info.

Model NO. LF20F Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Name PVC Pipe Laser Machine Application PVC/PPR Pipe System Language English Cooling Air Pulse Frequency 20 kHz - 100 kHz Marking Range 110 mm X 110 mm (Can Be Customized) Standard Package Wooden Case Transport Package Wooden Case with Foam Specification 155X55X56cm Trademark CYCJET Origin Shanghai HS Code 8456110090 Production Capacity 300units/Month

Product Description

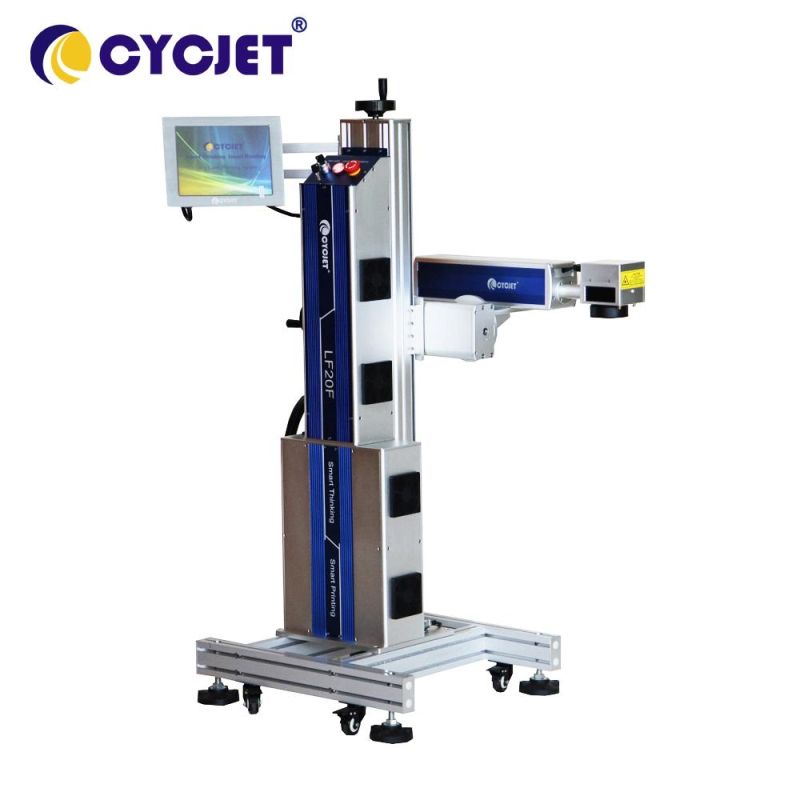

Product Picture:

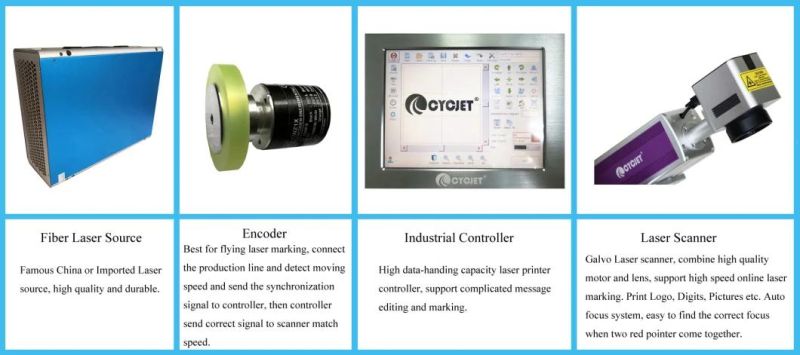

Components of Machine:



Application Scope:



Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.

Parameters:
Laser Device: Fiber
Output Power: 10/20/30/50W
Beam quality M2: <2
Laser wavelength: 1064 nm
Air cooling
Pulse frequency: 20 KHZ - 100 KHZ
Marking range:
110 mm x 110 mm (can be customized)
MarkingSpeed:7000mm/s
Marking Depth: ≤0.3mm
Marking Line Width: 0.01-0.2mm (based on difference material)
Min character Size: 0.015mm.
Repeat accuracy: + / - 0.003 mm
Marking area locating: Red-light locating system.
Power supply:
AC 100-260 v 50/60 hz
Power: ≤800W
