Mixed CO2 150W 180W Laser Cutting Machine for Stainless and Acrylic MDF

Jinan Starma Intelligent Tech Co., Ltd.
  • After-sales Service：18hour Per Day
  • Warranty：1 Year
  • Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Metal and Nonmetal

Base Info

  • Structure Type：Desktop
  • Laser Classification：Free Electron Laser
  • Laser Technology：Laser Control Fault Cutting
  • Name：Laser Cutting Machine
  • Function：Engraving and Cutting
  • Laser Tube Brand：Reci, Weiju, Efr, Yongli
  • Laser Power：150W, 180W
  • Control System：Rd6332
  • Motor and Driver：Stepper Motor
  • Cooling：Water Chiller Cw5200
  • Table：Blade Table
  • Guide Way：Taiwan Hiwin Square Rails
  • Lens：Singapore Imported
  • Exhaust Fan：750W
  • Auto Focus：Add Auto Adjust Focus Device
  • Machine Control：Panel Ontrol
  • Min. Shaping Character：2.0mm, English:1.0mm
  • Suitable Material：Stailess Steel, Carbon Steel, and All Nonmetal
  • Transport Package：Starndard Export Plywood Case
  • Specification：1300x900mm
  • Trademark：STARMACNC
  • Origin：China
  • HS Code：8456110090
  • Production Capacity：100 Sets Per Month

Description

SM-B1390Engraving Area (mm)W*L1300*900mmLaser tube power130-150w ; 150-180w  (Bigger power is 280w and 300w)Laser TypeCO2 sealed laser tube RECI brand(Yongli can option)Engraving Speed0-64000mm/minCutting Speed0-36000mm/minResetting positioning accuracy≤±0.01mmLaser Output1-100%software settingCooling modeCirculating-water-cooling and protection systemMachine control and driveSpeedy controlling, stepper motorCutting PlatformBlade (Knife) tableMin. shaping characterCharacter 2.0mm×2.0mm,English1.0mm×1.0mmPower SupplyAC220V 50HZOperating systemoff-line control systemDictate format*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc.Operating Temperature5°C-40°COperating Humidity5-95%(Free of Condensed Water)Compatible SoftwareCorelDraw ,AutoCAD transmit directlyOptional Spare PartsRotary system, Industrial Chiller, Infrared Locating System,Laser Tube, Up-down tableConsumable Spare PartsLaser Tube and laser lens600*400mm,600*900mm,1300*900mm,1300*1000mm,1300*1300mm,
1300*1800mm,1300*2500mm,1600*1000mm,1600*2000mm,
1600*3000mm,1800*1000mm and other customized
Other Specifications:Laser typeCO2 laser tube,RECI brand (Yongli and Weiju can option)Power supply110V / 220V/ 50-60HZMin. shaping characterEnglish 1 x 1 mmGraphic format supportedBMP, PLT, DST, DXF, AISoftware supportedCorelDraw, PhotoShop,AutoCAD,TAJIMALocation precision: less than 0.02mmApplicable materialStainless steel, carbon steel and all nonmetal
Engraving and Cutting Nometal Materials(Only for reference)Laser tube Power50w60w80w100w130w150w280wWood3mm5mm6mm8mm12mm15mm24mmMDF1mm2mm2.5mm4mm5mm7mm17mmPlywood3mm5mm6mm8mm12mm15mm24mmPlastic2mm4mm5mm8mm10mm15mm24mmRubber1mm1.5mm2mm3mm4mm5mm10mmAcrylic4mm6mm8mm10mm15mm17mm26mm

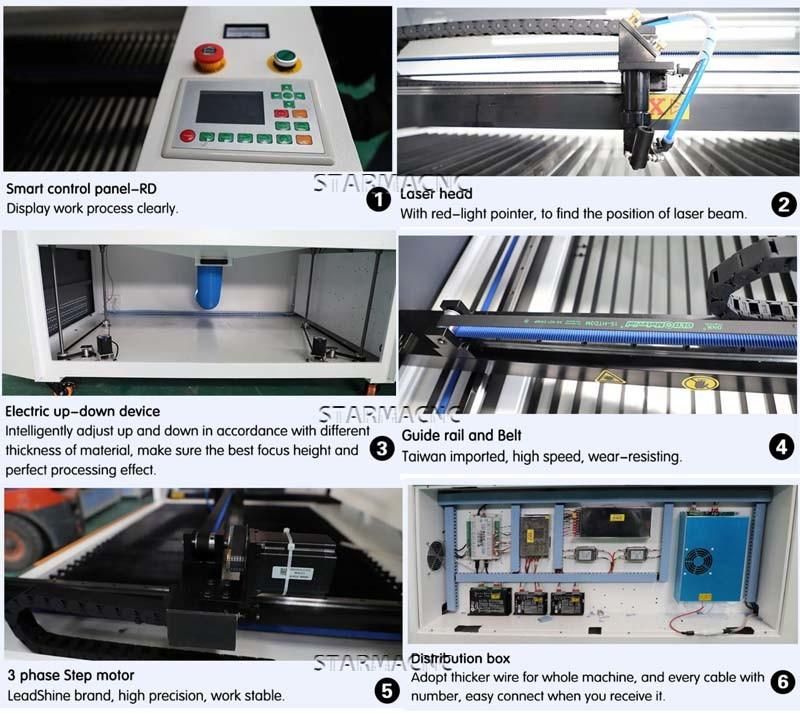

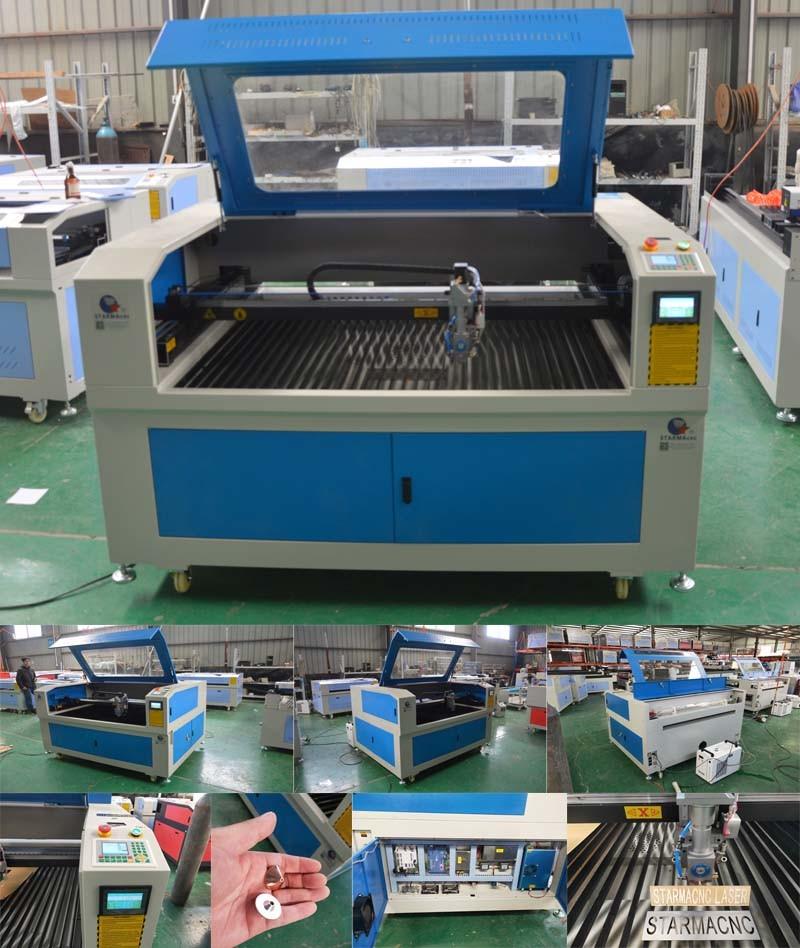

Machine picture in workshop and parts:
Mixed CO2 150W 180W Laser Cutting Machine for Stainless and Acrylic MDF
Mixed CO2 150W 180W Laser Cutting Machine for Stainless and Acrylic MDF

mixed co2 150w 180w laser cutting machine for stainless and acrylic mdf

Mixed CO2 150W 180W Laser Cutting Machine for Stainless and Acrylic MDF
Mixed CO2 150W 180W Laser Cutting Machine for Stainless and Acrylic MDF
Guarantee:
1.24 months guarantee of the whole machine
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the consumable parts at an agency price when you need replacement
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary

Payment terms:
T/T 30% payment for deposit, after the machine finished, we will take the testing videos for you to check the machine, after you satisfied the machine you pay the left 70% payment. Then we will delivery the machine.

After-sale service:
1. 24hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for machine (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life

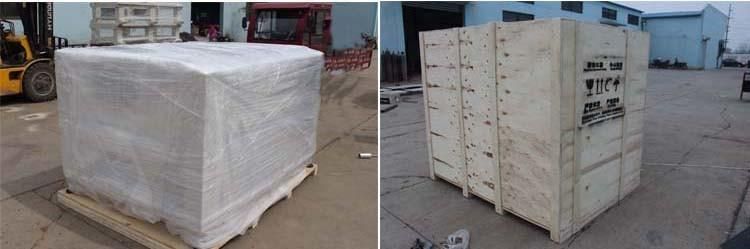

Packing and delivery:

DeliveryWithin 7 working days for production, we will arrange delivery after received the total paymentPackingFirstly, Packed the machine with plastic sheet for clearing and damp proofing.
Secondly, Then put the machine in the plywood case for safety and clashing.
Thirdly, Transport the plywood case into the container.Mixed CO2 150W 180W Laser Cutting Machine for Stainless and Acrylic MDF
mixed co2 150w 180w laser cutting machine for stainless and acrylic mdf

Company(OEM)production:

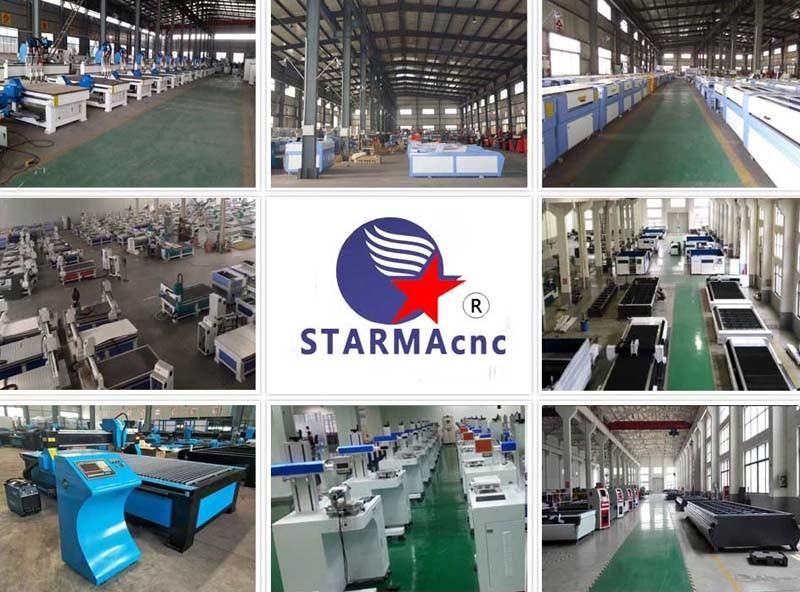

We are located in jinan City of China, a manufacturer of cnc router, cnc laser and plasma cutting machines.

STARMAcnc has over 58 employees and a factory with more than 10000 square meters. We has our own design and development department.At the same time created "STARMAcnc" brand.

Each product is strictly examined according to ISO9001 (QCS) and ISO14001 (EMS) standards before it is sent out of our factory. And up to CE &FDA &SGS certificate and win Alibaba good faith enterprise.STARMA persist on the mission of "supplying our customers with the best CNC&Laser equipments and solutions".

In us, TOP QUALITY&FIRST-RATE SERVICE IS OUR SOUL AND CULTURE! BELIEVE US AND CHOOSE US, YOU ARE RIGHT!

Mixed CO2 150W 180W Laser Cutting Machine for Stainless and Acrylic MDF
Mixed CO2 150W 180W Laser Cutting Machine for Stainless and Acrylic MDF
Mixed CO2 150W 180W Laser Cutting Machine for Stainless and Acrylic MDF

FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or whatsapp, wechat around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Question 6: How long of the delivery time?
For standard machines, it would be 7-10 workdays; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 25 workdays.
Question 7:I know nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what do you want to process by laser machine, then let us give you perfect solutions and suggestions.
1)Tell me your materials.
2)The Max size of your material:___mm*___mm
3)You want to engrave or cut? If cut, what's the MAX cutting thickness?
Question 8:Are you factory or trade? Where are you located?
We are professional manufacture since 2010. And we are located in Fujia industril park,No 10,Licheng district,jinan city,shandong,china.

Wamly welcome you vist us any time!
