• Model NO.：VLF1530GR
• Structure Type：Desktop
• Laser Classification：Free Electron Laser
• Laser Technology：Laser Vapor Cutting
• Laser：Fiber Laser
• Transport Package：Wooden Box
• Specification：VRW1325 1530 2030
• Trademark：VMADECNC
• Origin：China
• HS Code：8456110090
• Production Capacity：1000 Sets Per Year

echnical Parameters1000W 2000W 3000W 4000W 6000W(Optional)Dimensions9500*3760*2520mm11500*4260*2520mm14140*5015*2520mmWorking area3000mm*1500mm4000mm*2000mm6000mm*2500mmRepeat positioning accuracy±0.02mmMaximum speed120m/minMax. acceleration1.5GVoltage and frequency380V 50Hz/60HZ

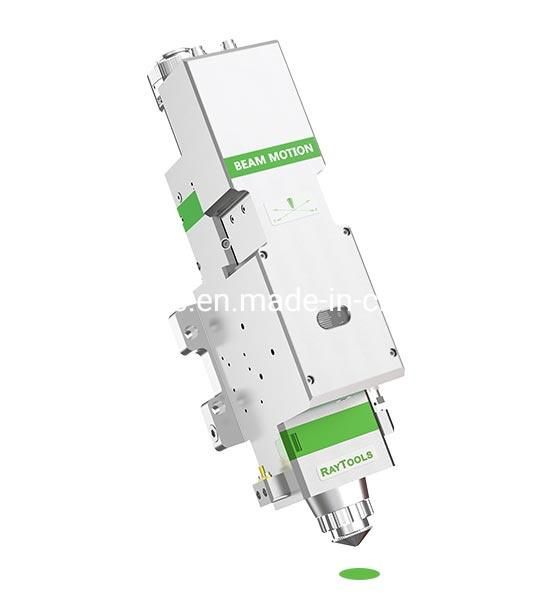

Auto Focus Laser Cutting Head

• Without Manual Focusing

  The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

• Bigger Adjustment Range

  Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

• Long Service Life

  Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

12000W IPG Fiber Lasers Source

• World Famous Brand

  GWEIKE laser cutting machine YLS-CUT series high power fiber laser of IPG. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm.

• Long Service Life

  The world leading IPG laser has stable performance, the service life can reach 100000 hours, and the overall quality of the equipment can be guaranteed safely.

• Stable Cutting Performance

  Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.

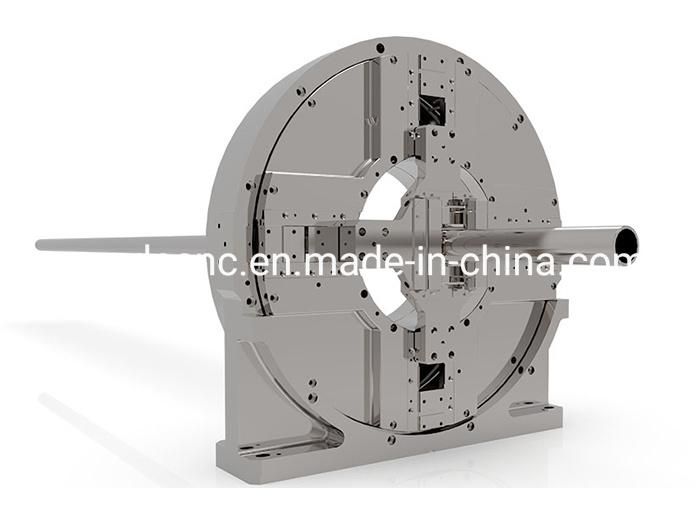

Clamp Design

• It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.

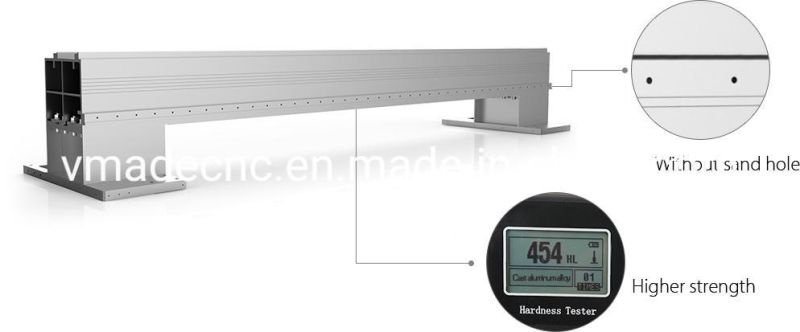

The Third Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

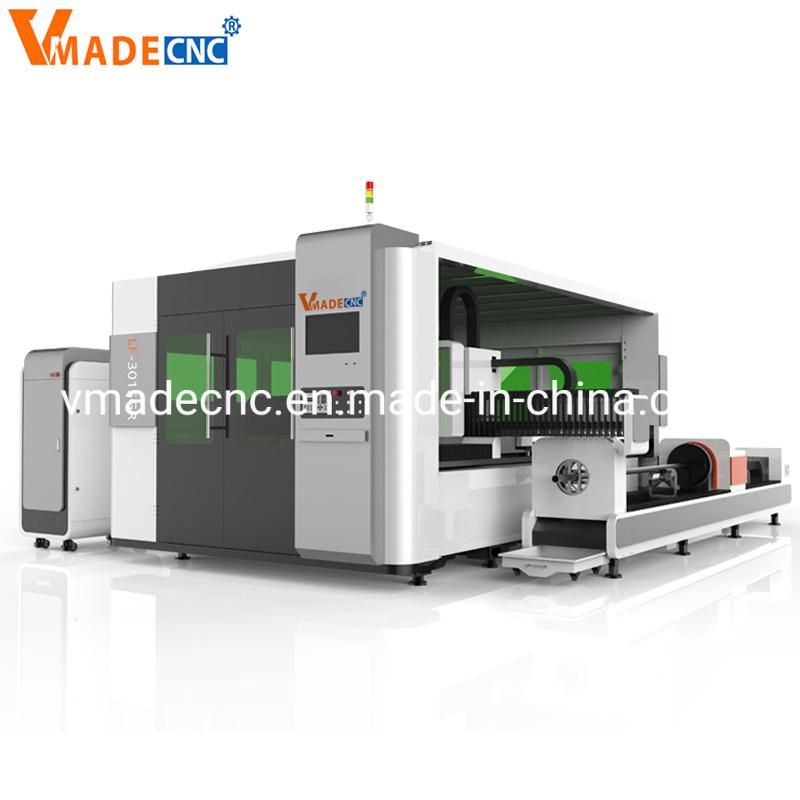

Dual Use And Cost-saving

 VMADE GR series fiber laser cutting machine can not only cut metal plates,but also metal pipes. It has many uses and can save the space of more than 50%,which effectively improve productivity.

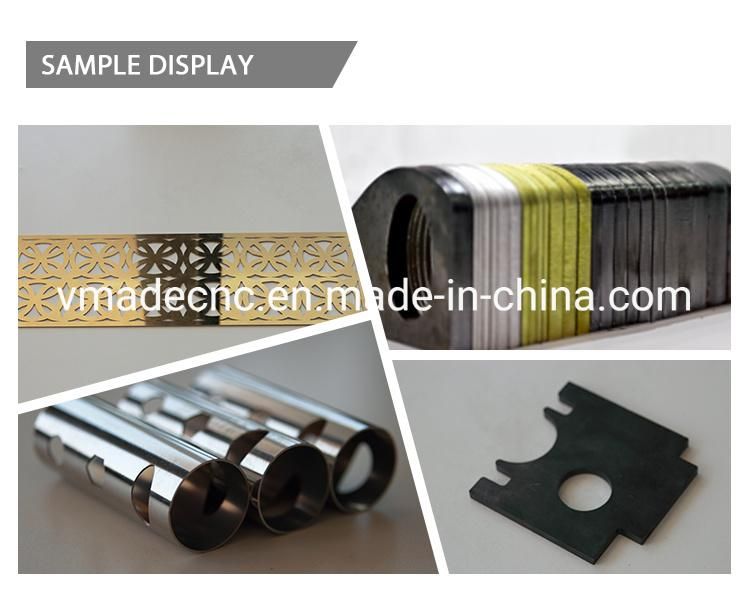

Industry Applications

GAR fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

RFQ  :
1.Which fiber source does VMADE CNC applied?
IPG - Made in USA.
Raycus- Made in China;
2.What's the different from fiber laser, YAG laser and CO2 laser working on metal material?

	Fiber laser	YAG laser	CO2 laser
Beam quality	Best	Good	Poor
Speed	Fast	Slow	Slow
Electrical efficiency	High	Common	Low
Reliability	Best	Good	Poor
Maintenance	Free	Complex	Difficult
Remote processing	Free	Complex	Difficult
Initial investment	High	Common	Low

3.What's the function of fiber laser?
Fiber Laser is only used to cut metals like Stainless Steel, Carbon/Mild Steel, Galvanized Steel, etc. Non-metal is not OK.
4.What is VMADE CNC  Fiber laser advantages?
>Excellent beam quality (light-concentrating beam from optical fiber)
>Simple , compact, electrically and optically efficient (small footprint and low power consumption by fiber amplification)
>Compatibly powerful and reliable (realized by high brightness, high power semiconductor lasers as pumping light)
>Maintenance free (the entire optical fiber setups without lenses, mirrors)
>multilingual, more than 11 foreign languages
>3 years warranty.

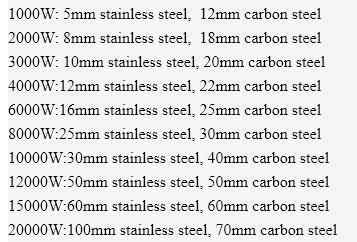

5. What's the max. cutting thickness?
