3040 CO2 40W 60W Mini Hobby Laser Engraving Cutting Machine
Jinan Lansen Laser Equipment Co., Ltd.- After-sales Service：Online Service
- Warranty：2 Years
- Application：Leather Industry, Printing & Packaging, Molds & Dies, Crafts Industr, Advertising Industry, Home Use
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Automatic Grade：Automatic
Base Info
- Model NO.：LM3040
- Applicable Material：Nonmetal
- Type：Oscillating Mirror
- Laser Classification：Gaseous Laser
- Engraving Method：Vector Engraving
- Worktable：Standard with Honeycomb Worktble
- Power Supply：220V,50Hz, 110V,60Hz
- Control System：High Speed DSP Control System Brand Ruida or Leetr
- Machine Work Software：Laser Cut 5.3 (Leetro), Rdworks V8 (Ruida)
- Driving System：Stepper
- Plywood Gross Weight：80kgs
- Transport Package：Wooden Boxes
- Specification：900mm*710mm*980mm
- Trademark：Lansen
- Origin：China
- HS Code：8456110090
Description
LM3040
Working area
300mm*450mm / 11.81in*17.71in (L*W)
Laser power
40w 60w
Laser type
CO2 sealed laser tube, water-cooled
Worktable
Standard with Honeycomb worktble
Engraving speed
0-50000mm/min
Cutting speed
0-30000mm/min
Highest scanning precision
2500DPI
Power supply
220v/50Hz , 110v/60Hz
Min. shaping character
English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported
BMP, PLT, DST, DXF, AI
Software supported
CorelDraw, PhotoShop, AutoCAD,TAJIMA
Control system
High speed DSP control system brand Ruida or Leetro
Machine work software
Laser cut 5.3 (Leetro)/ RDWorks V8 (Ruida)
Laser output control
1-100% by setting in the software
Interface
USB 2.0
Driving system
Stepper
Color separation
Yes
Optional part
Red dot pointer
Spare parts
Extra laser tube/Extra 1 lens and 3 mirrors
Machine size
900mm*710mm*980mm
Plywood gross weight
80kgs

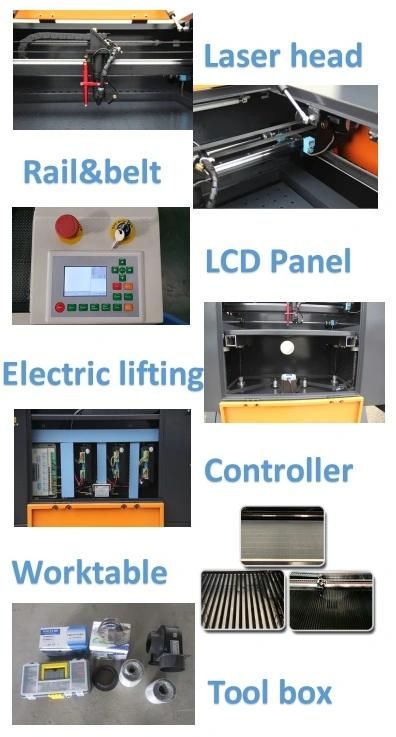

Feature:
- DSP offline control system with USB interface. It accepts all major graphics formats via USB connection and work without computer.
- High working speed. A. It stops high performance motor, guarantee high working speed, B. Optional square X, Y rails, which can improve speed and stability, max speed could get up to 1200mm/s.
- Motorized up-down honeycomb worktable. 15cm adjustable by motor, allows thick object to put inside.
- Portable to move. Small size but with large workarea, more convenient to move.
Appilcations:Applicator Industries:
Suitable to industries such as artistic gifts, crystal ornaments, paper-cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration and frame fabrication, ect.
Applicable Materials:
Non mental material such as double color sheets, acrylic, glass, wood planks, paper, leather, rubber, marble, granite and titles, glass, cloth, paper ect.
Package & delievery:
About us:
FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?
Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set
Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.
Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
